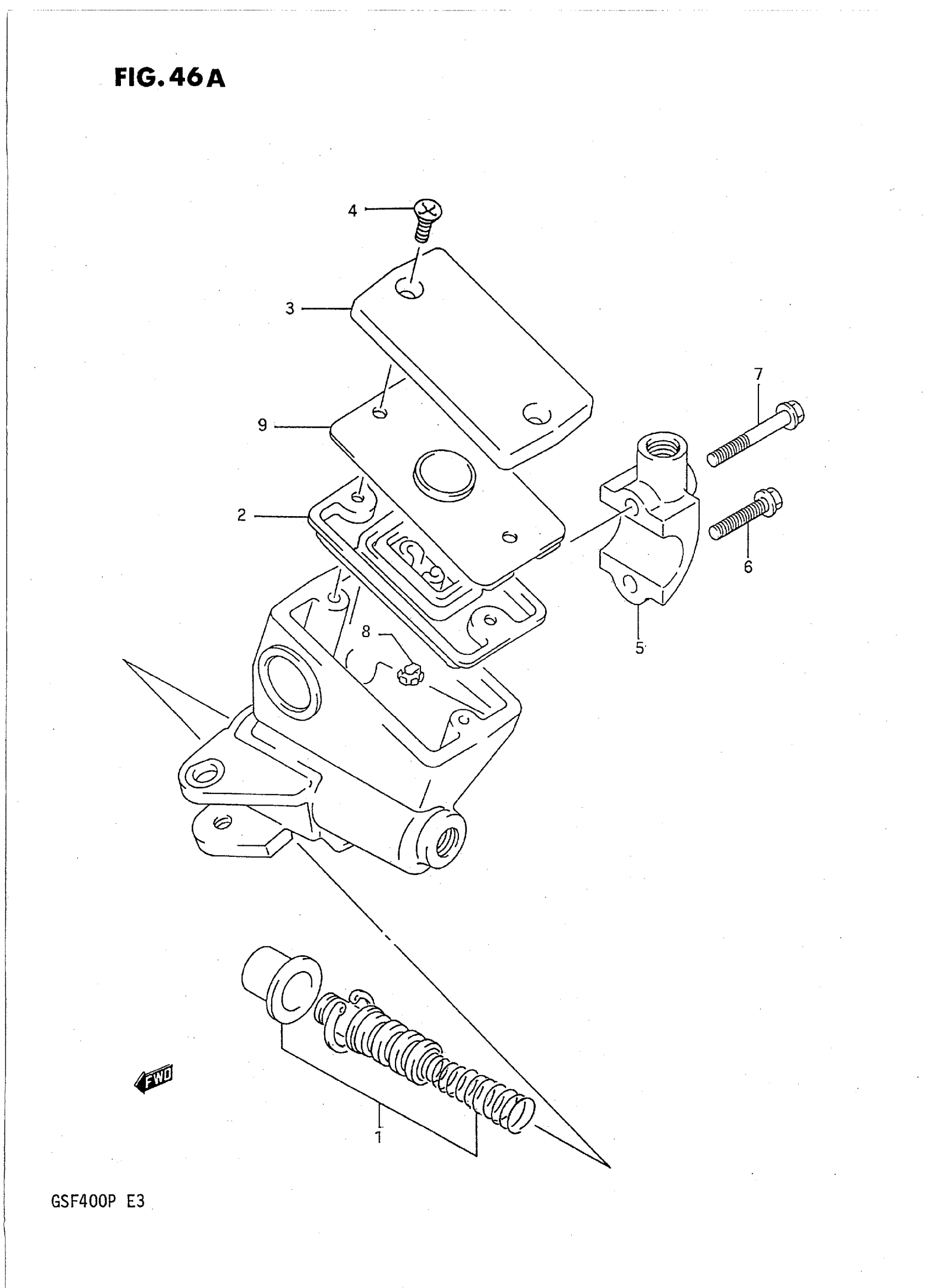

Suzuki GSF400P (1993) FRONT MASTER CYLINDER (MODEL P) Diagram

#

Description
Price

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 1 - 9

59600-45C10

$324.81

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$41.38

2

DIAPHRAGM

59667-49460

$8.95

3

CAP

59669-41C00

$30.66

4

SCREW

69689-49300

$1.81

5

HOLDER

59671-44300

$19.60

6

BOLT HOLDER SET

59675-19C00

$4.53

7

BOLT (6X38)

59675-19C10

$5.28

8

PROTECTOR

59664-48B00

$12.43

9

PLATE

59668-41C00

$8.54
