Description

Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 13 This part replaces 69100-05C12.

69100-05C13

Unavailable

1

PISTON SET This part replaces 69100-32810.

69100-05851

$58.04

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.68

3

BOOT

69108-32B00

$27.81

4

SEAL

69107-34200

$10.25

5

PAD SET This part replaces 69130-06B00.

69100-06810

Unavailable

6

BOLT

59145-16700

$9.97

7

SPRING

59143-16700

$5.54

8

PIN

69141-45000

$5.09

9

.CLIP, PAD PIN

69142-45000

$4.15

10

COVER

59151-16701

$13.15

11

BLEEDER

59121-18410

$8.35

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.94

13

SHIM

59371-33410

$16.68

14

BOLT This part replaces 01517-08304.

01550-0830A

$2.82

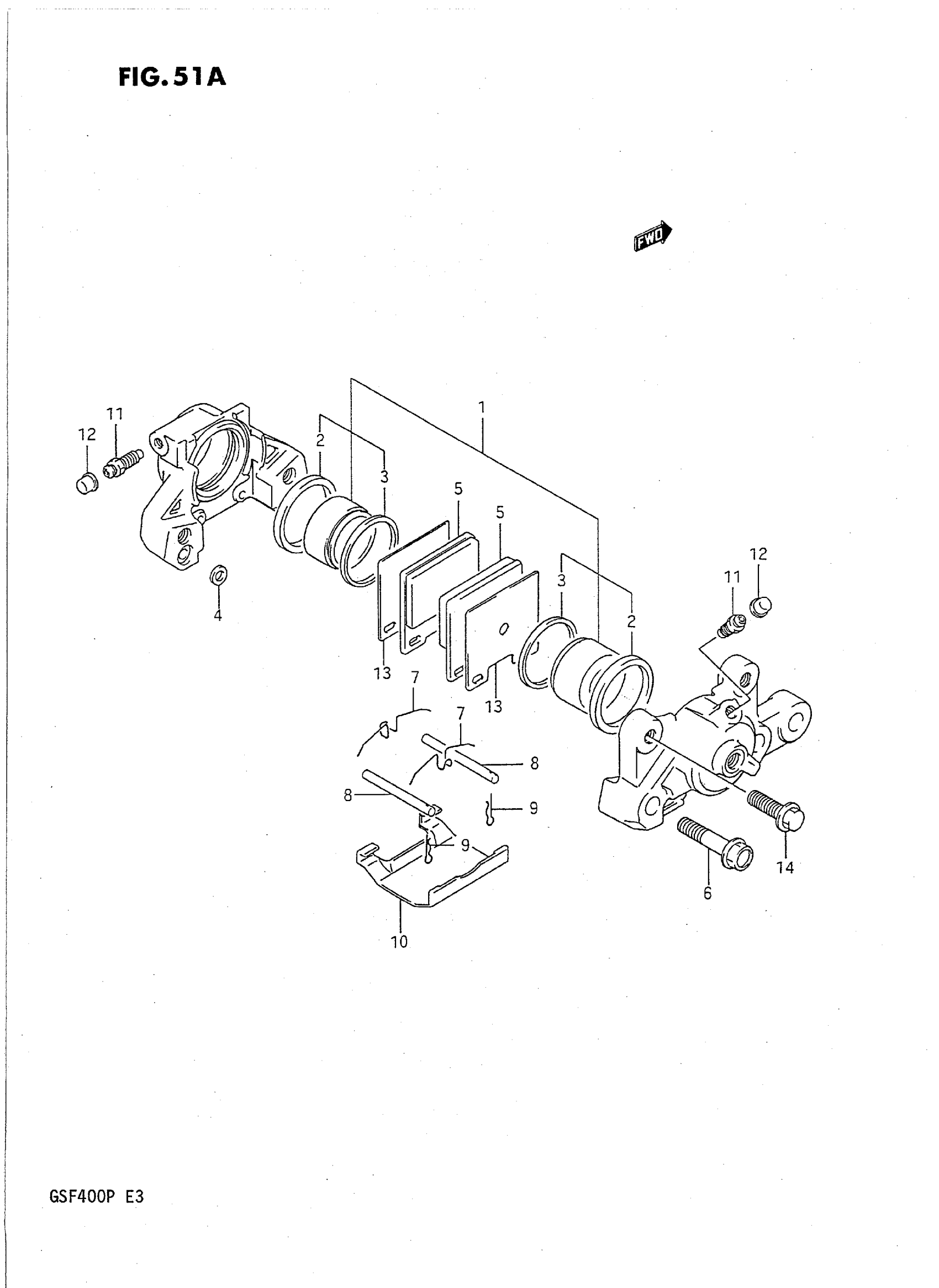

Suzuki GSF400P (1993) REAR CALIPER (MODEL P) Diagram
