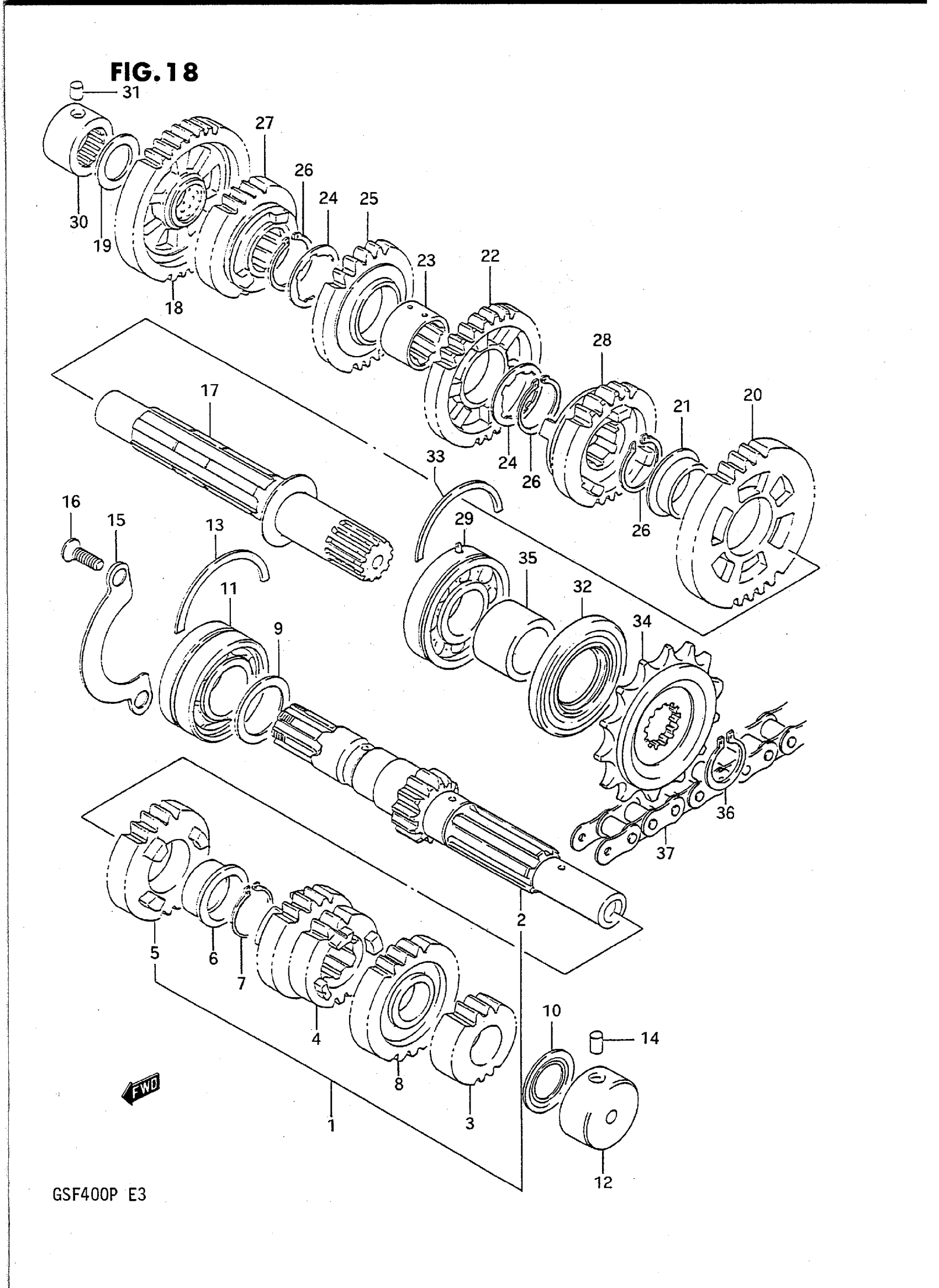

Find the part on the Transmission diagram for your 1993 Suzuki GSF400P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSF400P Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT | MODEL M/N

24120-32C00

1
Out of stock

1

COUNTERSHAFT | MODEL P; Includes Item(s) 2 - 9

24120-34C00

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 24121-30B01.

24121-30B02

1
Out of stock

3

GEAR,2ND DRIVE This part replaces 24221-30B00.

24221-30B01

1
Out of stock

4

GEAR, 3RD/4TH DRIVE

24231-32C02

1
Out of stock

5

GEAR, 5TH DRIVE (NT:24)

24251-32C01

1
Out of stock

6

BUSH

09301-22003

1
Out of stock

7

CIRCLIP This part replaces 08331-31226.

08331-31229

1
Out of stock

8

GEAR, 6TH DRIVE (NT:20) | MODEL M/N

24260-32C00

1
Out of stock

8

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 24260-34C00.

24260-34C10

1
Out of stock

9

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

1
Out of stock

10

OIL SEAL

09285-17003

1
Out of stock

11

BEARING (25X52X20.6)

09267-25008

1
Out of stock

12

BEARING

09263-17044

1
Out of stock

13

C RING

09390-58001

1
Out of stock

14

PIN

04221-07129

1
Out of stock

15

RETAINER

24741-38401

1
Out of stock

16

SCREW

02122-06167

2
Out of stock

17

SHAFT, DRIVE

24131-32C00

1
Out of stock

18

GEAR,1ST DRIVEN This part replaces 24310-30B00.

24310-33C00

1
Out of stock

19

WASHER, SEC DRIVEN This part replaces 08211-20321.

09181-20223

1
Out of stock

20

GEAR, 2ND DRIVEN (NT:30)

24321-30B00

1
Out of stock

21

BUSH

09301-25002

1
Out of stock

22

GEAR, 3RD DRIVEN (NT:28)

24331-30B00

1
Out of stock

23

SPACER, 3RD DRIVEN GEAR

24332-30B00

1
Out of stock

24

WASHER

09167-25022

2
Out of stock

25

NO DESCRIPTION AVAILABLE This part replaces 24341-30B00.

24341-30B01

1
Out of stock

26

SNAP RING

09380-25003

3
Out of stock

27

GEAR, 5TH DRIVEN (NT:30)

24351-32C01

1
Out of stock

28

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 24361-32C01.

24361-32C02

1
Out of stock

28

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 24361-34C01.

24361-34C11

1
Out of stock

29

BEARING (22X56X16) This part replaces 09262-22017.

09262-22028

1
Out of stock

30

BEARING (20X34X20)

09263-20040

1
Out of stock

31

PIN

04221-07129

1
Out of stock

32

OIL SEAL (30X56X6)

09283-30044

1
Out of stock

33

C RING

09390-56001

1
Out of stock

34

SPROCKET,ENGINE This part replaces 27510-32C00.

27510-32C01

1
Out of stock

35

SPACER (22X30X21.4)

09180-22043

1
Out of stock

36

CIRCLIP This part replaces 08331-31226.

08331-31229

1
Out of stock

37

CHAIN,DRIVE 114 This part replaces 27600-32C10-114.

27600-32C90-114

1
Out of stock
