2009 Suzuki GSF1250S Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2009 Suzuki GSF1250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

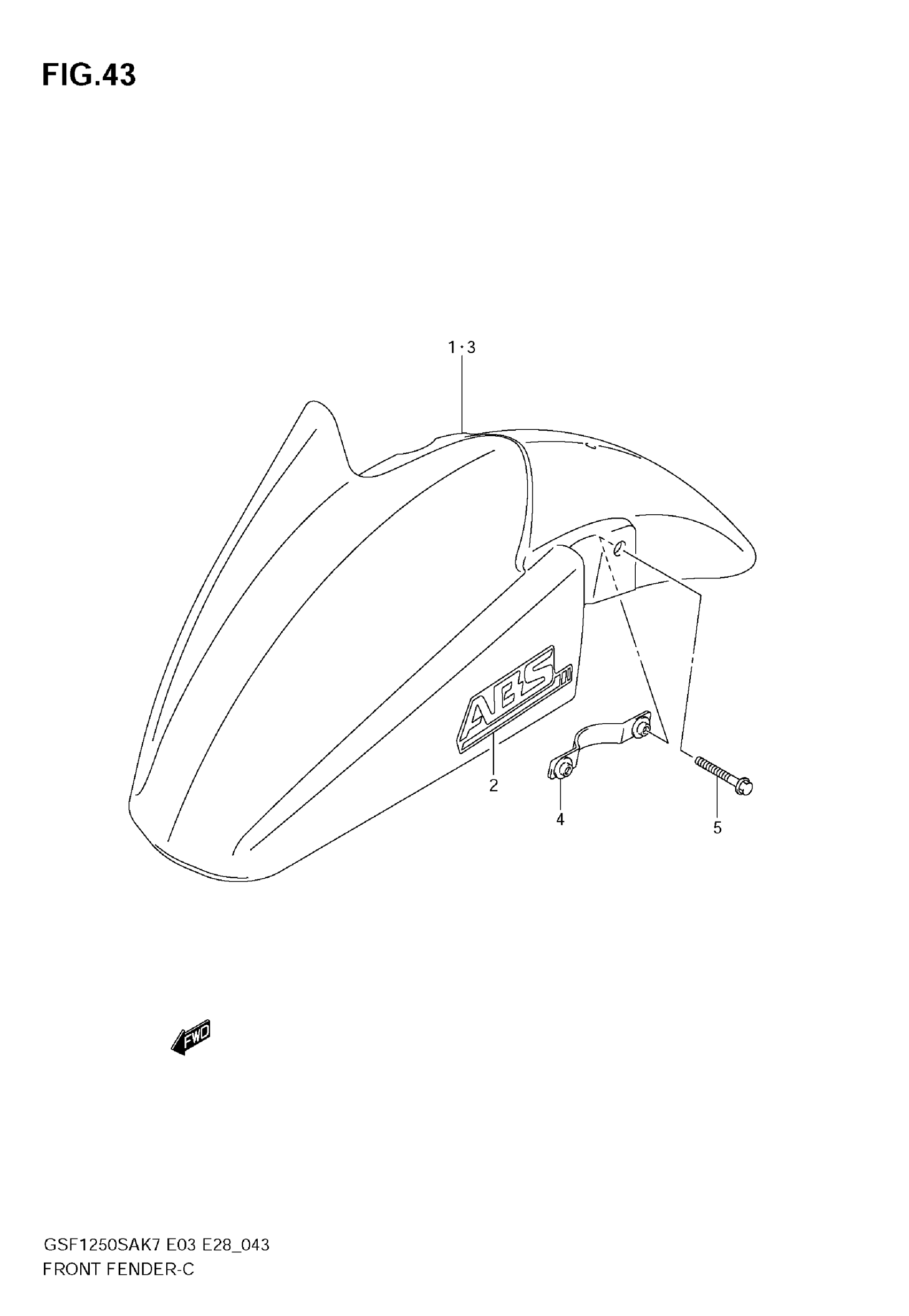

2009 Suzuki GSF1250S Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER,FR(BLACK | GSF1250SA This part replaces 53110-38G01-YAY.

53110-38G02-YAY

1
Out of stock

1

FENDER,FR(RED) | GSF1250SAK7/SAK8 This part replaces 53110-38G01-YHL.

53110-38G02-YHL

1
Out of stock

1

FENDER,FR(BLUE) | GSF1250SAK7 This part replaces 53110-38G01-YLE.

53110-38G02-YLE

1
Out of stock

1

FENDER, FRONT (BLUE) | GSF1250SAK8

53110-38G01-YBA

—
Out of stock

1

FENDER, FRONT (GRAY) | GSF1250SAK8/SAK9

53110-38G01-YHG

—
Out of stock

1

FENDER, FRONT (BLUE) | GSF1250SAK9

53110-38G01-YKZ

1
Out of stock

1

FENDER, FRONT (RED) | GSF1250SAK9; Includes Item(s) 2 - 2

53110-38G01-YMK

—
Out of stock

2

EMBLEM,"ABS" | GSF1250SA This part replaces 68151-38G00-Y4P.

68151-38G01-Y4P

2
Out of stock

2

EMBLEM, "ABS" | GSF1250SAK8/SAK9 FOR YHG

68151-38G00-YAD

2
Out of stock

3

FENDER, FRONT (BLACK) | GSF1250S

53111-38G01-YAY

1
Out of stock

3

FENDER, FRONT (RED) | GSF1250SK7/SK8

53111-38G01-YHL

1
Out of stock

3

FENDER, FRONT (BLUE) | GSF1250SK7

53111-38G01-YLE

—
Out of stock

3

FENDER, FRONT (BLUE) | GSF1250SK8

53111-38G01-YBA

1
Out of stock

3

FENDER, FRONT (GRAY) | GSF1250SK8/SK9

53111-38G01-YHG

1
Out of stock

3

FENDER,FR(NON P | GSF1250SK9 This part replaces 53111-38G01-YKZ.

53111-38G01

1
Out of stock

3

FENDER, FRONT (RED) | GSF1250SK9

53111-38G01-YMK

—
Out of stock

4

PLATE, FENDER

53120-38G00

2
Out of stock

5

BOLT

09103-06214

4
Out of stock
