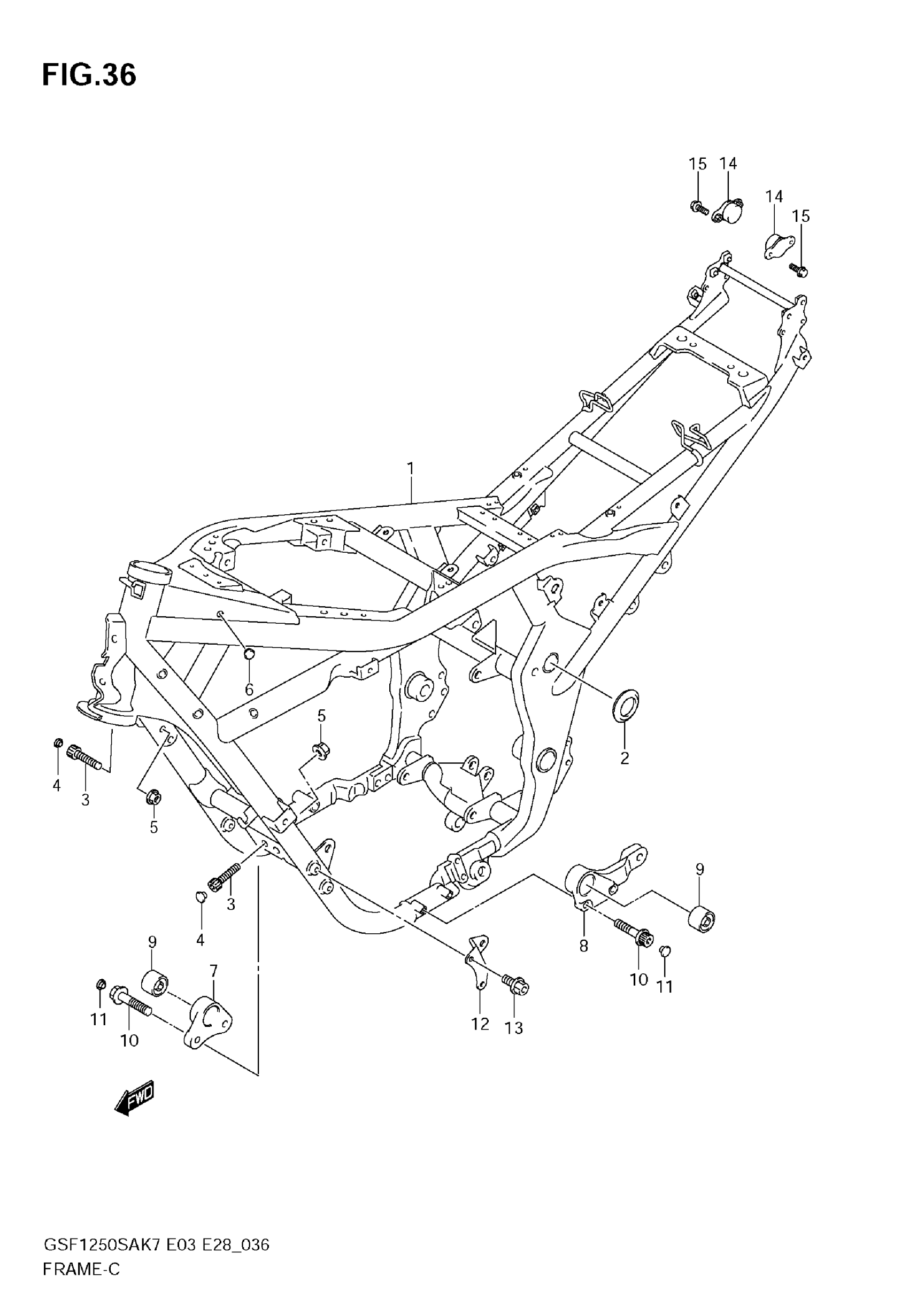

Find the part on the Frame diagram for your 2009 Suzuki GSF1250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSF1250S Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK) | FOR YAY,YHL

41100-18H00-YAP

1
Out of stock

1

FRAME (GRAY) | MODEL K7 FOR YLE

41100-18H00-YHG

1
Out of stock

1

FRAME (SILVER) | MODEL K8 FOR YHG

41100-18H00-YMD

1
Out of stock

2

CAP, FRAME PIVOT This part replaces 43585-38G00.

43585-38G01

2
Out of stock

3

BOLT (10X37)

09106-10068

6
Out of stock

4

CAP, RH

09250-08012

4
Out of stock

5

NUT

08319-3110B

6
Out of stock

6

CAP

09250-12014

2
Out of stock

7

BRACKET, MOUNT NO.2 RH

41931-18H00

1
Out of stock

8

BRACKET, MOUNT NO.2 LH

41941-18H00

1
Out of stock

9

BUSH

41932-27E50

2
Out of stock

10

BOLT

09106-08065

4
Out of stock

11

CAP This part replaces 09250-06008.

09250-06016

4
Out of stock

12

BRACKET, FRONT (BLACK) | FOR YAY,YHL

41942-18H00-YAP

1
Out of stock

12

BRACKET, FRONT (GRAY) | MODEL K7 FOR YLE

41942-18H00-YHG

—
Out of stock

12

BRACKET, FRONT (SILVER) | MODEL K8 FOR YHG

41942-18H00-YMD

1
Out of stock

12

BRACKET, FRONT (GRAY) | MODEL K8 FOR YBA

41942-18H00-YHG

—
Out of stock

13

BOLT

01550-0820A

4
Out of stock

14

DAMPER, FRAME REAR

42550-49G00

2
Out of stock

15

BOLT

01550-0612B

4
Out of stock
