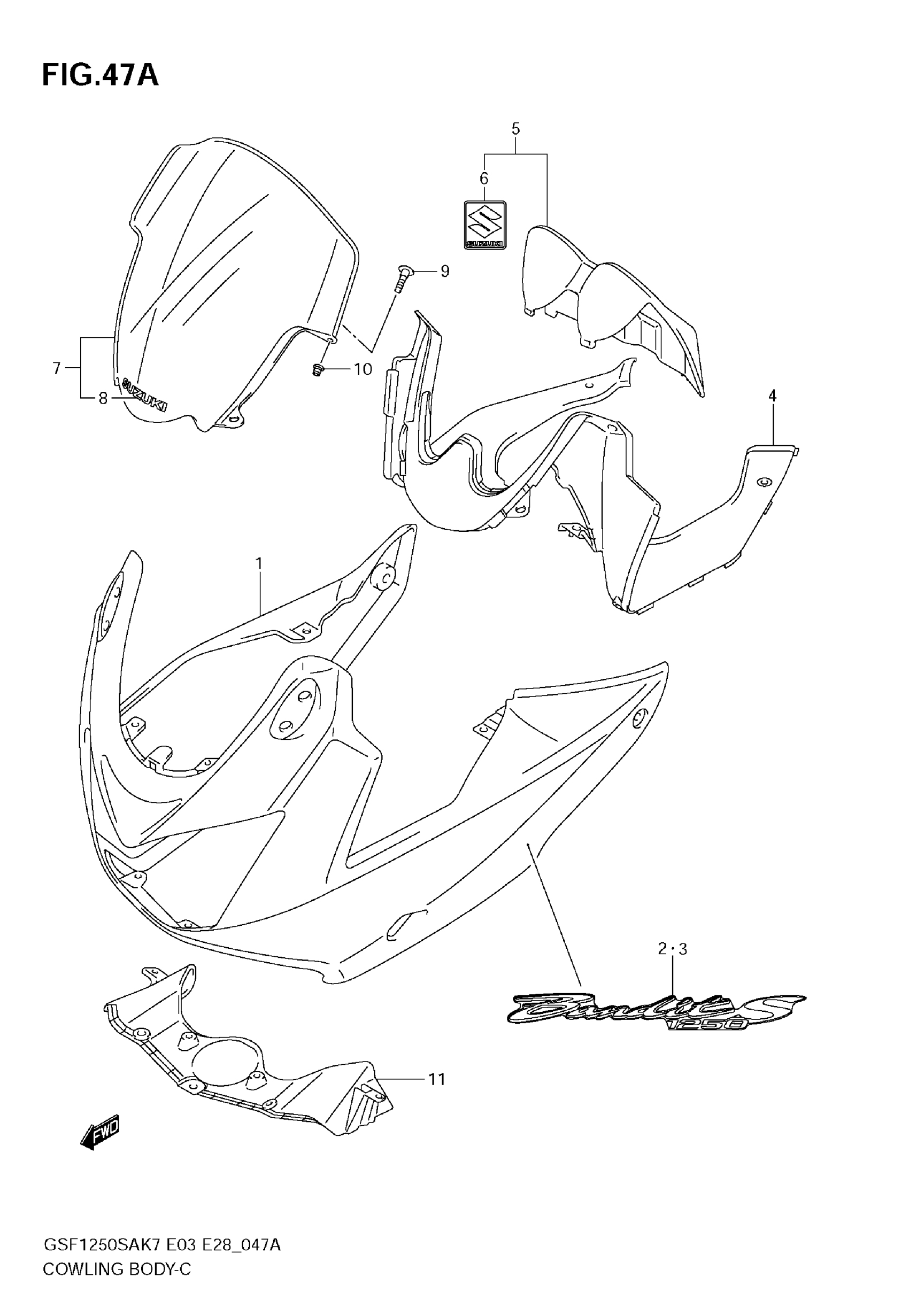

Suzuki GSF1250S (2009) COWLING (MODEL K8) Diagram

#

Description
Price

1

COWLING, BODY (BLACK) | FOR YAY

94410-18H01-4EX

Unavailable

1

COWLING, BODY (BLUE) | FOR YBA

94410-18H01-YBA

Unavailable

1

COWLING, BODY (GRAY) | FOR YHG

94410-18H01-YHG

Unavailable

1

COWLING, BODY (RED) | FOR YHL; Includes Item(s) 2 - 3

94410-18H01-5HX

Unavailable

2

EMBLEM, SIDE RH | FOR 4EX

68271-18H00-FFK

Unavailable

2

EMBLEM, SIDE RH | FOR YBA

68271-18H00-FFL

Unavailable

2

EMBLEM, SIDE RH | FOR YHG

68271-18H00-FFM

Unavailable

2

EMBLEM, SIDE RH | FOR 5HX

68271-18H00-FFN

Unavailable

3

EMBLEM, SIDE LH | FOR 4EX

68281-18H00-FFK

Unavailable

3

EMBLEM, SIDE LH | FOR YBA

68281-18H00-FFL

Unavailable

3

EMBLEM, SIDE LH | FOR YHG

68281-18H00-FFM

Unavailable

3

EMBLEM, SIDE LH | FOR 5HX

68281-18H00-FFN

Unavailable

4

PANEL, METER

94641-38G00

$191.33

5

LID, METER PANEL | Includes Item(s) 6

94650-38G00

Unavailable

6

EMBLEM

68281-35F00

$15.48

7

WINDSCREEN | Includes Item(s) 8 This part replaces 94610-38G00-YD8.

94610-38G01-YD8

$362.79

8

EMBLEM (SILVER)

68275-38G00-YD8

$27.03

9

SCREW

09139-05504

$3.38

10

NUT

09159-05048

$6.61

11

COVER, INNER

94461-38G00

$67.42
