2009 Suzuki GSF1250S Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2009 Suzuki GSF1250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

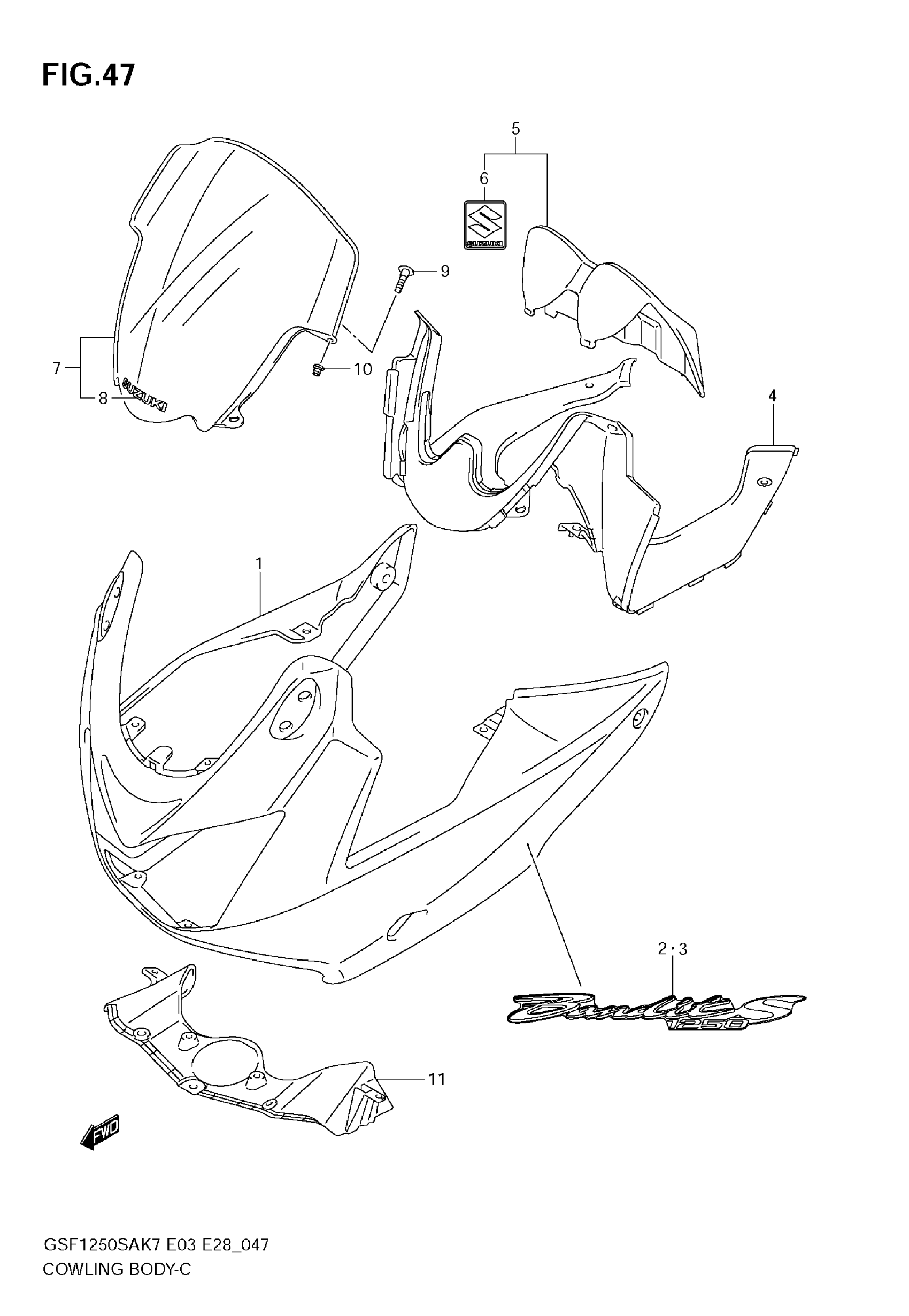

2009 Suzuki GSF1250S Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING,BODY(BL This part replaces 94410-18H01-YAY.

94410-18H02-YAY

1
Out of stock

1

COWLING,BODY(RE This part replaces 94410-18H01-YHL.

94410-18H02-YHL

1
Out of stock

1

COWLING, BODY (BLUE) | Includes Item(s) 2 - 3

94410-18H01-YLE

1
Out of stock

2

EMBLEM, SIDE RH | FOR YAY

68271-18H00-EFC

1
Out of stock

2

EMBLEM, SIDE RH | FOR YHL

68271-18H00-EFD

1
Out of stock

2

EMBLEM, SIDE RH | FOR YLE

68271-18H00-EFE

1
Out of stock

3

EMBLEM, SIDE LH | FOR YAY

68281-18H00-EFC

1
Out of stock

3

EMBLEM, SIDE LH | FOR YHL

68281-18H00-EFD

1
Out of stock

3

EMBLEM, SIDE LH | FOR YLE

68281-18H00-EFE

1
Out of stock

4

PANEL, METER

94641-38G00

1
Out of stock

5

LID, METER PANEL | Includes Item(s) 6

94650-38G00

1
Out of stock

6

EMBLEM

68281-35F00

1
Out of stock

7

WINDSCREEN | Includes Item(s) 8 This part replaces 94610-38G00-YD8.

94610-38G01-YD8

1
Out of stock

8

EMBLEM (SILVER)

68275-38G00-YD8

1
Out of stock

9

SCREW

09139-05504

4
Out of stock

10

NUT

09159-05048

4
Out of stock

11

COVER, INNER

94461-38G00

1
Out of stock
