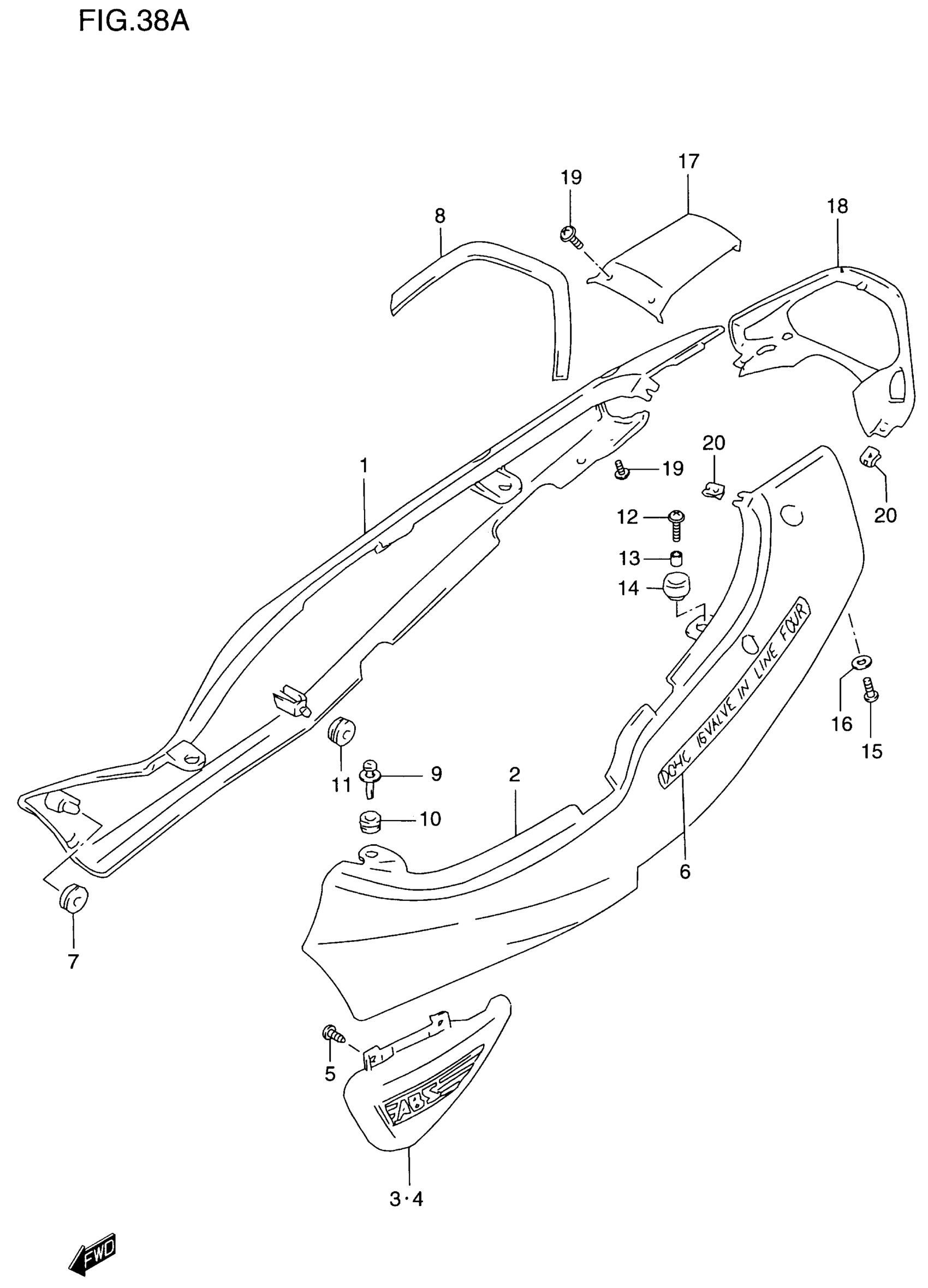

Suzuki GSF1200S (2000) FRAME COVER (GSF1200SAV) Diagram

#

Description
Price

1

COVER ASSY, FRAME RH (BLACK)

47110-27E60-33J

Unavailable

2

COVER ASSY, FRAME LH (MAROON) | Includes Item(s) 3 - 6

47210-27E60-33J

Unavailable

3

COVER, FRAME LOWER RH (BLACK)

47121-27E00-291

Unavailable

4

COVER, FRAME LOWER LH (BLACK)

47221-27E00-291

Unavailable

5

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

6

EMBLEM, FRAME COVER (GOLD)

68131-26E30-24G

Unavailable

7

CUSHION,FRAME C This part replaces 47161-21E00.

47161-21E01

$11.48

8

CUSHION, UPPER

47161-27E00

Unavailable

9

CLIP

09409-10306

$2.80

10

CUSHION

09320-10501

$4.85

11

CUSHION

09320-08018

$2.80

12

SCREW

09136-06105

$1.99

13

SPACER

09180-06286

$2.53

14

CUSHION

09320-10045

$3.38

15

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

16

WASHER

09161-06021

$2.80

17

COVER, FRAME CENTER (BLACK)

47311-26E00-33J

Unavailable

18

COVER, FRAME REAR (BLACK)

47331-26E00-291

Unavailable

19

SCREW This part replaces 03241-15123.

03241-1512B

$2.38

20

NUT

09148-05020

$2.04
