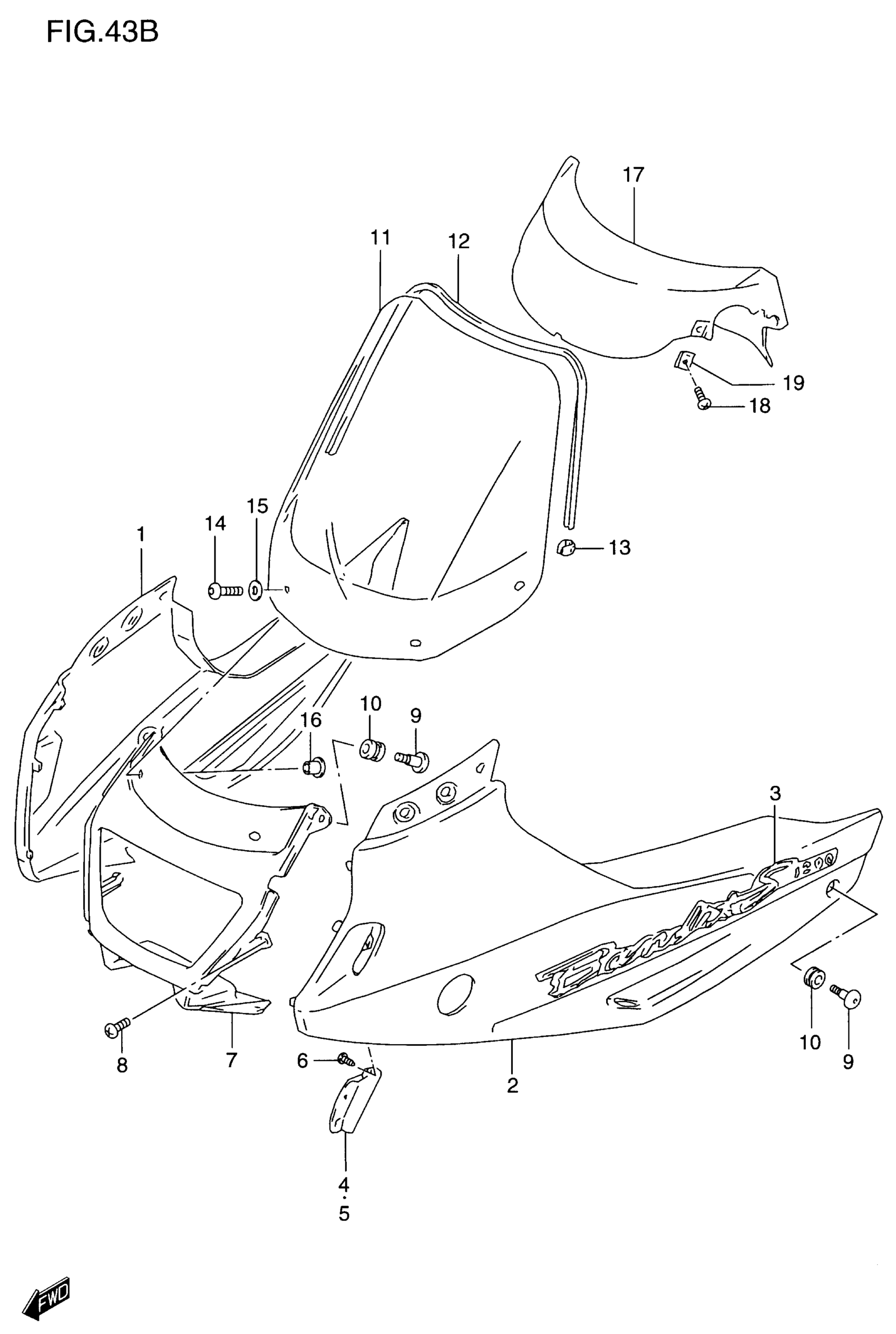

Suzuki GSF1200S (2000) COWLING BODY (MODEL X) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (BLACK)

94401-27E00-33J

Unavailable

1

COWL ASSY, SIDE RH (GREEN)

94401-27E00-Y7G

Unavailable

2

COWL ASSY, SIDE LH (BLACK)

94402-27E00-33J

Unavailable

2

COWL ASSY, SIDE LH (GREEN) | Includes Item(s) 3 - 6

94402-27E00-Y7G

Unavailable

3

EMBLEM, SIDE | FOR 33J

68681-27E00-F6G

$47.62

3

EMBLEM,COWLING | FOR Y7G This part replaces 68681-27E00-K1Z.

68681-27E01-K1Z

$34.62

4

COVER, COWL INNER RH

94413-26E00

Unavailable

5

COVER, COWL INNER LH

94423-26E00

Unavailable

6

SCREW This part replaces 03541-05103.

03541-0510A

$1.43

7

COWL ASSY, CENTER (BLACK)

94403-26E00-33J

Unavailable

7

COWL ASSY, CENTER (GREEN)

94403-26E00-Y7G

Unavailable

8

SCREW This part replaces 02142-15163.

02142-1516A

$1.86

9

SCREW This part replaces 09139-06087.

09139-06126

$3.65

10

CUSHION

09320-09016

$1.97

11

WINDSCREEN SET | Includes Item(s) 12 - 13

94610-26E01

Unavailable

12

MOLDING

94631-33C01

$20.33

13

CLIP

94637-21E00

$9.25

14

SCREW

09139-05025

$1.89

15

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.83

16

NUT

09159-05019

$6.44

17

PANEL, INNER

94640-27E00

Unavailable

18

SCREW This part replaces 03242-05123.

03241-0512A

$1.36

19

NUT

09148-05038

$1.97
