2000 Suzuki GSF1200S Cowling Brace Diagram

← All diagrams

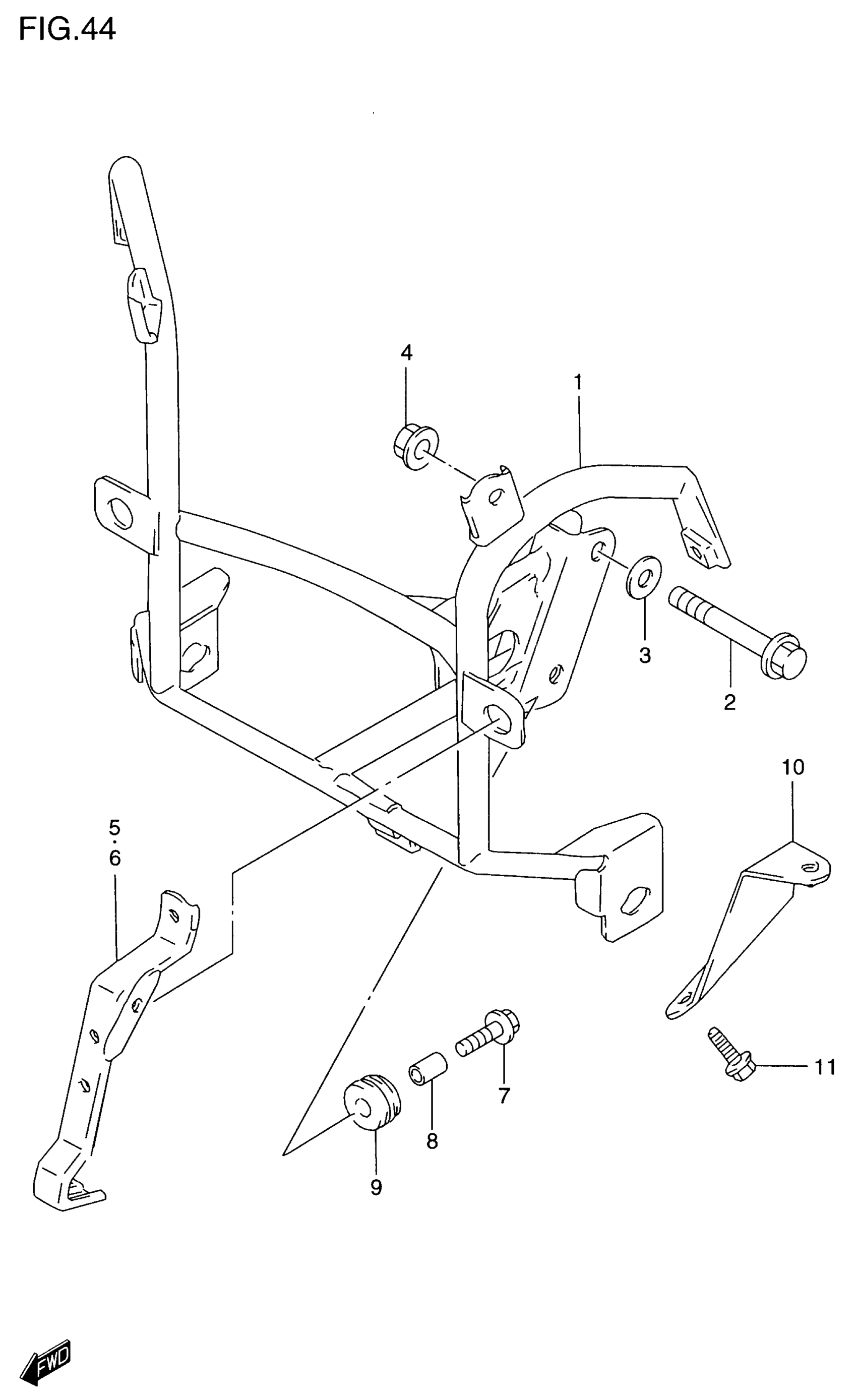

Find the part on the Cowling Brace diagram for your 2000 Suzuki GSF1200S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki GSF1200S Cowling Brace Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING | GSF1200SV/SW/SX/SY This part replaces 94510-26E00.

94510-26E10

1
Out of stock

1

BRACE, COWLING | GSF1200SAV

94510-26E10

1
Out of stock

2

BOLT

09103-08222

2
Out of stock

3

WASHER

09164-08020

2
Out of stock

4

NUT This part replaces 08316-10083.

08316-1008B

1
Out of stock

5

BRACKET, HEADLAMP RH

94520-26E00

1
Out of stock

6

BRACKET, HEADLAMP LH

94530-26E00

1
Out of stock

7

BOLT | MODEL V/W/X

09116-06131

2
Out of stock

7

BOLT (6X25) | MODEL Y This part replaces 09116-06146.

09116-06150

2
Out of stock

8

SPACER

09180-06307

2
Out of stock

9

CUSHION (8.5X23X9.5) This part replaces 09320-08047.

09320-08518

2
Out of stock

10

BRACKET, REAR RH

94531-27E00

1
Out of stock

10

BRACKET, REAR LH

94541-27E00

1
Out of stock

11

BOLT This part replaces 01570-06163.

01570-0616A

4
Out of stock
