2000 Suzuki GSF1200S Footrest Diagram

← All diagrams

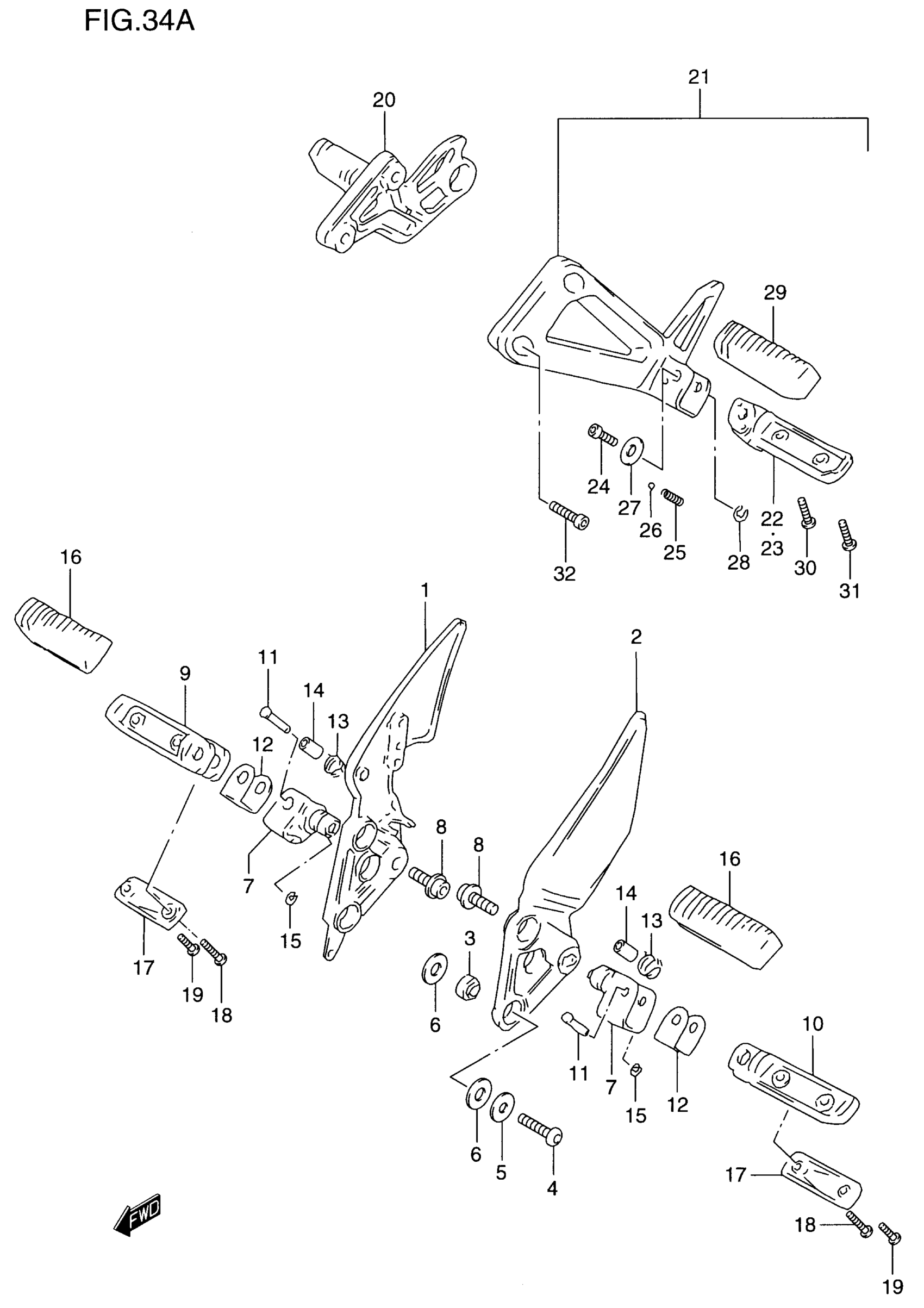

Find the part on the Footrest diagram for your 2000 Suzuki GSF1200S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki GSF1200S Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43510-27820

1
Out of stock

2

BRACKET, FRONT FOOTREST LH | Includes Item(s) 3

43520-27820

1
Out of stock

3

BUSH (12X20X16)

09319-08036

6
Out of stock

4

BOLT

09106-08134

6
Out of stock

5

WASHER This part replaces 09160-08131.

09160-08130

6
Out of stock

6

WASHER

09161-12009

12
Out of stock

7

HOLDER, FOOTREST

43530-27E00

2
Out of stock

8

BOLT

09106-10064

2
Out of stock

9

BAR, FRONT FOOTREST RH

43511-40C00

1
Out of stock

10

BAR, FRONT FOOTREST LH

43521-40C00

1
Out of stock

11

PIN

09208-08010

2
Out of stock

12

2

$20.58

In stock

13

SPRING

09448-18022

2
Out of stock

14

SPACER (8.1X12X22)

09180-08149

2
Out of stock

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

16

RUBBER, FOOTREST

43550-40C11

2
Out of stock

17

BALANCER, FRONT FOOTREST LOWER

43536-31E20

2
Out of stock

18

2

$2.37

In stock

19

SCREW This part replaces 02142-05253.

02142-0525B

2
Out of stock

20

FOOTREST ASSY, PILLION RH

43600-27E50

1
Out of stock

21

FOOTREST ASSY, PILLION LH | Includes Item(s) 22 - 31

43700-27E50

1
Out of stock

22

BAR, PILLION FOOTREST RH

43610-40C00

1
Out of stock

23

BAR, PILLION FOOTREST LH

43620-40C00

1
Out of stock

24

BOLT, PILLION FOOTREST

43642-40C00

2
Out of stock

25

SPRING

09440-05003

2
Out of stock

26

BALL

06111-07004

2
Out of stock

27

WASHER (10.5X24X1.6)

09160-10126

2
Out of stock

28

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

29

RUBBER, FOOTREST

43550-40C11

2
Out of stock

30

SCREW, REAR This part replaces 02142-05203.

02142-0520B

2
Out of stock

31

SCREW This part replaces 02142-05163.

02142-0516A

2
Out of stock

32

BOLT (8X25)

09106-08097

4
Out of stock
