2000 Suzuki GSF1200S Cylinder Head Diagram

← All diagrams

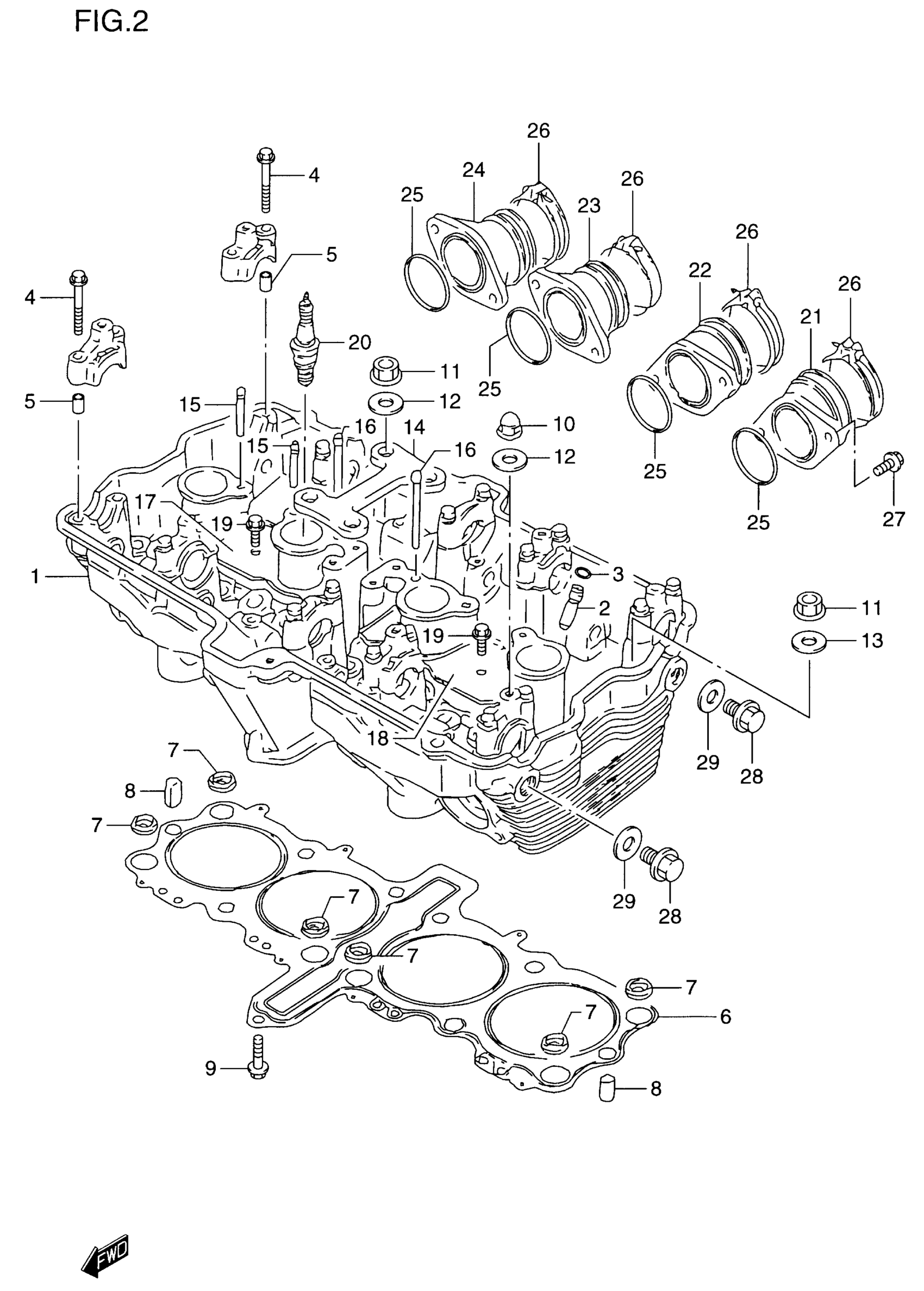

Find the part on the Cylinder Head diagram for your 2000 Suzuki GSF1200S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki GSF1200S Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-27E50

1
Out of stock

1

HEAD ASSY, CYLINDER | E33; Includes Item(s) 2 - 5

11100-27E60

1
Out of stock

2

GUIDE, VALVE

11116-06B70

16
Out of stock

3

.RING (10X85)

09381-10004

16
Out of stock

4

BOLT (6X39)

09103-06026

20
Out of stock

5

PIN (8X11)

09206-08001

20
Out of stock

6

GASKET, CYLINDER HEAD This part replaces 11141-27E00.

11141-32F01

1
Out of stock

7

O RING This part replaces 11143-48B01.

11143-32F00

6
Out of stock

8

PIN

09209-11007

2
Out of stock

9

BOLT This part replaces 01550-06303.

01550-0630A

1
Out of stock

10

NUT

09159-10069

4
Out of stock

11

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

8
Out of stock

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

4
Out of stock

14

PLATE, REINFORCEMENT

11138-40C10

1
Out of stock

15

PIPE, OIL NO.1,2

11131-27A00

4
Out of stock

16

PIPE, OIL NO.3

11133-27A00

2
Out of stock

17

PLATE, OIL PIPE RH

11135-27A02

1
Out of stock

18

PLATE, OIL PIPE LH

11136-27A02

1
Out of stock

19

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

4
Out of stock

20

SPARK PLUG (NGK,JR9B)

09482-00389

4
Out of stock

20

SPARK PLUG (NGK,JR10B) | OPT

09482-00391

4
Out of stock

21

1

$34.17

In stock

22

1

$33.38

In stock

23

1

$34.17

In stock

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

4
Out of stock

26

CLAMP

09402-52208

4
Out of stock

27

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

8
Out of stock

28

PLUG, CYLINDER HEAD

09248-14010

4
Out of stock

29

GASKET

09168-14002

4
Out of stock
