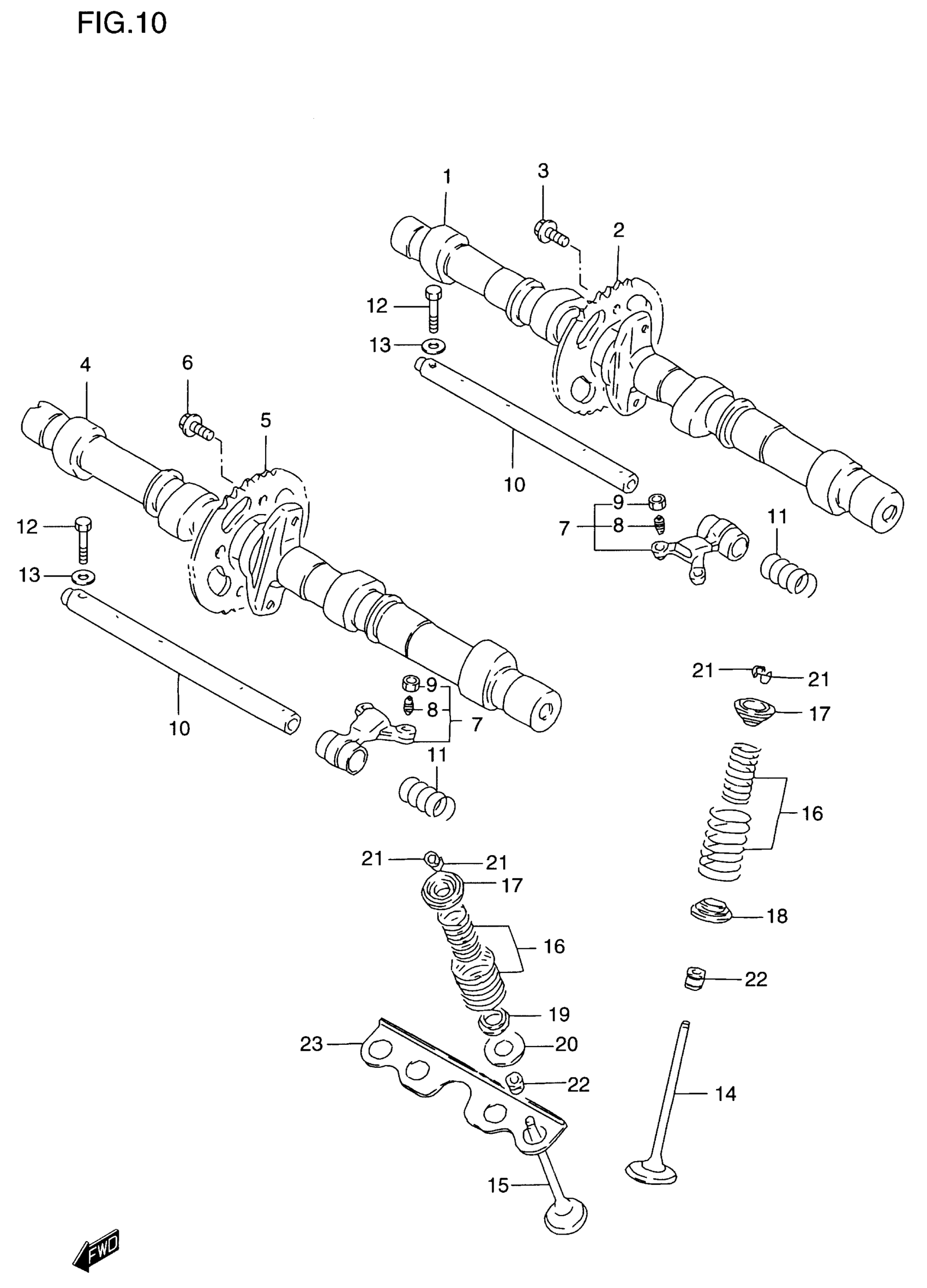

Suzuki GSF1200S (2000) CAM SHAFT / VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-26D00

Unavailable

2

SPROCKET

12741-26D00

Unavailable

3

BOLT (7X11)

09103-07001

$2.51

4

CAM SHAFT, EXHAUST

12721-26D00

Unavailable

5

SPROCKET

12741-26D00

Unavailable

6

BOLT (7X11)

09103-07001

$2.51

7

ARM, ROCKER | Includes Item(s) 8 - 9

12840-27A01

$86.55

8

SCREW

12842-49201

$7.48

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.80

10

SHAFT, ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.67

12

BOLT | ~E.NO.155699

01800-06303

Unavailable

12

BOLT | E.NO.155700~ This part replaces 09112-06004.

01800-06303

Unavailable

13

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

14

VALVE, INTAKE

12911-06B02

$53.58

15

VALVE, EXHAUST

12912-06B00

Unavailable

16

SPRING SET

12920-06B00

$13.02

17

RETAINER

12931-27A01

$9.50

18

SEAT,VALVE SPRING

12933-81400

$4.86

19

SEAT, EXHAUST INNER

12934-27A01

$3.92

20

SEAT, EXHAUST OUTER

12935-27A00

$3.67

21

COTTER, VALVE

12932-27A00

$2.20

22

OIL SEAL (5X10X8.7)

09289-05011

$5.70

23

PLATE

11137-27A02

Unavailable
