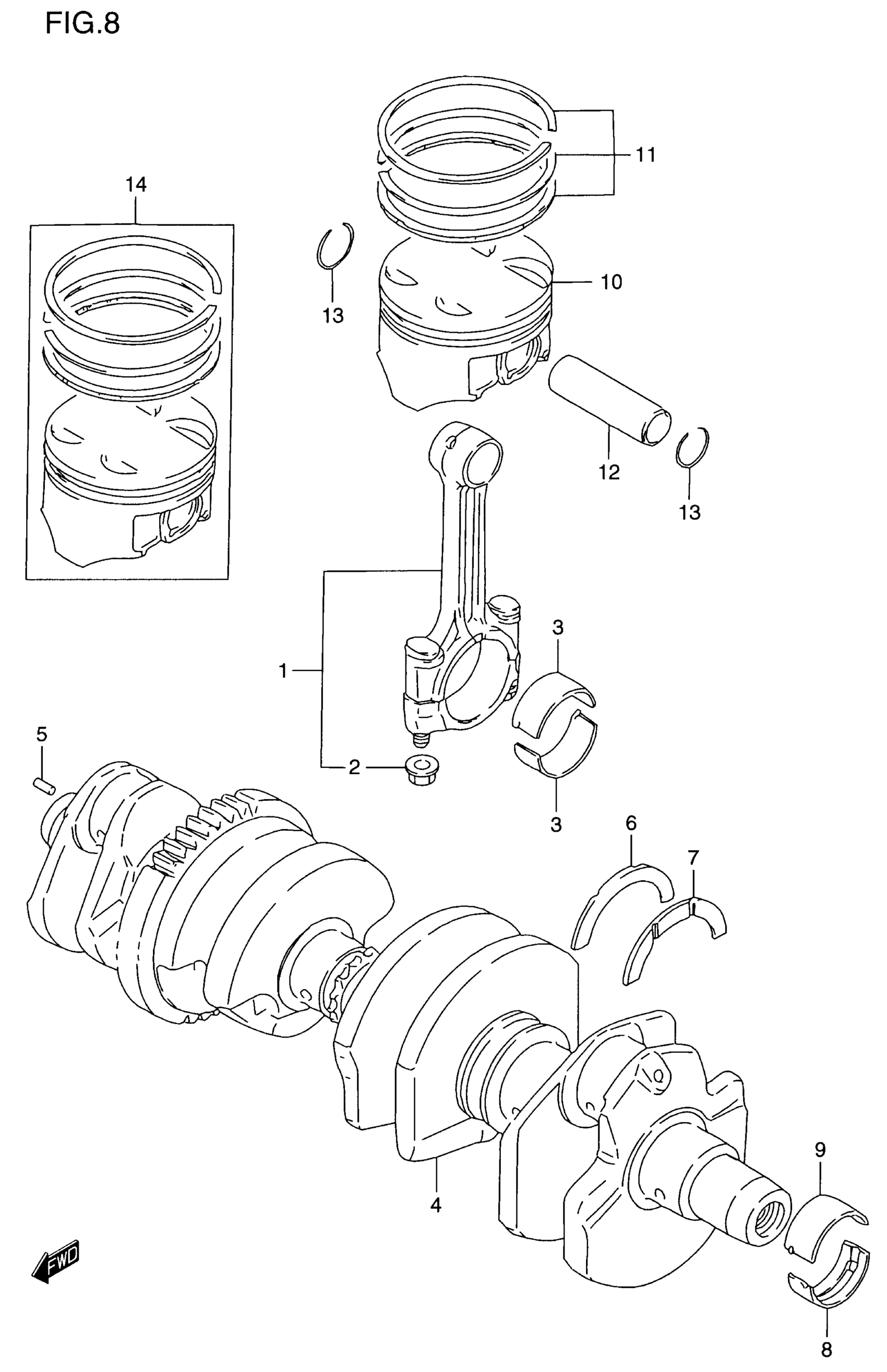

Suzuki GSF1200S (2000) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | MODEL V/W This part replaces 12160-40C02.

12160-40C03

Unavailable

1

ROD ASSY, CONNECTING | MODEL X/Y; Includes Item(s) 2

12160-40C03

Unavailable

2

NUT

09159-09001

$5.10

3

BEARING

12164-46E01-0A0

$15.38

3

BEARING

12164-46E01-0B0

$15.38

3

BEARING

12164-46E01-0C0

$15.84

3

BEARING

12164-46E01-0D0

$15.84

4

CRANKSHAFT SET | Includes Item(s) 5 - 7

12000-27831

Unavailable

5

PIN (4X13.8)

04221-04089

$1.10

6

BEARING, CRANK THRUST (GREEN) | RH

12228-48B00-0E0

$8.80

7

BEARING, CRANK THRUST (PINK) | LH

12228-48B00-0A0

Unavailable

7

BEARING, CRANK THRUST (BROWN) | LH

12228-48B00-0B0

$13.05

7

BEARING, CRANK THRUST (RED) | LH

12228-48B00-0C0

$12.82

7

BEARING, CRANK THRUST (YELLOW) (YELLOW) | LH; Includes Item(s) 7

12228-48B00-0D0

$13.30

7

BEARING, CRANK THRUST (BLUE) | LH

12228-48B00-0F0

$13.30

7

BEARING, CRANK THRUST (ORANGE) (ORANGE) | LH

12228-48B00-0G0

$13.30

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-06B00-0A0

$13.55

8

BEARING, CRANKSHAFT (BLACK) | LOWER

12229-06B00-0B0

$9.61

8

BEARING, CRANKSHAFT (BROWN) | LOWER

12229-06B00-0C0

$13.55

8

BEARING, CRANKSHAFT (YELLOW) | LOWER

12229-06B00-0D0

Unavailable

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-06B10-0A0

$13.55

9

BEARING, CRANKSHAFT (BLACK) | UPPER

12229-06B10-0B0

$9.61

9

BEARING, CRANKSHAFT (BROWN) | UPPER

12229-06B10-0C0

$9.61

9

BEARING, CRANKSHAFT (YELLOW) | UPPER

12229-06B10-0D0

Unavailable

10

PISTON This part replaces 12111-27E01-0F0.

12111-27E10-0F0

Unavailable

11

RING SET, PISTON

12140-27E20

$84.57

12

PIN,PISTON

12151-05A00

$14.29

13

CIRCLIP

09381-20004

$1.64

14

PISTON SET (OS:0.5) | OPT This part replaces 12100-27E01-050.

12100-27E10-050

Unavailable
