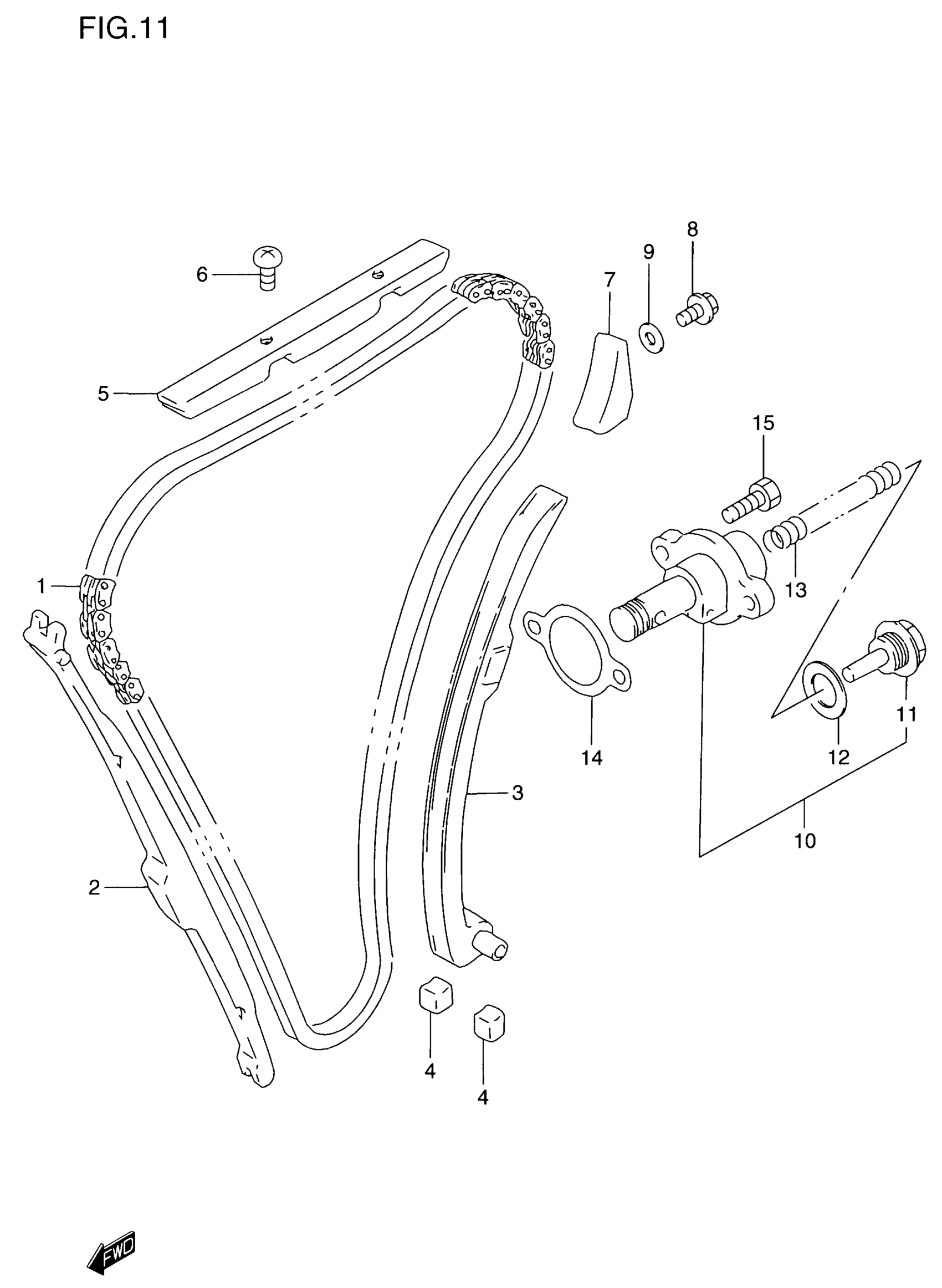

Suzuki GSF1200S (2000) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-26D00

$205.07

2

GUIDE,CAM CHAIN This part replaces 12771-26D00.

12771-26D01

$73.73

3

TENSIONER,CAM C This part replaces 12810-26D00.

12810-26D01

$84.88

4

CUSHION

12814-34200

$7.42

5

GUIDE,CAM CHAIN This part replaces 12782-05A01.

12782-05A02

$49.72

6

SCREW This part replaces 02112-06103.

02112-0610B

$1.83

7

GUIDE, CAM CHAIN NO.3

12791-27A00

$16.03

8

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

9

GASKET

09168-06023

$2.01

10

ADJUSTER ASSY, TENSIONER | Includes Item(s) 11 - 13

12830-46E10

$176.20

11

PLUG

12834-27A00

Unavailable

12

GASKET

12832-27A00

$9.17

13

SPRING

12833-26D10

$7.77

14

GASKET

12837-27A10

$3.62

15

BOLT This part replaces 07130-06253.

07130-0625B

$2.80
