2005 Suzuki GSF1200 Fuel Cock Diagram

← All diagrams

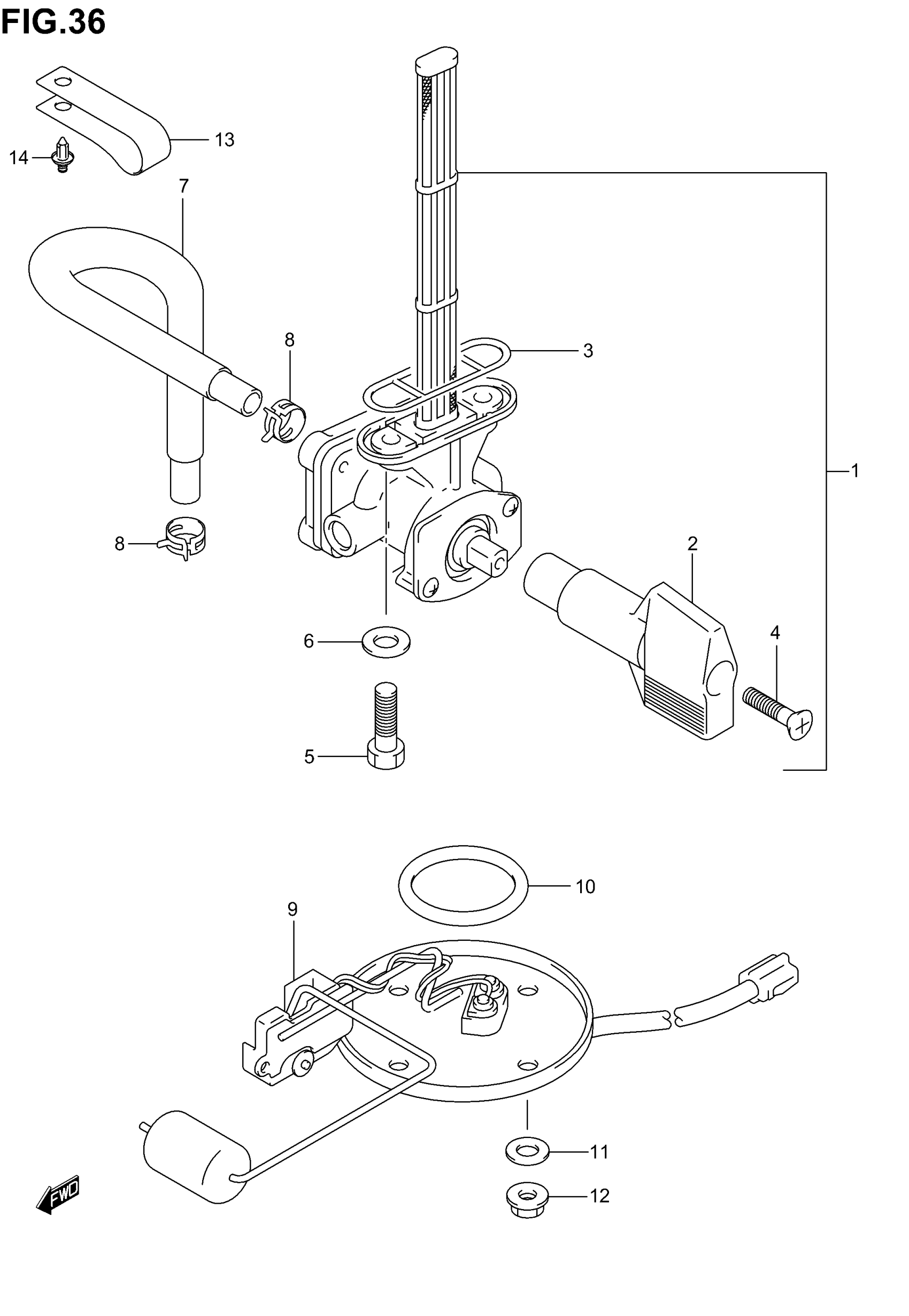

Find the part on the Fuel Cock diagram for your 2005 Suzuki GSF1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSF1200 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY,FUEL | Includes Item(s) 2 - 4 This part replaces 44300-32F00.

44300-32F11

1
Out of stock

2

LEVER, FUEL COCK

44306-26E00

1
Out of stock

3

.GASKET JOINT This part replaces 44348-87420.

44348-87421

1
Out of stock

4

1

$2.43

In stock

5

BOLT, FUEL COCK | MODEL K1 This part replaces 34826-03F00.

09128-06086

2
Out of stock

5

BOLT, FUEL COCK | MODEL K2/K3/K4/K5

09128-06086

2
Out of stock

6

GASKET (6.4X11.5X0.8)

09168-06026

2
Out of stock

7

HOSE, FUEL

44430-32F00

1
Out of stock

8

CLIP

09401-13417

2
Out of stock

9

GAUGE ASSY,FUEL This part replaces 34810-31F00.

34810-31F01

1
Out of stock

10

O RING

34825-31F00

1
Out of stock

11

WASHER (6.5X15X1.6)

09160-06128

4

$2.16

In stock

12

.NUT This part replaces 08319-21063.

08319-2106B

4
Out of stock

13

CLAMP, FUEL HOSE

44462-32F00

1
Out of stock

14

CLIP (BLACK)

09409-08308-5ES

1
Out of stock
