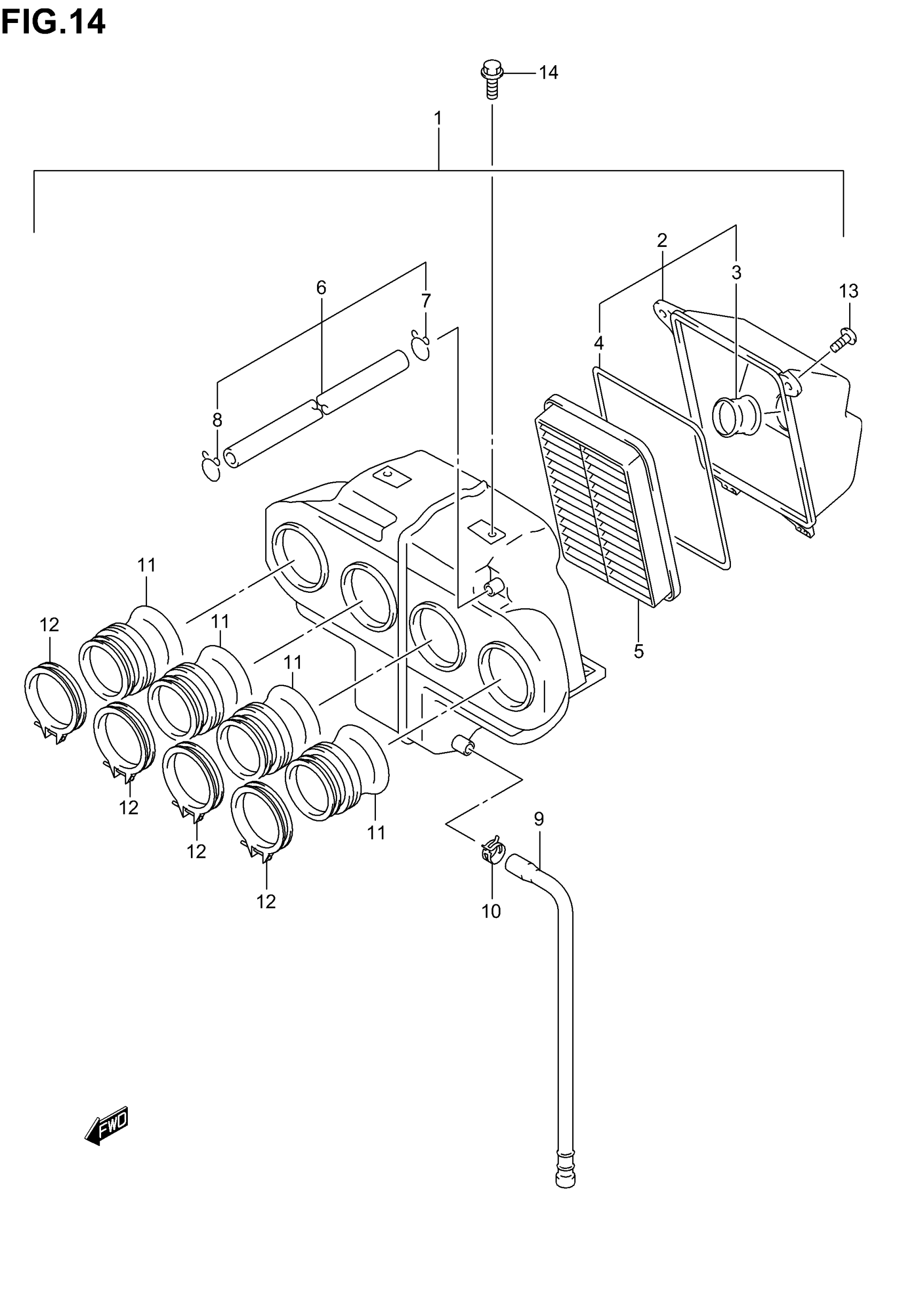

Suzuki GSF1200 (2005) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 13

13700-32F00

Unavailable

2

CAP,AIR CLEANER This part replaces 13740-32F00.

13740-32F01

Unavailable

3

TUBE,INLET This part replaces 13891-31E10.

13891-31E11

$18.94

4

GASKET, AIR CLEANER CAP

13746-31F00

$6.60

5

FILTER, AIR

13780-31F00

$26.63

6

TUBE,BREATHER This part replaces 13850-31F00.

13850-31F01

$25.45

7

CLIP

09401-14404

$2.29

8

CLIP

09401-16401

$2.87

9

TUBE,DRAIN This part replaces 13870-21458.

13870-21459

$26.73

10

CLIP

09401-13417

$2.24

11

TUBE,OUTLET This part replaces 13881-32F00.

13881-32F01

$24.10

12

CLAMP

09402-64203

$5.94

13

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
