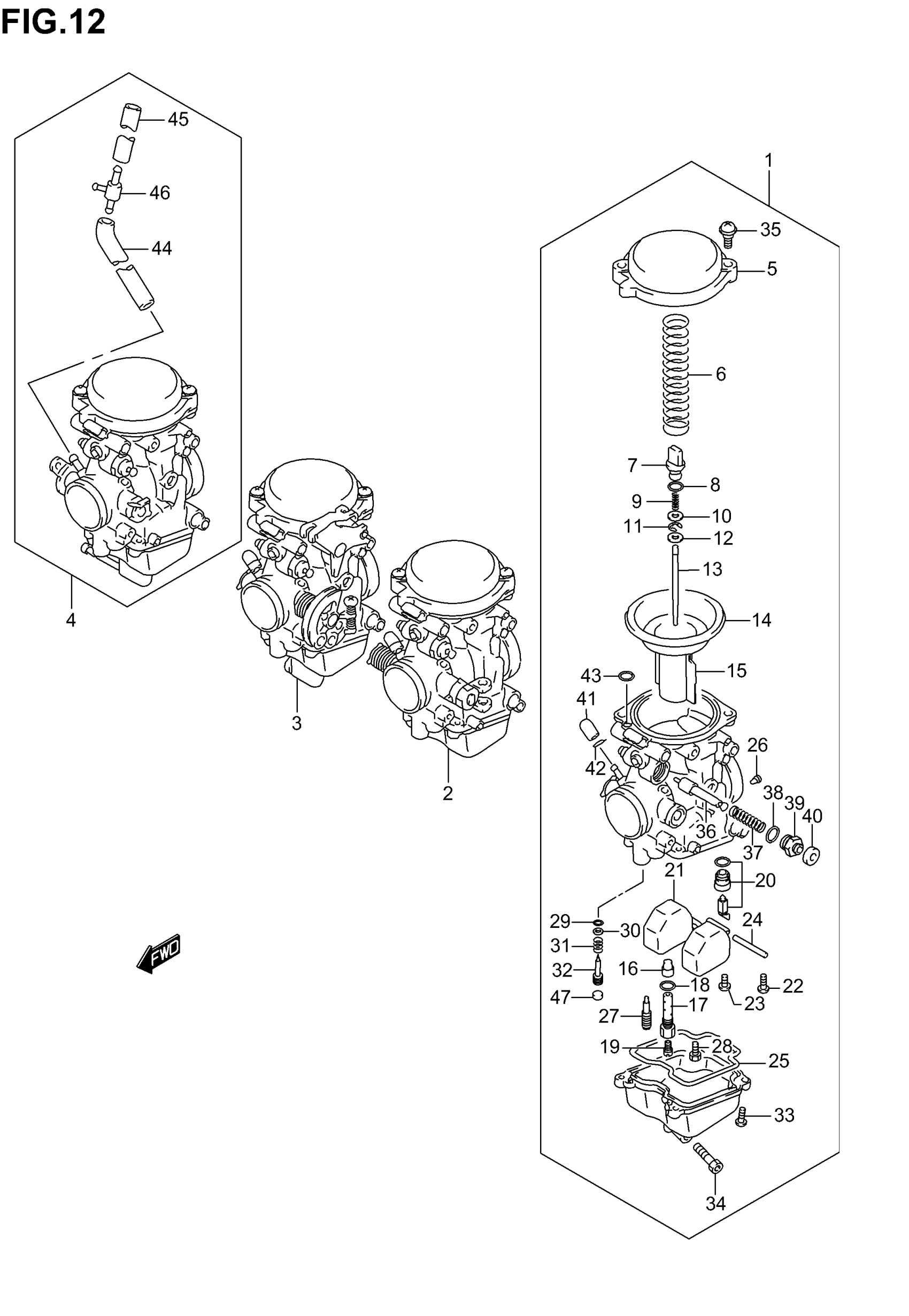

Suzuki GSF1200 (2005) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | E3,E28

13201-32F10

Unavailable

1

CARBURETOR ASSY, LH | E33

13201-32F20

Unavailable

2

CARBURETOR ASSY, ML | E3,E28

13202-32F10

Unavailable

2

CARBURETOR ASSY, ML | E33

13202-32F20

Unavailable

3

CARBURETOR ASSY, MR | E3,E28

13203-32F10

Unavailable

3

CARBURETOR ASSY, MR | E33

13203-32F20

Unavailable

4

CARBURETOR ASSY, RH | E3,E28

13204-32F10

Unavailable

4

CARBURETOR ASSY, RH | E33; Includes Item(s) 5 - 47

13204-32F20

Unavailable

5

DIAPHRAGM COVER

13502-08F00

$57.92

6

SPRING

13573-33E00

$12.03

7

HOLDER

13418-33E00

$5.43

8

O RING (D:1.9,ID:4.8)

09280-05004

$2.17

9

SPRING

13481-33E00

$3.64

10

WASHER

13382-19E00

$3.51

11

E RING, MULTI PULL JET NOZZLE

13394-17E60

$1.89

12

RING

13387-44030

$5.74

13

NEEDLE, JET | 5C71-1

13383-32F10

Unavailable

14

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$28.31

15

VALVE, PISTON

13501-08F00

$73.71

16

JET, NEEDLE (P-OM)

09494-00921

$39.89

17

HOLDER, JET

13385-08F00

$40.02

18

.O RING This part replaces 13246-43010.

13246-43011

$4.15

19

JET, MAIN (100)

09491-20019

$9.99

20

VALVE ASSY,NEED This part replaces 13370-08F50.

13370-08F51

$104.63

21

FLOAT ASSY

13250-04F00

$33.23

22

SCREW This part replaces 02112-04083.

02112-0408A

$1.13

23

SCREW

13602-05A10

$3.41

24

.PIN, FLOAT

13254-01010

$3.56

25

GASKET

13258-04F00

$9.47

26

JET, PILOT AIR (1.7)

09493-34004

$18.33

27

JET, PILOT (15)

09492-15017

$23.32

28

JET, MAIN (60)

09491-60010

$13.78

29

O-RING This part replaces 13295-29900.

13295-29901

$4.15

30

WASHER

13291-29900

$1.87

31

SPRING,THROTTLE SCREW

13268-48700

$4.15

32

ADJUSTER | 3.0

13279-19F10

$10.45

33

SCREW

02112-04107

$1.61

34

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.77

35

SCREW

13247-33E00

$2.81

36

PLUNGER

13411-05300

$23.77

37

SPRING

13417-26D00

$6.87

38

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.98

39

.HOLDER, GUIDE

13418-44080

$9.84

40

.CAP, STARTER VALVE

13682-31210

$4.18

41

CAP | LH,ML,MR

13274-84000

$3.66

42

CLIP

09402-64203

$6.12

43

O RING

13295-33010

$4.28

44

.HOSE | L:600!175 This part replaces 09352-50903-600.

09352-50006-600

$6.95

45

HOSE This part replaces 13683-32F00.

13683-32F01

$19.93

46

.NIPPLE

13685-48B00

$11.96

47

PLUG | E33

13281-05A00

$4.40
