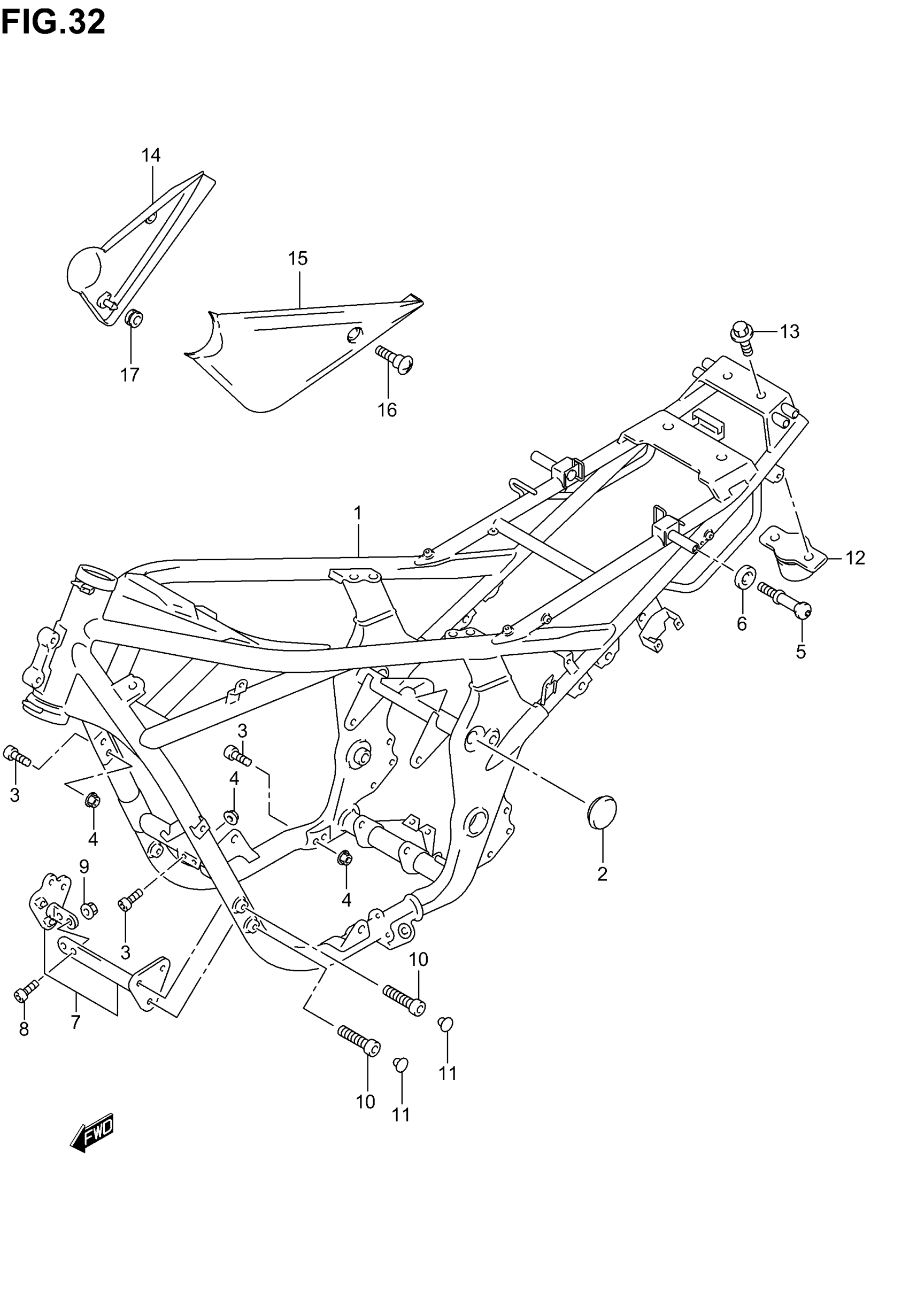

Find the part on the Frame diagram for your 2005 Suzuki GSF1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSF1200 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK) | GSF1200SK1 E28 GSF1200K1 E3,E33

41100-32F00-33J

1
Out of stock

1

FRAME (RED)

41100-32F00-YC6

1
Out of stock

1

FRAME (SILVER) | GSF1200SK1 E3,E33

41100-32F00-YD8

1
Out of stock

2

CAP, FRAME BODY

43585-03F00

2
Out of stock

3

BOLT (10X37)

09106-10068

6
Out of stock

4

NUT This part replaces 08319-31103.

08319-3110A

6
Out of stock

5

HOOK, SEAT RAIL

46315-31F00

2
Out of stock

6

WASHER, HOOK

46317-31F00

2
Out of stock

7

PLATE, ENGINE MOUNT (BLACK) | GSF1200SK1 E28 GSF1200K1 E3,E33

41900-32F00-33J

1
Out of stock

7

PLATE, ENGINE MOUNT (RED)

41900-32F00-YC6

1
Out of stock

7

PLATE, ENGINE MOUNT (SILVER) | GSF1200SK1 E3,E33; Includes Item(s) 8 - 9

41900-32F00-YD8

1
Out of stock

8

BOLT This part replaces 07120-10303.

07120-1030B

2
Out of stock

9

NUT This part replaces 08319-31103.

08319-3110A

2
Out of stock

10

BOLT This part replaces 07130-08503.

07130-0850A

4
Out of stock

11

CAP

09250-08016

4
Out of stock

12

DAMPER, FRAME REAR

42550-32F00

1
Out of stock

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

14

COVER, FRAME HEAD RH (BLACK) | GSF1200K1 E3,E33

47511-32F00-291

1
Out of stock

15

COVER, FRAME HEAD LH (BLACK) | GSF1200K1 E3,E33

47521-32F00-291

1
Out of stock

16

SCREW | GSF1200K1 E3,E33

09139-05021

2
Out of stock

17

CUSHION (8X22X7) | GSF1200K1 E3,E33 This part replaces 09320-08013.

09320-08509

2
Out of stock
