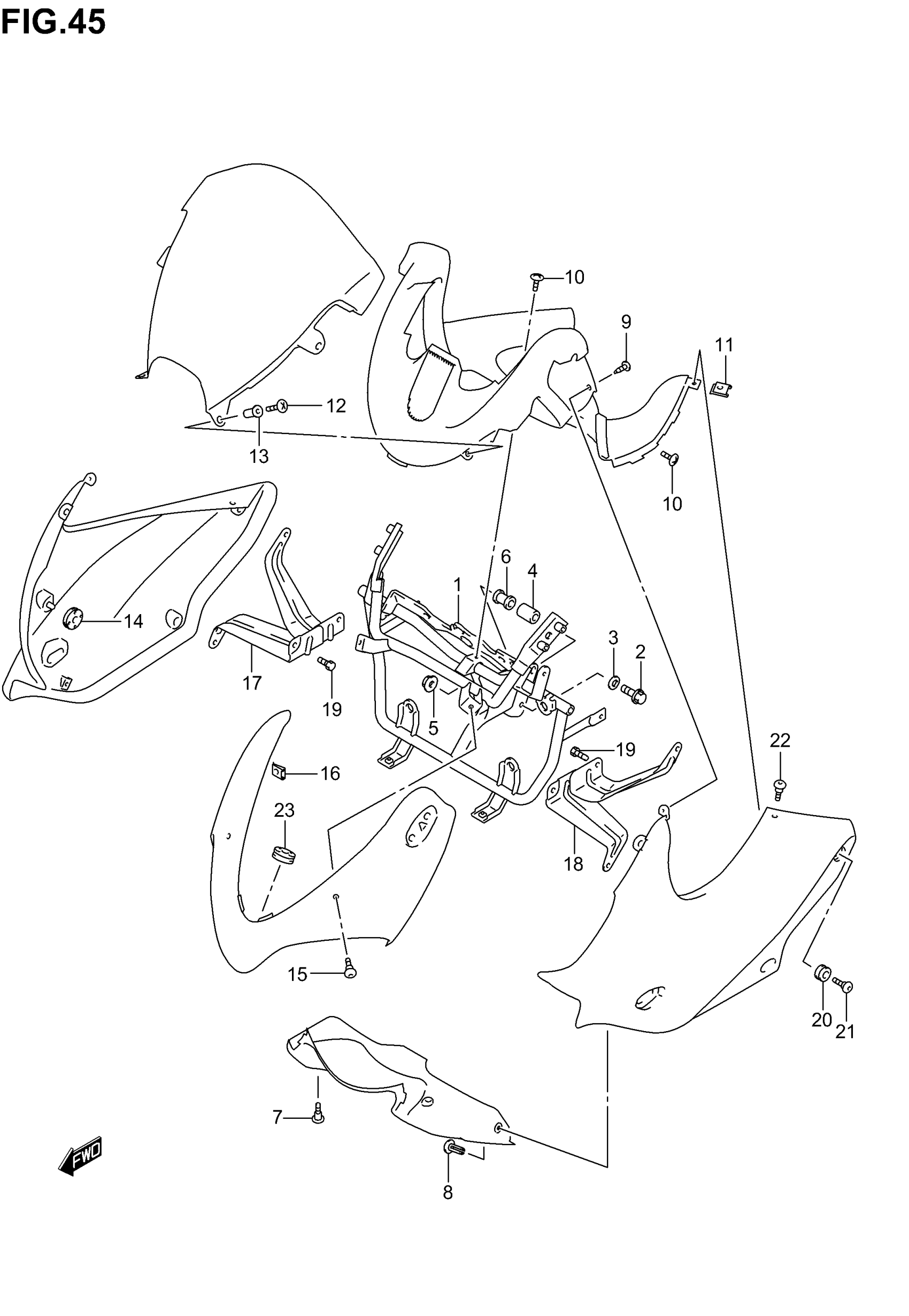

Suzuki GSF1200 (2005) COWLING INSTALLATION PARTS (GSF1200SK1/SK2/SK3/SK4/SK5/SZK5) Diagram

#

Description
Price

1

BRACE, COWLING | MODEL K1/K2/K3 This part replaces 94510-32F00.

94510-32F10

Unavailable

1

BRACE, COWLING | MODEL K4/K5

94510-32F10

Unavailable

2

BOLT

09103-08367

$4.12

3

WASHER | MODEL K1/K2/K3

09164-08020

$2.07

3

WASHER | MODEL K4/K5 This part replaces 08322-01083.

08322-0108A

$2.18

4

SPACER | MODEL K1/K2/K3 This part replaces 09180-08166.

09180-08215

$3.84

4

SPACER | MODEL K4/K5

09180-08215

$3.84

5

NUT This part replaces 08313-20083.

08313-2008B

$3.13

6

CUSHION, BRACE

94561-32F00

$9.60

7

SCREW, CENTER COWL

09139-05054

$3.82

8

CLIP, SIDE (BLACK)

09409-06314-5PK

$2.80

9

SCREW, BRACKET This part replaces 03242-05163.

03241-0516A

$1.23

10

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

11

NUT COWL

94484-24F00

$3.63

12

SCREW This part replaces 02142-15163.

02142-1516A

$1.86

13

NUT, SCREEN

09159-05019

$6.44

14

CUSHION, HEADLAMP

09320-08028

$2.80

15

SCREW, FRONT COWL

09139-05055

$3.90

16

NUT, UPPER

09148-05038

$1.97

17

BRACKET,SIDE CO This part replaces 94540-32F00.

94540-32F01

Unavailable

18

BRACKET,SIDE CO This part replaces 94550-32F00.

94550-32F01

Unavailable

19

BOLT This part replaces 01500-06103.

01500-0610B

$1.82

20

CUSHION, SIDE COWL

09320-09016

$1.97

21

SCREW This part replaces 09139-06087.

09139-06126

$3.65

22

SCREW, SIDE COWL UPPER

09139-05054

$3.82

23

CUSHION, CENTER

09320-08028

$2.80
