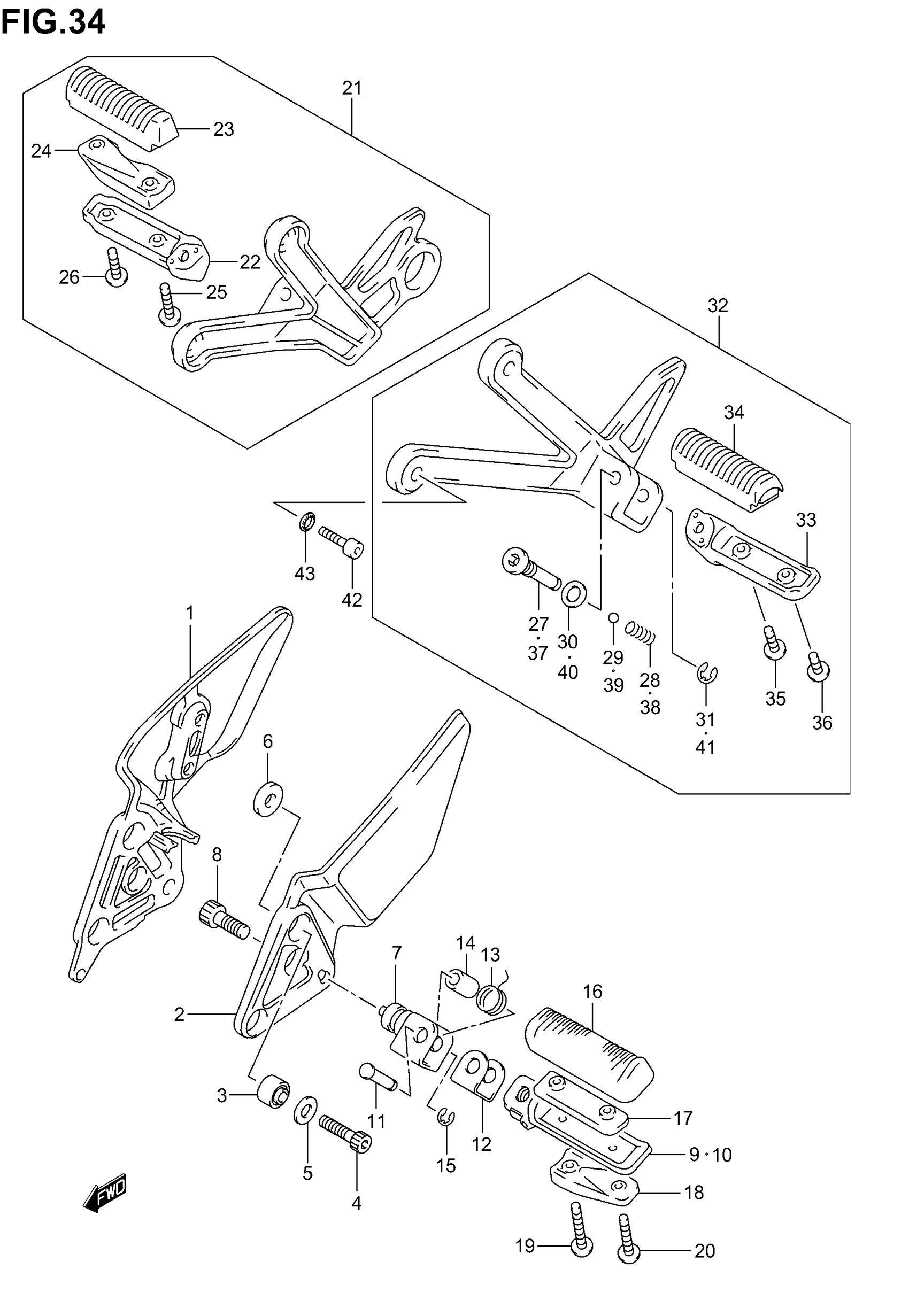

Suzuki GSF1200 (2005) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST RH

43511-26E02

$253.12

2

BRACKET, FOOTREST LH

43521-26E01

$253.12

3

BUSH

09319-08045

$18.21

4

BOLT (8X30)

09106-08147

$5.72

5

WASHER, OUTER

09161-13005

$5.17

6

WASHER, INNER

09161-17002

$5.00

7

HOLDER, FOOTREST

43530-27E00

$108.08

8

BOLT

09106-10064

$4.42

9

BAR, FOOTREST RH

43511-40C00

$72.12

10

BAR, FOOTREST LH

43521-40C00

$72.12

11

PIN

09208-08010

$2.80

12

CUSHION,FRONT F This part replaces 43570-46E20.

43570-46E21

$20.58

13

SPRING

09448-18022

$3.42

14

SPACER (8.1X12X22)

09180-08149

$5.10

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

16

RUBBER, FOOTREST

43550-31F00

$34.98

17

BALANCER, FOOTREST UPPER

43534-46E10

Unavailable

18

BALANCER, FOOTREST LOWER | MODEL K1

43536-31E20

$49.73

18

BALANCER, FOOTREST LOWER | MODEL K2/K3/K4/K5

43536-31E30

Unavailable

19

SCREW This part replaces 02142-05353.

02142-0535B

$2.37

20

SCREW, INNER This part replaces 02142-05303.

02142-0530B

$2.92

21

FOOTREST ASSY, PILLION RH | Includes Item(s) 22 - 31

43600-32F00

Unavailable

22

BAR, PILLION FOOTREST RH

43610-40C00

Unavailable

23

RUBBER, FOOTREST

43550-40C11

$29.07

24

BALANCER, PILLION LOWER

43536-32F00

Unavailable

25

SCREW, INNER This part replaces 02142-05303.

02142-0530B

$2.92

26

SCREW This part replaces 02142-05253.

02142-0525B

$2.95

27

BOLT, PILLION FOOTREST

43642-40C00

$10.15

28

SPRING

09440-05003

$1.48

29

BALL

06111-07004

$1.22

30

WASHER (10.5X24X1.6)

09160-10126

$2.13

31

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

32

FOOTREST ASSY, PILLION LH | Includes Item(s) 33 - 41

43700-32F00

Unavailable

33

BAR, PILLION FOOTREST LH

43620-40C00

Unavailable

34

RUBBER, FOOTREST

43550-40C11

$29.07

35

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.77

36

SCREW This part replaces 02142-05163.

02142-0516A

$1.43

37

BOLT, PILLION FOOTREST

43642-40C00

$10.15

38

SPRING

09440-05003

$1.48

39

BALL

06111-07004

$1.22

40

WASHER (10.5X24X1.6)

09160-10126

$2.13

41

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

42

BOLT (8X25) | MODEL K1/K2/K3/K4

09106-08097

$1.89

42

BOLT (8X25) | MODEL K5

09106-08173

Unavailable

43

WASHER

09164-08015

$2.90
