1983 Suzuki GS750E Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1983 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

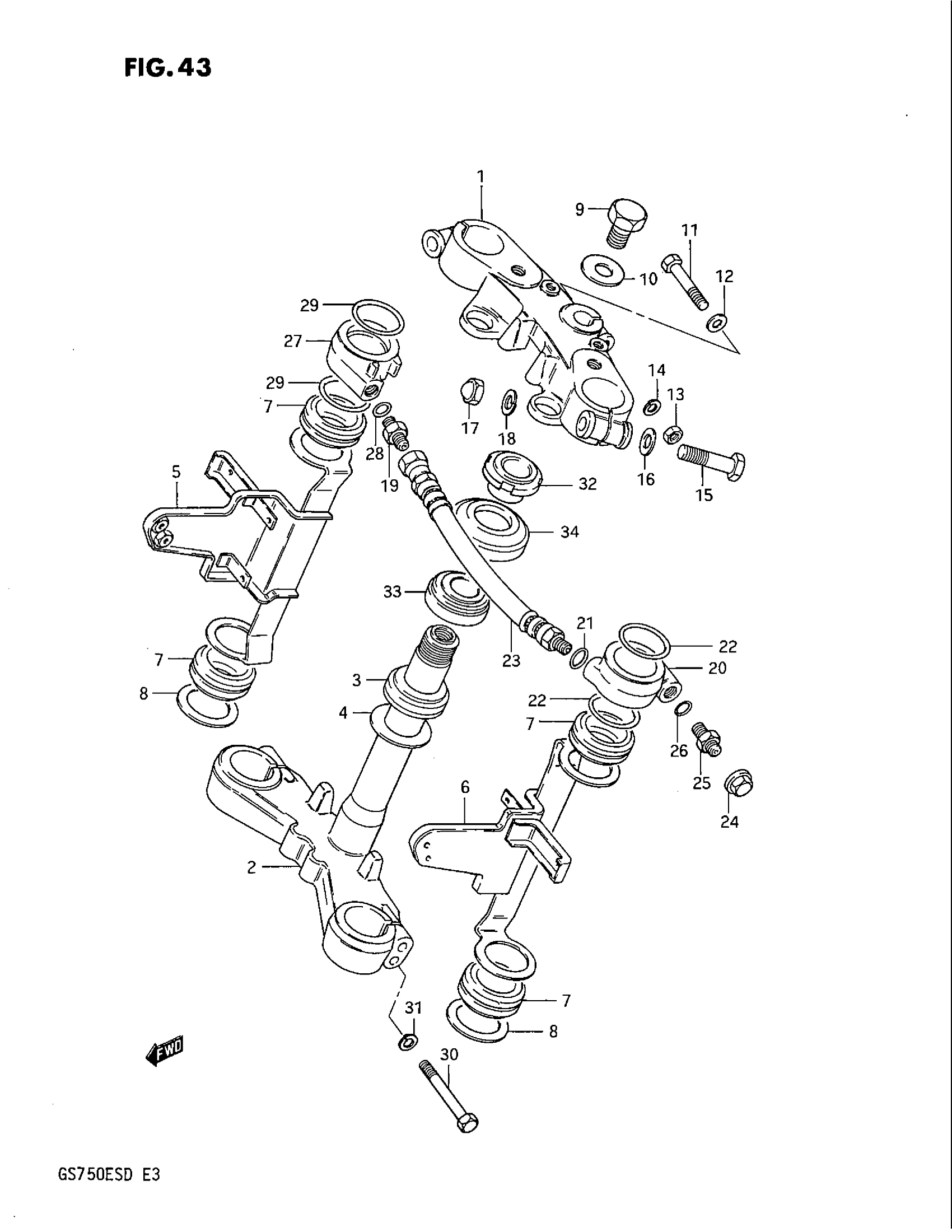

1983 Suzuki GS750E Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM HEAD, STEERING | BLACK

51311-31300-15T

1
Out of stock

2

NO DESCRIPTION AVAILABLE | BLACK; Includes Item(s) 3 - 4 This part replaces 51410-31300-15T.

51410-31330-15T

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

1
Out of stock

5

BRACKET, HEADLAMP RH | BLACK

51530-31300-15T

1
Out of stock

6

BRACKET, HEADLAMP LH | BLACK

51540-31300-15T

1
Out of stock

7

CUSHION

51553-34300

4
Out of stock

8

WASHER

51555-31310

2
Out of stock

9

BOLT This part replaces 51352-09300.

51352-31305

1
Out of stock

10

WASHER This part replaces 51356-09300.

51356-43530

1
Out of stock

11

BOLT This part replaces 01107-08508.

01500-08507

1
Out of stock

12

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

13

1

$1.93

In stock

14

1

$2.28

In stock

15

BOLT This part replaces 01107-10558.

01500-1055A

2
Out of stock

16

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

17

NUT

09145-10002

2
Out of stock

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

19

CONNECTOR

51437-33300

1
Out of stock

20

JOINT AIR, LH This part replaces 51432-31300-15T.

51432-31301-15T

1
Out of stock

21

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

1
Out of stock

22

O RING B

51356-34370

2
Out of stock

23

TUBE, JOINT

51433-31300

1
Out of stock

24

CAP This part replaces 51294-33300.

51294-45440

1
Out of stock

25

VALVE, AIR | Includes Item(s) 26

51293-45440

1
Out of stock

26

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

1
Out of stock

27

JOINT AIR, RH This part replaces 51431-31300-15T.

51431-31301-15T

1
Out of stock

28

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

1
Out of stock

29

O RING B

51356-34370

2
Out of stock

30

BOLT

01107-08045

—
Out of stock

31

4

$1.99

In stock

32

NUT, STEERING STEM

51631-34200

1
Out of stock

33

BEARING, UPPER

09265-25008

1
Out of stock

34

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock
