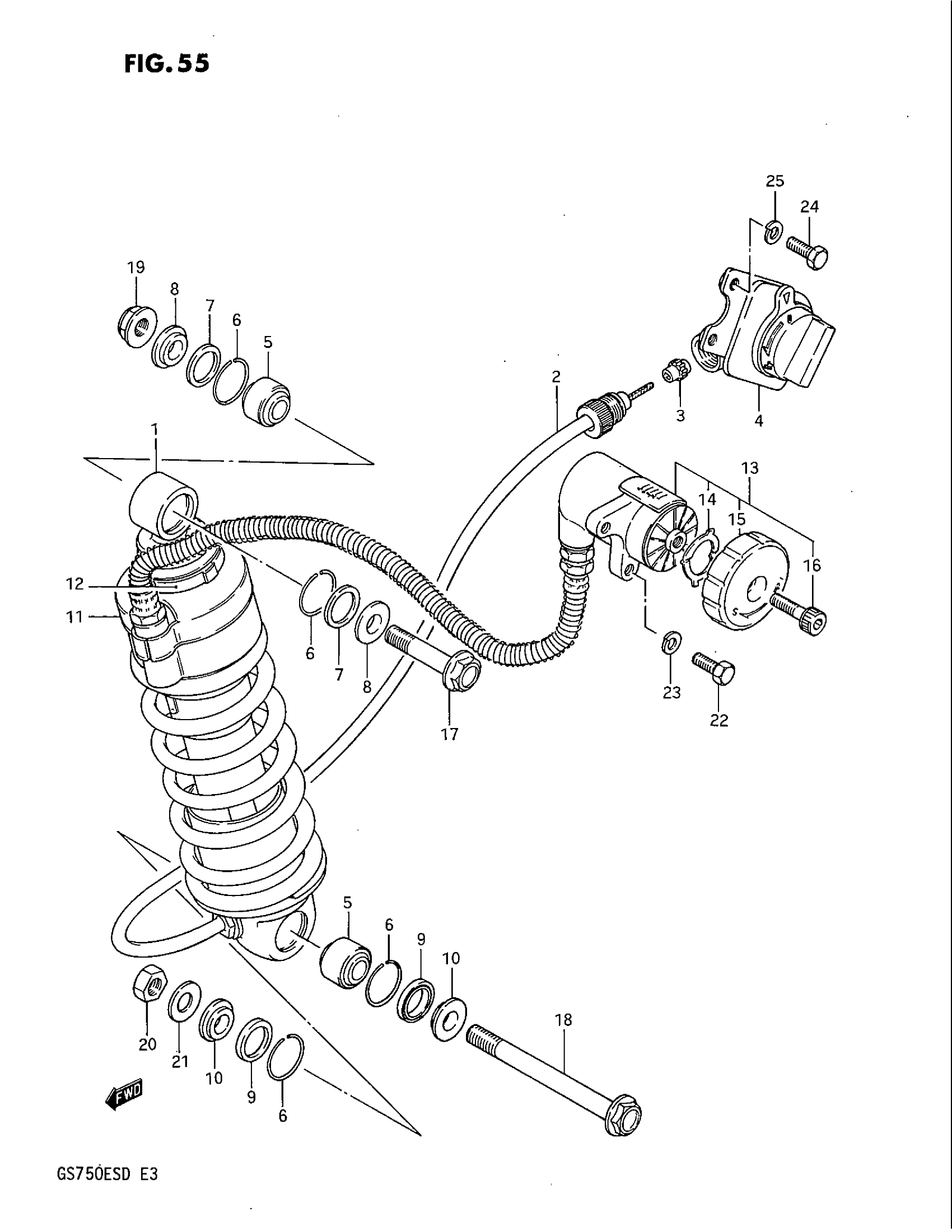

Suzuki GS750E (1983) SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER, REAR | Includes Item(s) 2 - 17 This part replaces 62100-31300.

62100-31350

Unavailable

2

CABLE, CONTROL This part replaces 62358-31300.

62358-31340

Unavailable

3

GEAR This part replaces 62356-31300.

62356-31340

Unavailable

4

ADJUSTER

62350-31300

Unavailable

5

BEARING, REAR (10x24x14.5) This part replaces 09269-10004.

62175-00B00

$57.58

6

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$2.06

7

DUST SEAL, UPPER

62226-20900

$14.73

8

COLLAR, UPPER

62684-20900

$13.72

9

DUST SEAL This part replaces 62226-31300.

62226-02B00

$14.73

10

COLLAR, LOWER

62684-31300

$14.00

11

COVER

62378-31300

Unavailable

12

BAND

62379-09310

Unavailable

13

CAM

62355-31301

Unavailable

14

ADJUSTER, SPRING

62370-31300

Unavailable

15

SET PLATE

62377-31300

Unavailable

16

LEVELING PLATE This part replaces 62375-31300.

62375-31340

Unavailable

17

BOLT This part replaces 62376-31300.

07130-0512B

$2.53

18

BOLT, UPPER

09103-10064

$4.29

19

BOLT, LOWER

09103-10063

$9.50

20

NUT This part replaces 08319-31108.

08319-31107

$2.73

21

NUT This part replaces 08319-31108.

08319-31107

$2.73

22

WASHER This part replaces 08322-21108.

08322-01107

$1.88

23

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

25

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83
