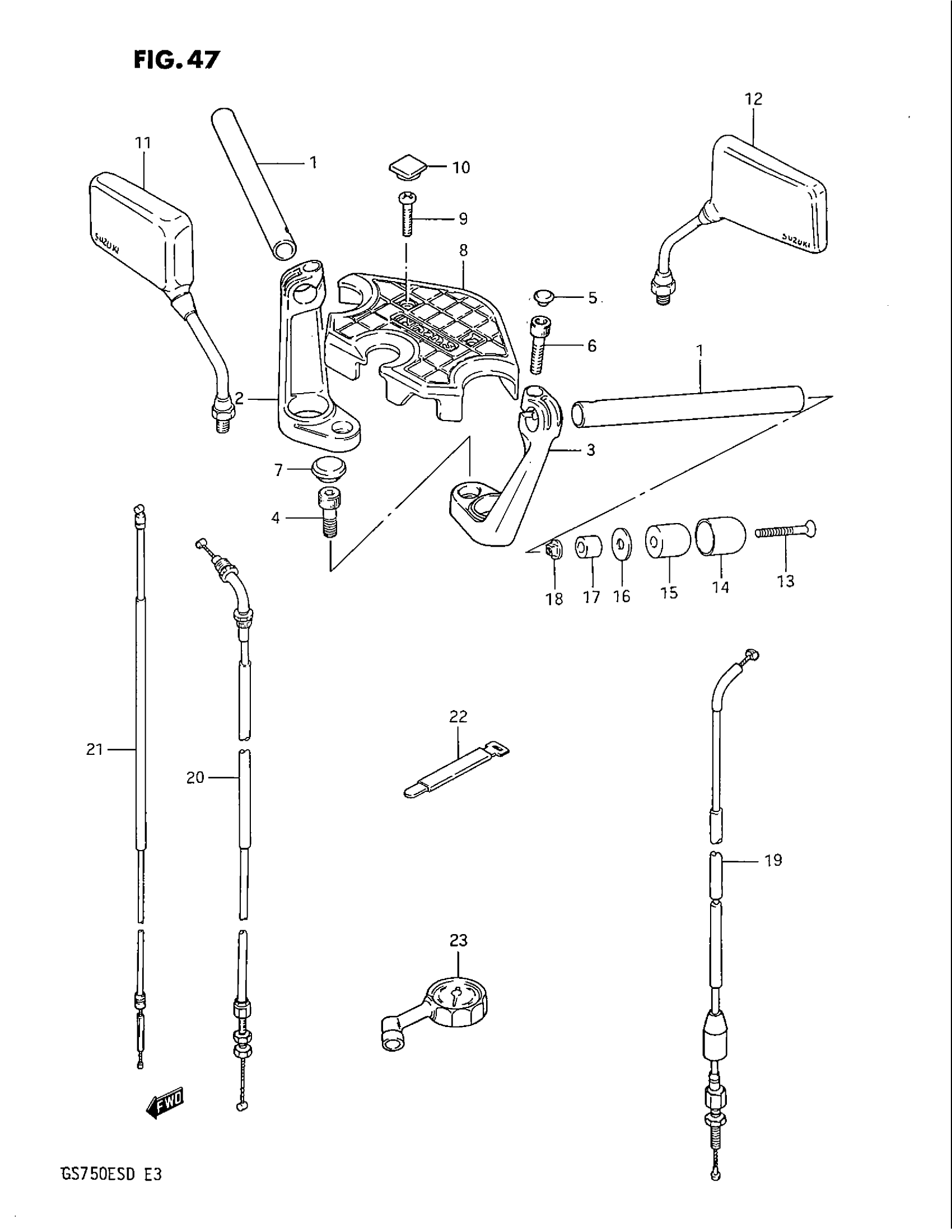

Suzuki GS750E (1983) HANDLE BAR (GS750ED) Diagram

#

Description
Price

1

HANDLE BAR

56111-31330

Unavailable

2

HOLDER, HANDLE BAR, RH | NERTRAL TYPE

56211-31311

Unavailable

3

HOLDER, LH (NEUTRAL) | NERTRAL TYPE This part replaces 56221-31310.

56221-31311

Unavailable

4

BOLT This part replaces 09106-10011.

07130-1030B

$5.83

5

BOLT

09106-10024

Unavailable

6

WASHER This part replaces 09164-10005.

09164-10010

$5.25

7

CLIP

09385-10005

$1.50

8

CAP, BOLT HANDLE BAR

09250-06004

$1.45

9

BOLT This part replaces 07110-08355.

07130-0835B

$3.58

10

WASHER

09164-08015

$2.90

11

CAP This part replaces 57215-43401.

57215-33400

$6.22

12

PAD, STEERING HEAD

56170-31300

Unavailable

13

SCREW This part replaces 02112-06358.

02112-06357

$1.77

14

WASHER This part replaces 08322-21068.

08322-01067

$1.86

15

PLUG

09250-16012

Unavailable

16

MIRROR ASSY,RH This part replaces 56500-31300.

56500-43451

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 56600-31300.

56600-43451

Unavailable

18

SCREW This part replaces 02132-06655.

02122-0665B

$2.79

19

CAP

56274-31300

Unavailable

20

BALANCER

56271-49400

Unavailable

21

SPACER This part replaces 56275-34400.

56275-34401

$4.53

22

EXPANDER

56272-04700

$6.10

23

NUT

09159-06024

$2.12

24

CABLE, CLUTCH (NEUTRAL TYPE) | NERTRAL TYPE This part replaces 58200-31310.

58200-31311

Unavailable

25

CABLE,THROTTLE | NERTRAL TYPE This part replaces 58300-31310.

58300-45501

Unavailable

26

CABLE,STARTER | NERTRAL TYPE This part replaces 58410-31310.

58410-31X01

Unavailable

27

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

28

GAUGE, AIR PRESSURE

96200-41330

Unavailable
