1983 Suzuki GS750E Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1983 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

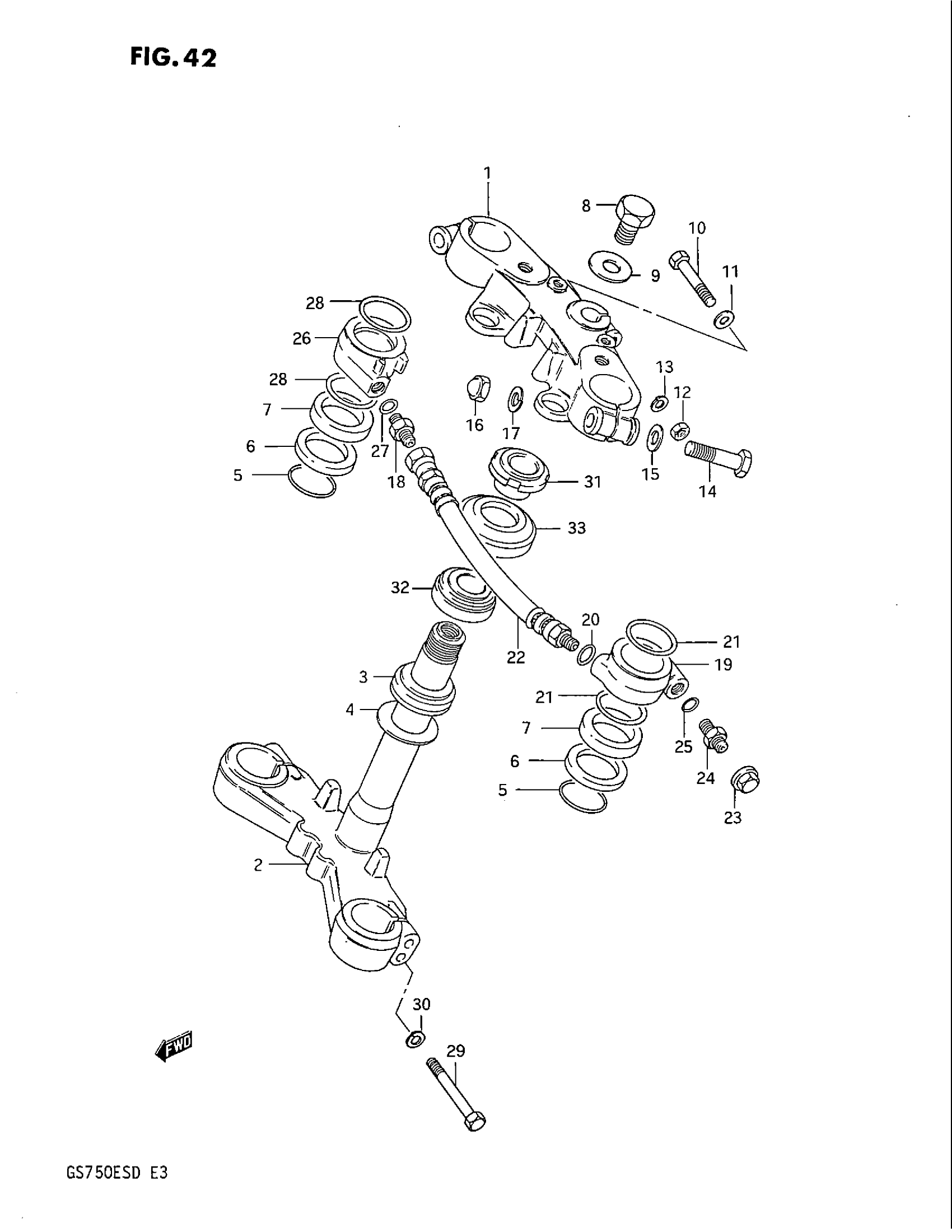

1983 Suzuki GS750E Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM HEAD, STEERING | BLACK

51311-31300-15T

1
Out of stock

2

NO DESCRIPTION AVAILABLE | BLACK; Includes Item(s) 3 - 4 This part replaces 51410-31300-15T.

51410-31330-15T

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

1
Out of stock

5

RING, STOPPER

51424-31340

2
Out of stock

6

WASHER

51555-31340

2
Out of stock

7

CUSHION

51553-31300

2
Out of stock

8

BOLT This part replaces 51352-09300.

51352-31305

1
Out of stock

9

WASHER This part replaces 51356-09300.

51356-43530

1
Out of stock

10

BOLT This part replaces 01107-08508.

01500-08507

1
Out of stock

11

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

12

1

$1.93

In stock

13

1

$2.28

In stock

14

BOLT This part replaces 01107-10558.

01500-1055A

2
Out of stock

15

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

16

NUT

09145-10002

2
Out of stock

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

18

CONNECTOR

51437-33300

1
Out of stock

19

JOINT AIR, LH This part replaces 51432-31300-15T.

51432-31301-15T

1
Out of stock

20

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

1
Out of stock

21

O RING B

51356-34370

2
Out of stock

22

TUBE, JOINT

51433-31300

1
Out of stock

23

CAP This part replaces 51294-33300.

51294-45440

1
Out of stock

24

VALVE, AIR | Includes Item(s) 25

51293-45440

1
Out of stock

25

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

1
Out of stock

26

JOINT AIR, RH This part replaces 51431-31300-15T.

51431-31301-15T

1
Out of stock

27

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

1
Out of stock

28

O RING B

51356-34370

2
Out of stock

29

BOLT This part replaces 01107-08405.

01500-0840A

4
Out of stock

30

4

$1.99

In stock

31

NUT, STEERING STEM

51631-34200

1
Out of stock

32

BEARING, UPPER

09265-25008

1
Out of stock

33

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock
