1985 Suzuki GS700E Rear Swinging Arm Diagram

← All diagrams

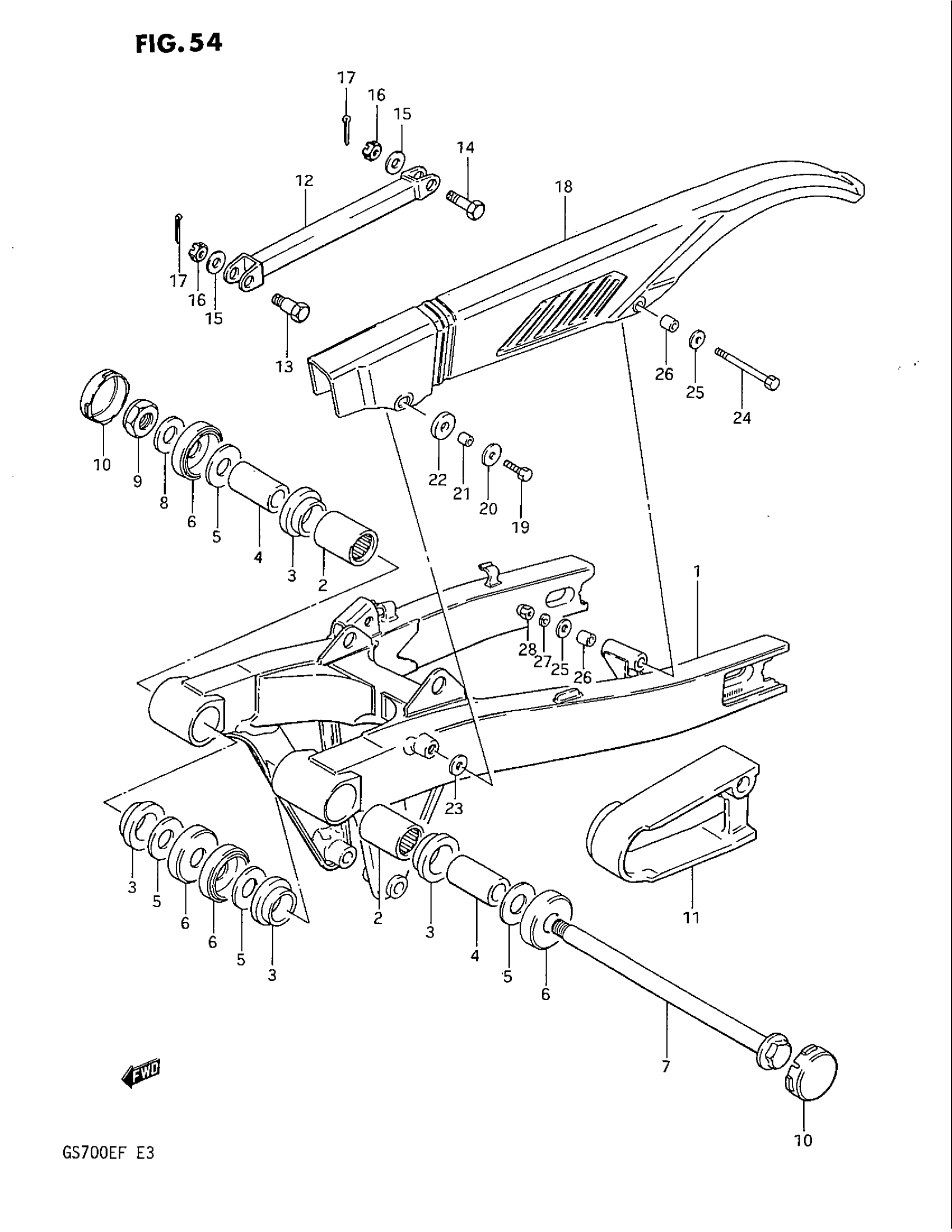

Find the part on the Rear Swinging Arm diagram for your 1985 Suzuki GS700E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS700E Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM SET, REAR | Includes Item(s) 2 - 3

61000-31313

1
Out of stock

2

BEARING

09263-25024

2

$25.58

In stock

3

BUSHING

61261-31300

4
Out of stock

4

SPACER

61251-31300

2
Out of stock

5

WASHER

08211-16381

4

$3.05

In stock

6

4

$11.66

In stock

7

SHAFT, PIVOT

61211-31310

1
Out of stock

8

1

$1.97

In stock

9

NUT This part replaces 09159-14013.

09159-14019

1
Out of stock

10

CAP, PIVOT

61222-31301

2
Out of stock

11

BUFFER, CHAIN DEFENSE

61273-31311

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 64310-31310-291.

64310-31310-294

1
Out of stock

13

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

1
Out of stock

14

BOLT, REAR

09101-10017

1
Out of stock

15

2

$1.97

In stock

16

NUT This part replaces 08314-41108.

08314-4010B

2
Out of stock

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

18

CASE, CHAIN This part replaces 61310-31302-291.

61310-31312

1
Out of stock

19

1

$1.90

In stock

20

1

$1.73

In stock

21

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

1
Out of stock

22

CUSHION

09161-08002

1
Out of stock

23

1

$1.73

In stock

24

BOLT This part replaces 01107-06604.

01500-0660B

1
Out of stock

25

WASHER

09160-06056

2

$2.07

In stock

26

SPACER (6.5X9X3.8) This part replaces 09180-06142.

09180-06255

2
Out of stock

27

1

$1.97

In stock

28

1

$1.97

In stock
