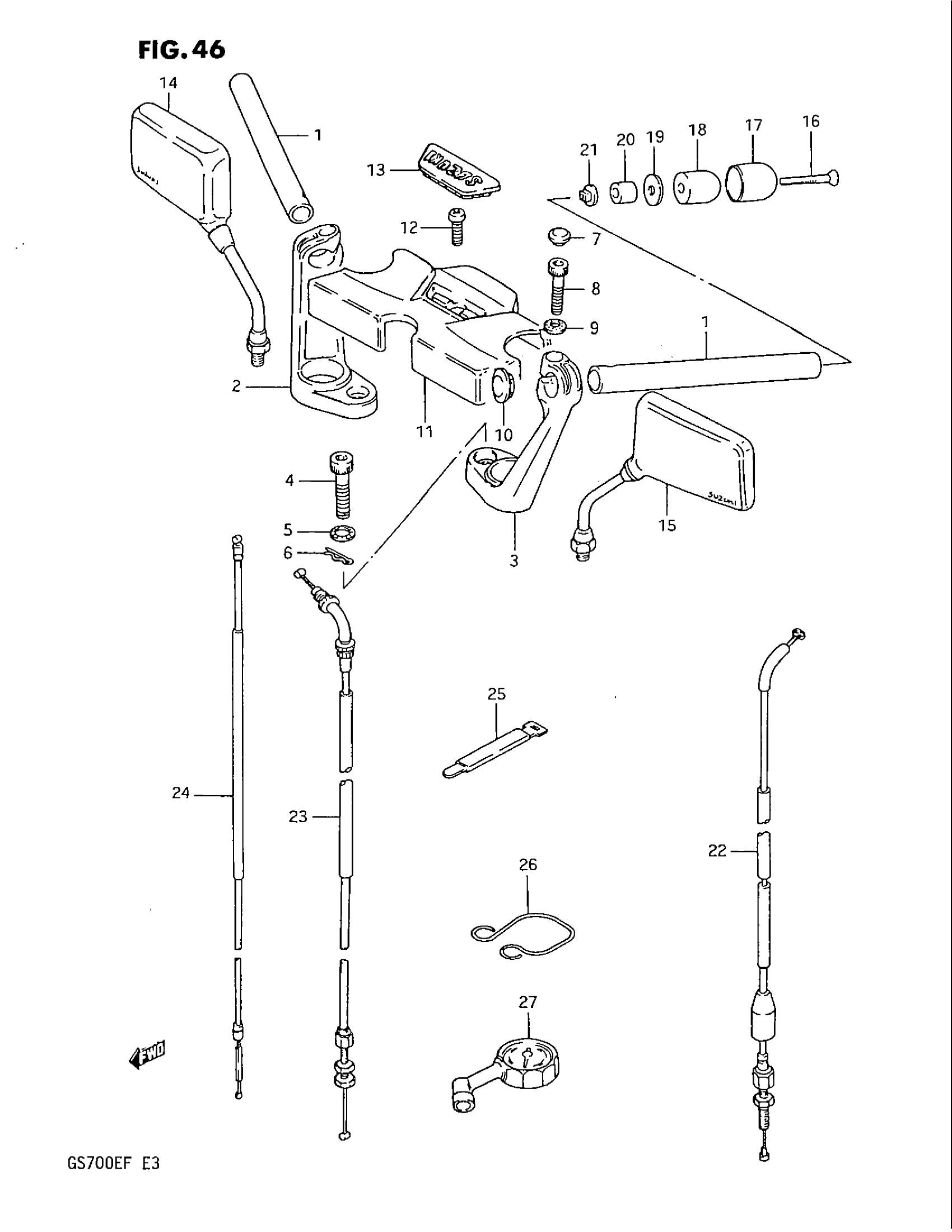

Suzuki GS700E (1985) HANDLEBAR (GS700ESF) Diagram

#

Description
Price

1

HANDLEBAR

56111-31330

Unavailable

2

HOLDER, HANDLEBAR, RH | FLAT TYPE

56211-31301

Unavailable

3

HOLDER, HANDLEBAR, LH | FLAT TYPE

56221-31301

Unavailable

4

BOLT

09106-10024

Unavailable

5

WASHER This part replaces 09164-10005.

09164-10010

$5.25

6

CLIP

09385-10005

$1.50

7

CAP, HANDLEBAR BOLT

09250-06004

$1.45

8

BOLT This part replaces 07110-08355.

07130-0835B

$3.58

9

WASHER

09164-08015

$2.90

10

CAP This part replaces 57215-43401.

57215-33400

$6.22

11

PAD, STEERING HEAD

56170-31310

Unavailable

12

SCREW This part replaces 02112-06168.

02112-06167

$1.43

13

CAP, HANDLE PED

56174-00A00

Unavailable

14

MIRROR ASSY,RH This part replaces 56500-31301.

56500-43451

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 56600-31301.

56600-43451

Unavailable

16

SCREW This part replaces 02132-06655.

02122-0665B

$2.79

17

CAP

56274-31300

Unavailable

18

BALANCER

56271-49400

Unavailable

19

SPACER This part replaces 56275-34400.

56275-34401

$4.53

20

EXPANDER

56272-04700

$6.10

21

NUT

09159-06024

$2.12

22

CABLE, CLUTCH | FLAT TYPE

58200-31300

Unavailable

23

CABLE, THROTTLE | FLAT TYPE

58300-31301

Unavailable

24

CABLE,STARTER | FLAT TYPE This part replaces 58410-31300.

58410-31X00

Unavailable

25

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

26

GUIDE, CABLE

58621-31310

Unavailable

27

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
