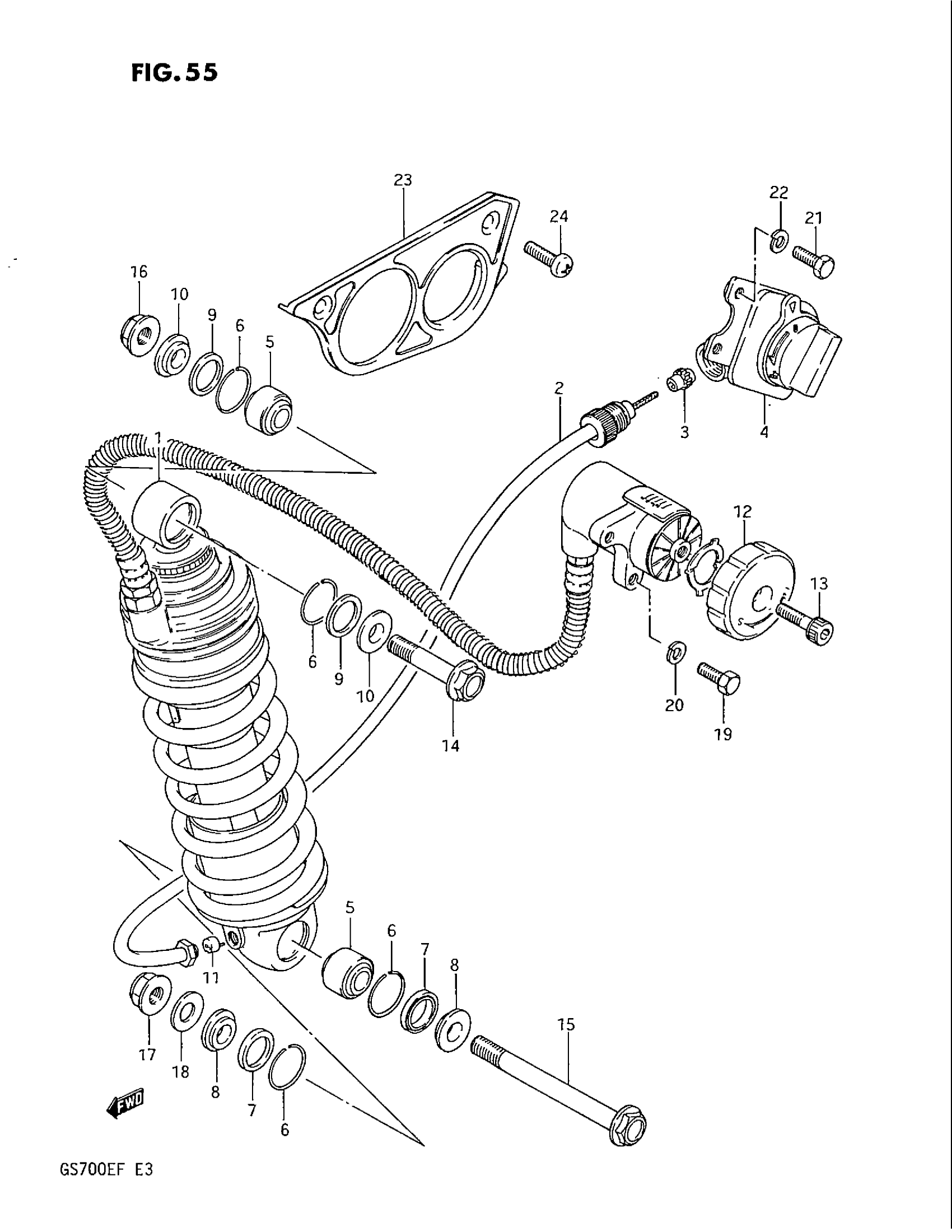

Suzuki GS700E (1985) SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER, REAR | Includes Item(s) 2 - 13

62100-31350

Unavailable

2

CABLE, CONTROL

62358-31340

Unavailable

3

GEAR

62356-31340

Unavailable

4

ADJUSTER

62350-31300

Unavailable

5

BEARING, REAR (10x24x14.5) This part replaces 62175-20920.

62175-00B00

$57.58

6

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$2.06

7

DUST SEAL, LOWER

62226-20900

$14.73

8

COLLAR, LOWER

62684-20900

$13.72

9

DUST SEAL This part replaces 62226-31300.

62226-02B00

$14.73

10

COLLAR, UPPER

62684-31300

$14.00

11

CAM

62355-31301

Unavailable

12

LEVELING PLATE

62375-31340

Unavailable

13

BOLT This part replaces 62376-31300.

07130-0512B

$2.53

14

BOLT, UPPER

09103-10064

$4.29

15

BOLT, LOWER

09103-10063

$9.50

16

NUT This part replaces 08319-31108.

08319-31107

$2.73

17

NUT This part replaces 08319-31108.

08319-31107

$2.73

18

WASHER This part replaces 08322-21108.

08322-01107

$1.88

19

BOLT This part replaces 01107-06165.

01500-0616A

$1.77

20

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

21

BOLT This part replaces 01107-06165.

01500-0616A

$1.77

22

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

23

COVER, ADJUSTER

62361-31300

Unavailable

24

SCREW This part replaces 02112-06205.

02112-0620A

$1.45
