1985 Suzuki GS700E Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1985 Suzuki GS700E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

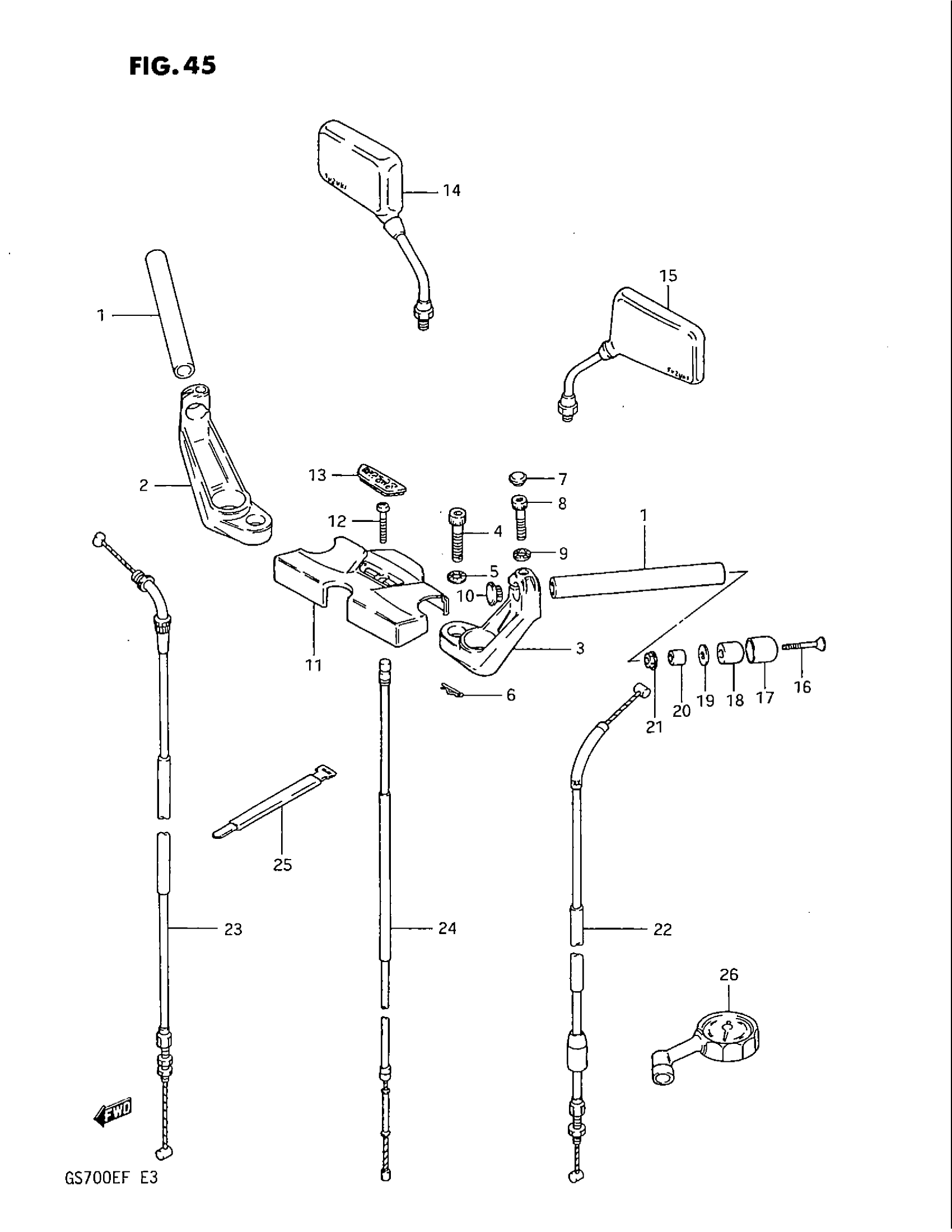

1985 Suzuki GS700E Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-31330

2
Out of stock

2

HOLDER, RH (NEUTRAL TYPE)

56211-00A20

1
Out of stock

3

HOLDER, LH (NEUTRAL TYPE)

56221-00A20

1
Out of stock

4

BOLT

09106-10024

2
Out of stock

5

WASHER This part replaces 09164-10005.

09164-10010

2
Out of stock

6

CLIP

09385-10005

2
Out of stock

7

CAP, BOLT HANDLEBAR

09250-06004

2

$1.55

In stock

8

BOLT This part replaces 07110-08355.

07130-0835B

2
Out of stock

9

WASHER

09164-08015

2
Out of stock

10

CAP This part replaces 57215-43401.

57215-33400

2
Out of stock

11

PAD, STEERING HEAD

56170-31310

1
Out of stock

12

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock

13

CAP, HANDLE PED

56174-00A00

1
Out of stock

14

MIRROR ASSY,RH This part replaces 56500-31301.

56500-43451

1
Out of stock

15

NO DESCRIPTION AVAILABLE This part replaces 56600-31301.

56600-43451

1
Out of stock

16

SCREW This part replaces 02132-06655.

02122-0665B

2
Out of stock

17

CAP

56274-31300

2
Out of stock

18

BALANCER

56271-49400

2
Out of stock

19

SPACER This part replaces 56275-34400.

56275-34401

2
Out of stock

20

EXPANDER

56272-04700

2
Out of stock

21

NUT

09159-06024

2
Out of stock

22

CABLE, CLUTCH (NEUTRAL TYPE)

58200-31311

1
Out of stock

23

CABLE,THROTTLE This part replaces 58300-31311.

58300-45501

1
Out of stock

24

CABLE,STARTER This part replaces 58410-31310.

58410-31X01

1
Out of stock

25

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock

26

GAUGE, FRONT FORK AIR

96200-41330

1
Out of stock
