1982 Suzuki GS650G Wiring Harness Diagram

← All diagrams

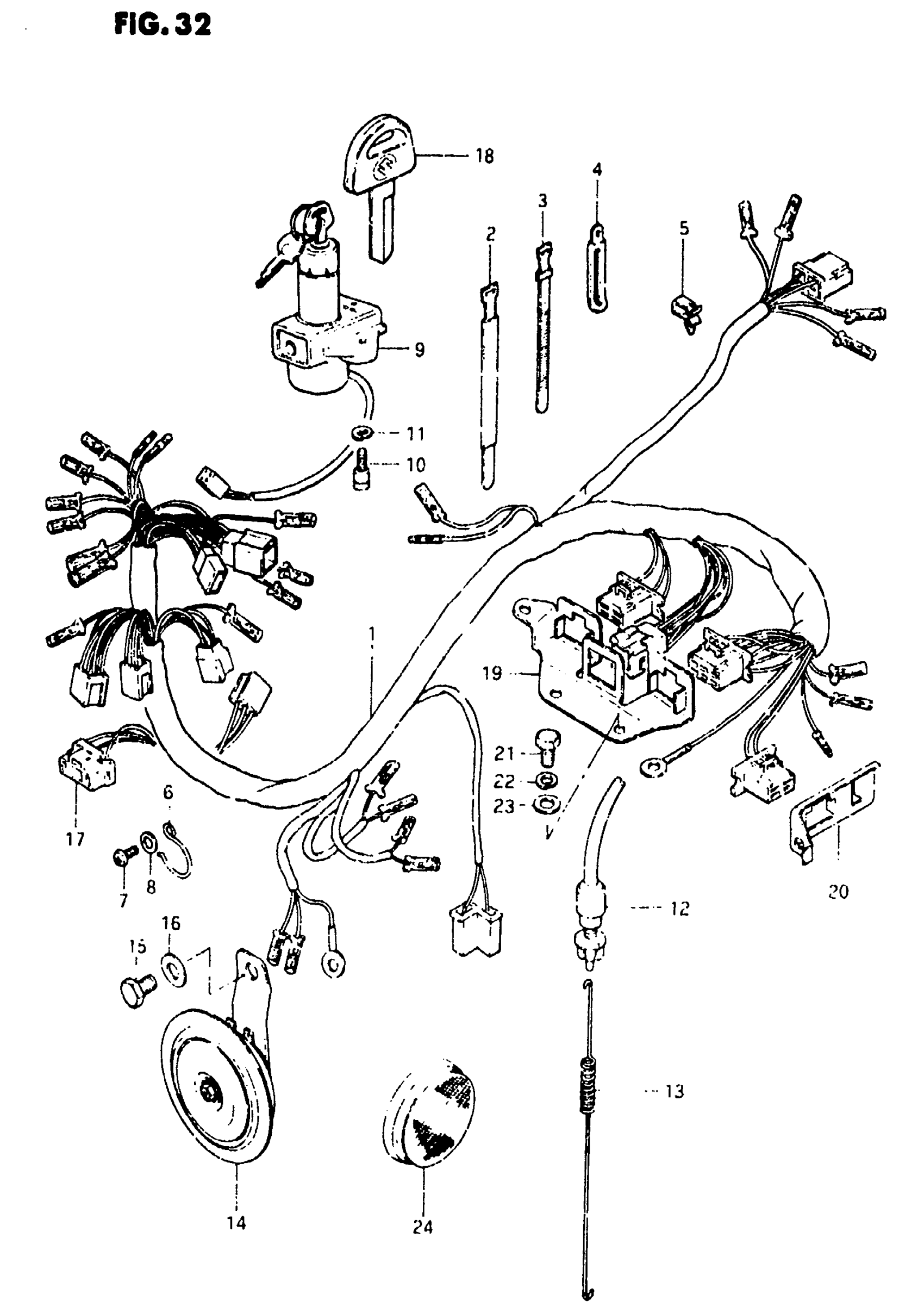

Find the part on the Wiring Harness diagram for your 1982 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS650G Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS | MODEL X

36610-34200

1
Out of stock

1

WIRING HARNESS | MODEL Z

36610-34220

1
Out of stock

2

CLAMP This part replaces 09407-18301.

09407-18302

1
Out of stock

3

CLAMP (L:140)

09407-14401

1
Out of stock

4

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

2
Out of stock

5

CLIP

09403-05305

4
Out of stock

6

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

1
Out of stock

7

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

8

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

9

SWITCH ASSY, IGNITION | Includes Item(s) 10 - 11 This part replaces 37100-47011.

37100-45301

1
Out of stock

10

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

11

2

$2.28

In stock

12

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

1
Out of stock

13

SPRING This part replaces 09443-06018.

09443-06018-XC0

1
Out of stock

14

HORN | MODEL X This part replaces 38500-34220.

38500-34221

1
Out of stock

14

HORN | MODEL Z

38500-34230

1
Out of stock

15

BOLT This part replaces 01107-08128.

01500-08127

1
Out of stock

16

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

17

LEAD WIRE, HEADLAMP | MODEL X This part replaces 36852-34000.

36853-30500

1
Out of stock

18

KEY, BLANK | OPT

37146-47010

1
Out of stock

19

PLATE, COUPLER HOLDER (A)

47450-34200

1
Out of stock

20

PLATE, COUPLER HOLDER (B)

47452-34200

1
Out of stock

21

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

22

2

$2.28

In stock

23

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

24

REFLEX REFLECTOR, FRONT

35950-49080

2
Out of stock
