1982 Suzuki GS650G Rear Combination Lamp Diagram

← All diagrams

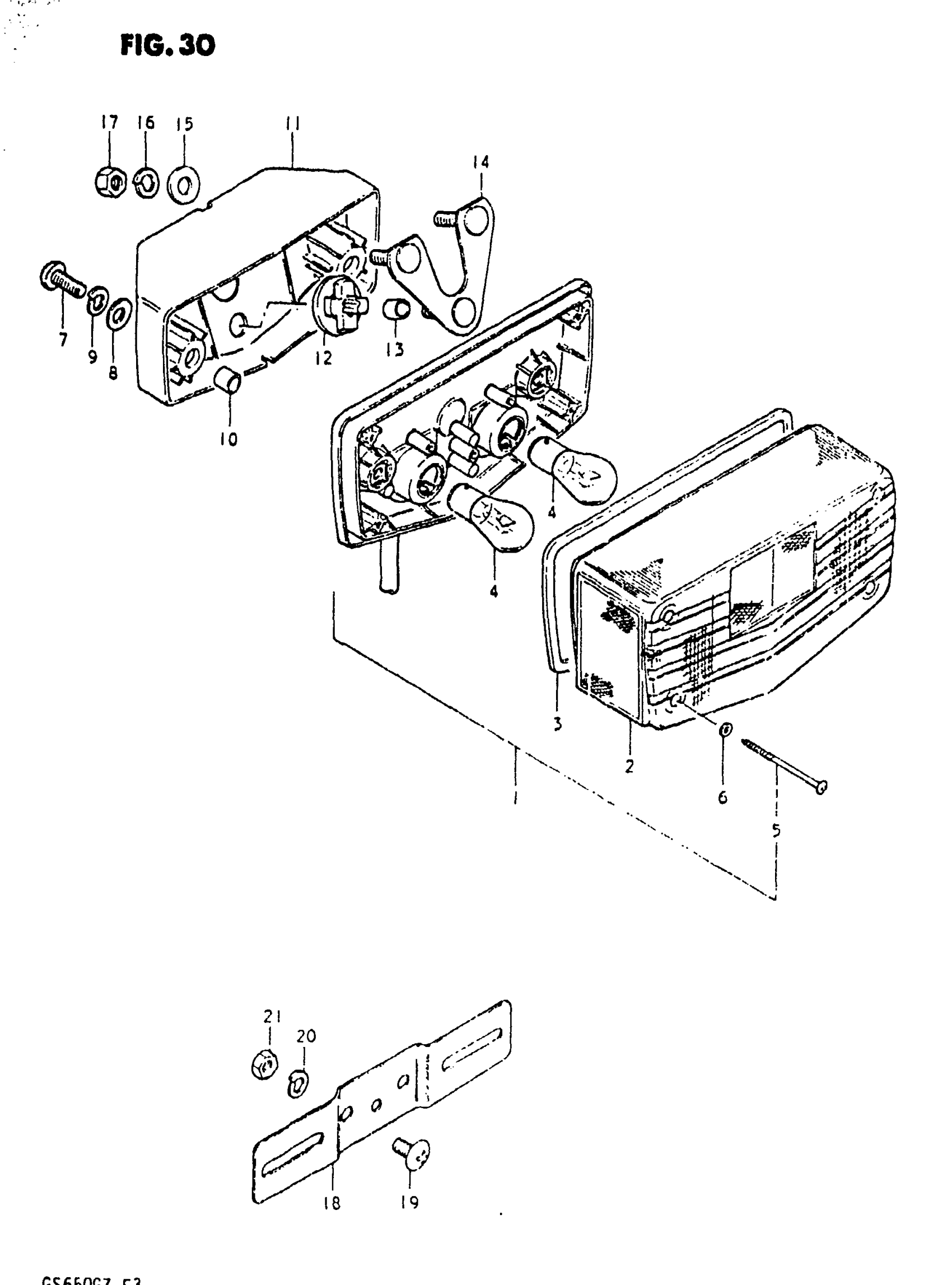

Find the part on the Rear Combination Lamp diagram for your 1982 Suzuki GS650G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS650G Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP,REAR COMBINATION | Includes Item(s) 2 - 10

35720-11430

1
Out of stock

2

LENS

35712-44130

1
Out of stock

3

GASKET

35713-44130

1
Out of stock

4

BULB (12V,32/3CP)

09471-12035

2
Out of stock

5

SCREW

35723-44130

4
Out of stock

6

GASKET

35627-43010

4
Out of stock

7

SCREW This part replaces 02112-06208.

02112-06207

2
Out of stock

8

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

10

SPACER

35766-44130

1
Out of stock

11

BRACKET ASSY | Includes Item(s) 12 - 14

35730-44130

1
Out of stock

12

CUSHION

35765-44130

3
Out of stock

13

SPACER

35767-44130

3
Out of stock

14

PLATE

35727-44130

1
Out of stock

15

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

5
Out of stock

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

3
Out of stock

17

.NUT This part replaces 08310-11068.

08310-00067

3
Out of stock

18

PLATE, LICENCE

35927-44130

1
Out of stock

19

SCREW

02142-06167

2
Out of stock

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

21

.NUT This part replaces 08310-11068.

08310-00067

2
Out of stock
