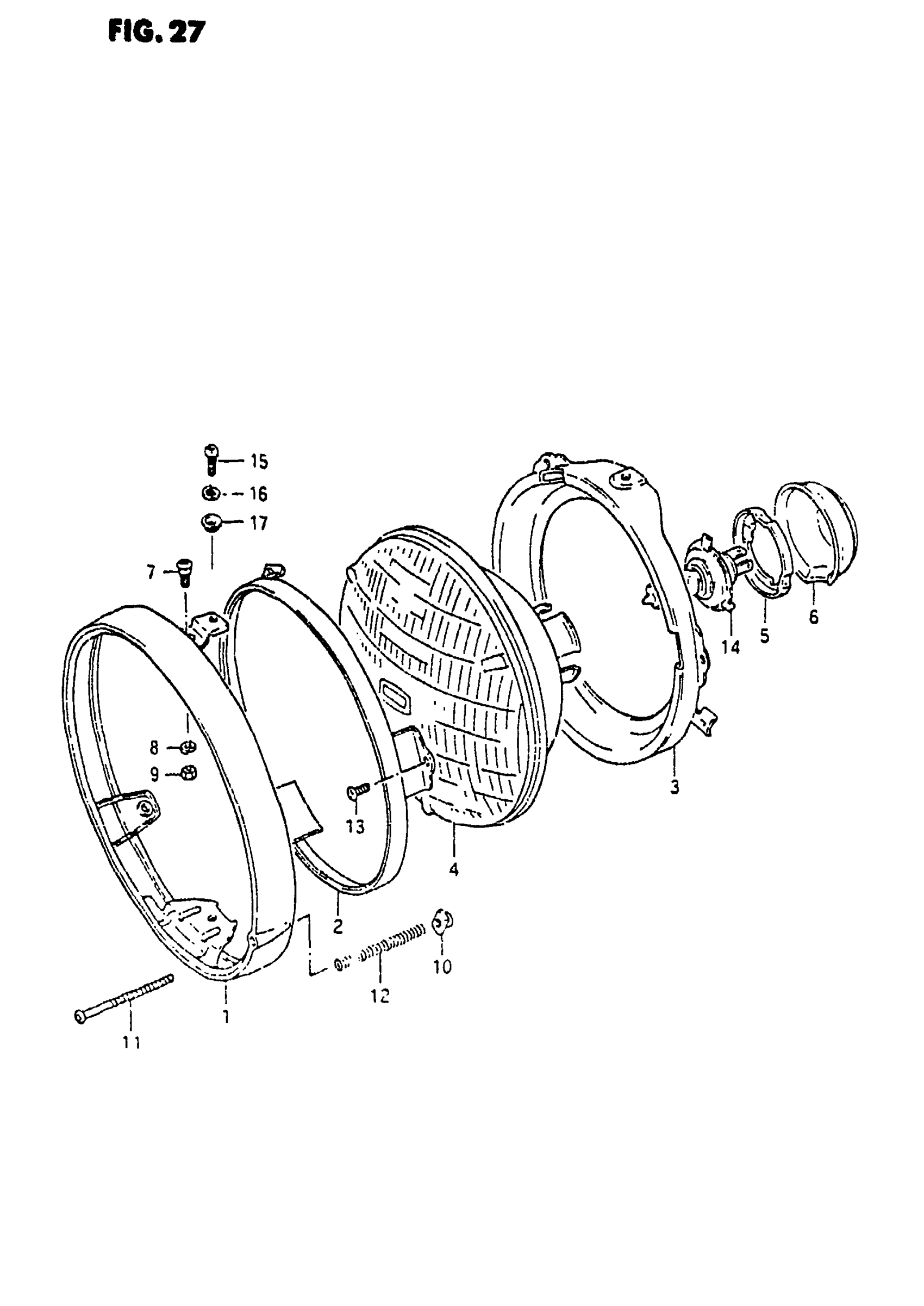

Suzuki GS650G (1982) HEADLAMP Diagram

#

Description
Price

0

HEADLAMP ASSY | Includes Item(s) 1 - 13

35100-34430-999

Unavailable

1

RIM

35111-45030

Unavailable

2

RING

35127-45030

Unavailable

3

RING, MOUNTING

35130-45030

Unavailable

4

UNIT

35121-34430

Unavailable

5

SETTER, BULB

35136-34400

Unavailable

6

COVER, SOCKET This part replaces 35173-45000.

35173-20A01

$20.33

7

SCREW

35181-15611

$3.80

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

9

NUT This part replaces 08310-11048.

08310-00047

$2.43

10

NUT

35152-15611

$3.67

11

SCREW This part replaces 35151-45030.

35151-45900

$3.44

12

SPRING

35154-31900

$6.00

13

SCREW This part replaces 02112-04088.

02112-04087

$1.10

14

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

09471-12060

$22.69

15

SCREW This part replaces 09125-05022.

09125-05115

$2.93

16

WASHER This part replaces 09162-05003.

09162-05002

$1.27

17

WASHER

09169-06021

$2.21
