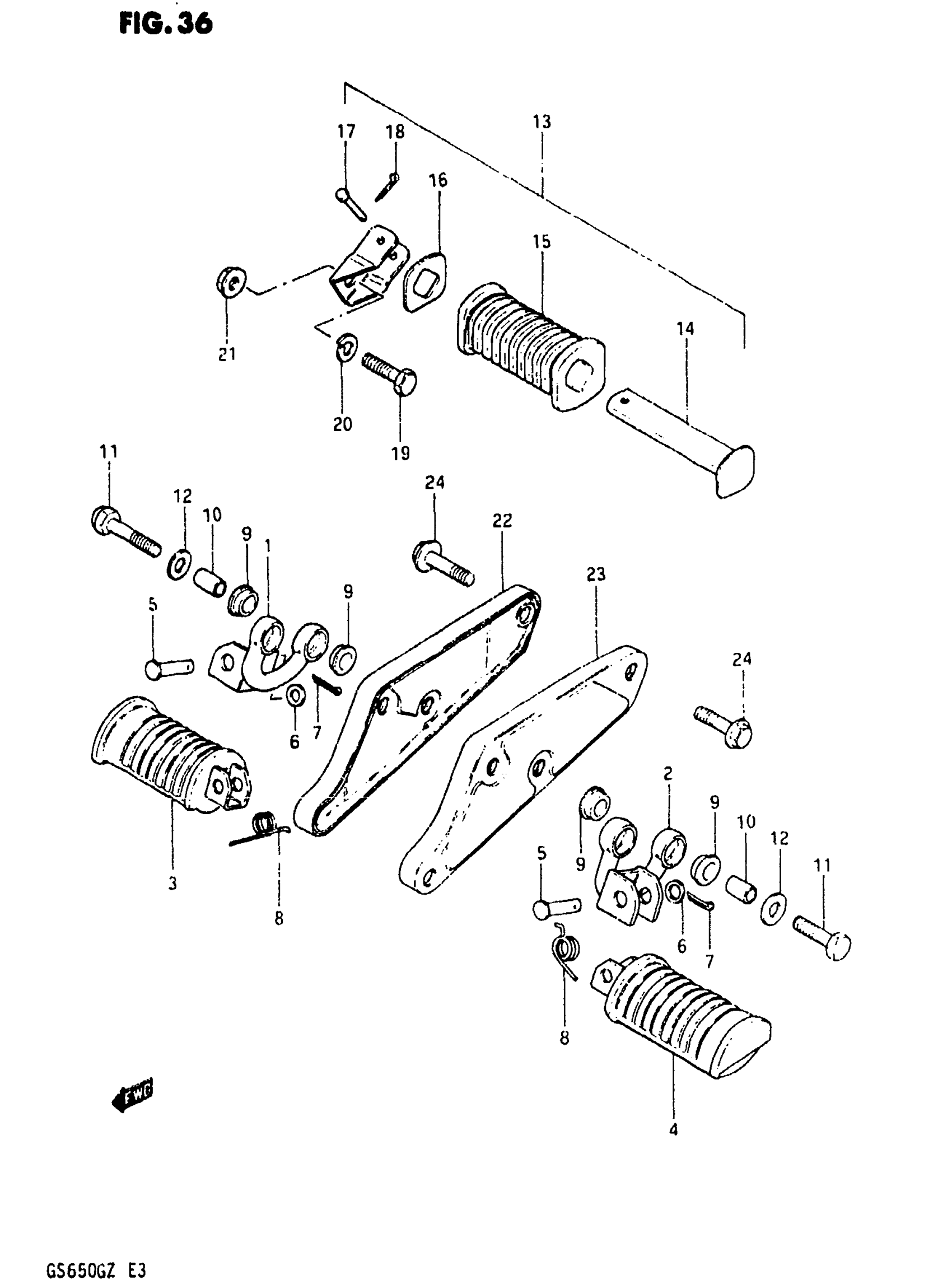

Suzuki GS650G (1982) FOOTREST (MODEL X) Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-34200

Unavailable

2

BAR, FOOTREST LH

43520-34200

Unavailable

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$23.98

4

FOOTREST LH This part replaces 43560-37301.

43560-37310

$30.19

5

PIN

09200-08002

$1.97

6

WASHER This part replaces 08322-11088.

08322-01087

$1.86

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

8

SPRING

09448-14012

$2.80

9

BUSHING

09305-14004

Unavailable

10

SPACER

09180-10066

Unavailable

11

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.25

12

WASHER

09160-10035

$1.80

13

FOOTREST, PILLION RH

43600-34500

Unavailable

13

FOOTREST, PILLION LH | Includes Item(s) 14 - 18

43700-34500

Unavailable

14

BAR, RH

43610-49201

Unavailable

14

BAR, LH

43620-49201

Unavailable

15

RUBBER

43612-49201

Unavailable

16

WASHER This part replaces 43631-49201.

43631-45001

Unavailable

17

PIN

09200-06010

$1.87

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

19

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$4.03

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

21

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.38

22

BRACKET, MUFFLER RH

43810-34200

Unavailable

23

BRACKET, MUFFLER LH

43820-34200

Unavailable

24

BOLT, PROP SHAFT REAR This part replaces 01527-10207.

01550-1020A

$2.80
