1986 Suzuki GS550L Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1986 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

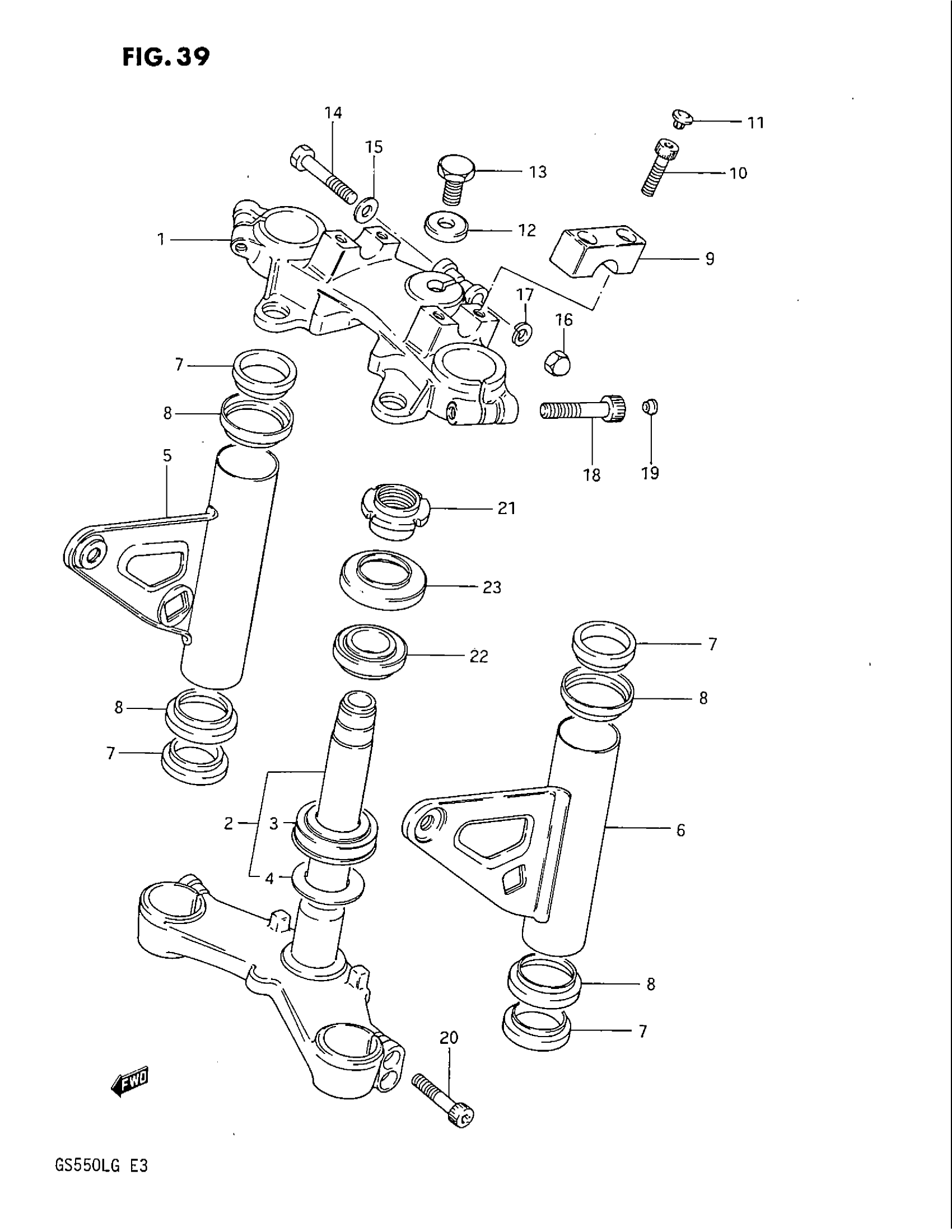

1986 Suzuki GS550L Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING STEM HEAD

51311-43530

1
Out of stock

2

STEM, STEERING (BLACK) | Includes Item(s) 3 - 4

51410-43520-15T

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 51530-43501.

51500-43830

1
Out of stock

6

BRACKET, HEADLAMP LH

51540-43501

1
Out of stock

7

CUSHION, HEADLAMP BRACKET

51553-31300

4
Out of stock

8

COVER

51556-43500

4
Out of stock

9

HOLDER, HANDLEBAR

56211-43530

2
Out of stock

10

BOLT This part replaces 07110-08308.

07130-08307

4
Out of stock

11

CAP

09250-06004

4

$1.55

In stock

12

WASHER

51356-43530

1
Out of stock

13

BOLT

51352-43530

1
Out of stock

14

BOLT This part replaces 01107-08508.

01500-08507

1
Out of stock

15

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock

16

NUT This part replaces 08313-11088.

08313-10087

1
Out of stock

17

1

$2.28

In stock

18

BOLT, LOWER This part replaces 07110-10308.

07130-10307

2
Out of stock

19

CAP

09250-08010

2
Out of stock

20

BOLT This part replaces 07110-08355.

07130-0835B

4
Out of stock

21

NUT, STEERING STEM

51631-34200

1
Out of stock

22

BEARING, UPPER

09265-25008

1
Out of stock

23

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock
