1986 Suzuki GS550L Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1986 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

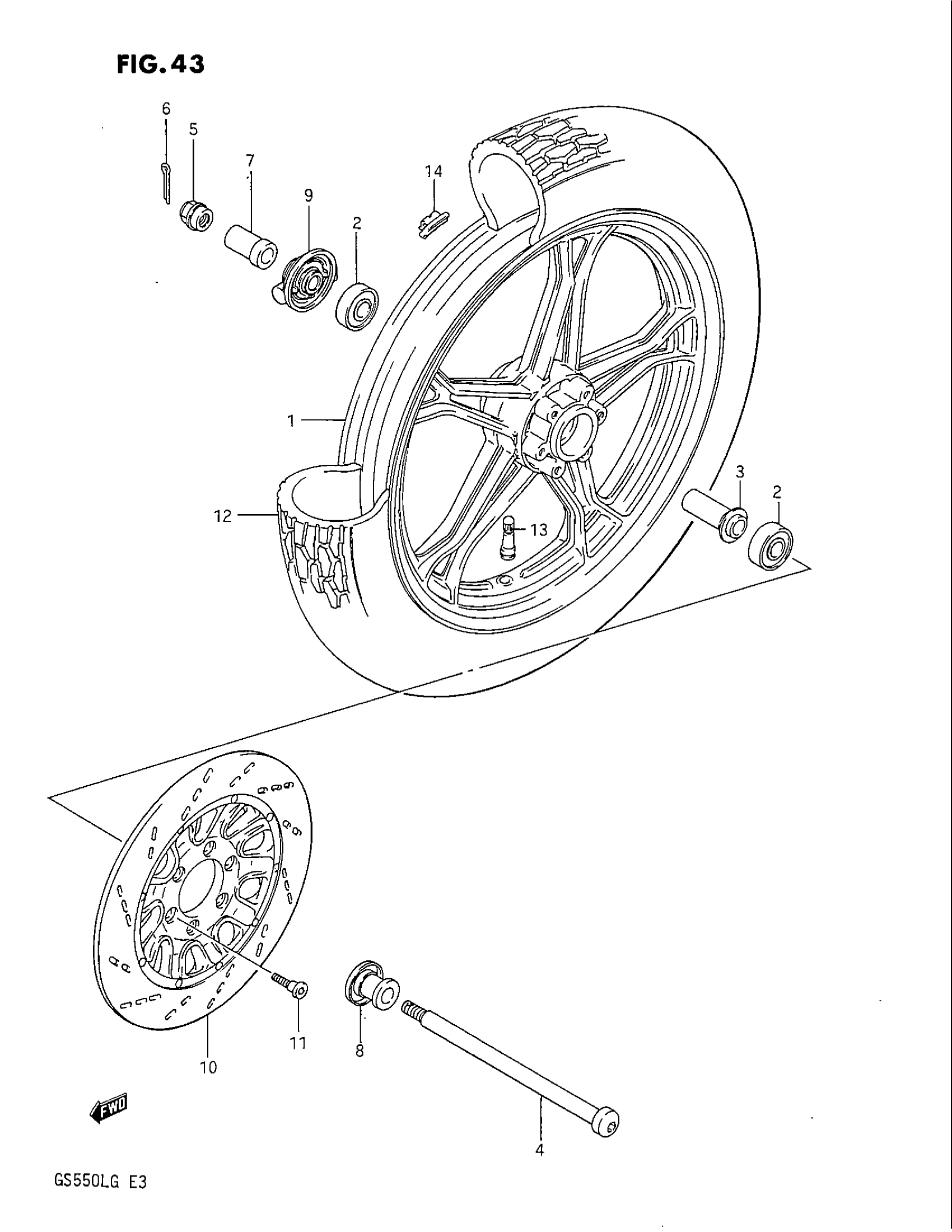

1986 Suzuki GS550L Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (1.85X19) | BLACK

54111-43510-291

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-43500

1
Out of stock

4

AXLE, FRONT

54711-38A01

1
Out of stock

5

NUT

09159-12021

1
Out of stock

6

1

$1.31

In stock

7

SPACER, FRONT AXLE RH

54741-38A00

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 54750-38A10.

54750-38A30

1
Out of stock

9

BOX ASSY, SPEEDOMETER GEAR

54600-49260

1
Out of stock

10

DISC, FRONT BRAKE

59220-49160

1
Out of stock

11

BOLT (8X33) This part replaces 09106-08041.

09106-08148

6
Out of stock

12

TIRE, T/L FRONT(100/90-19 57H | DUNLOP

55100-43560

1
Out of stock

13

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

1
Out of stock

14

BALANCER (10G) This part replaces 55411-00A00-291.

55411-00A00

1
Out of stock

14

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-291.

55412-17G00

1
Out of stock

14

BALANCER (30G) This part replaces 55413-00A00-291.

55413-00A01

1
Out of stock
