1986 Suzuki GS550L Front Fork Diagram

← All diagrams

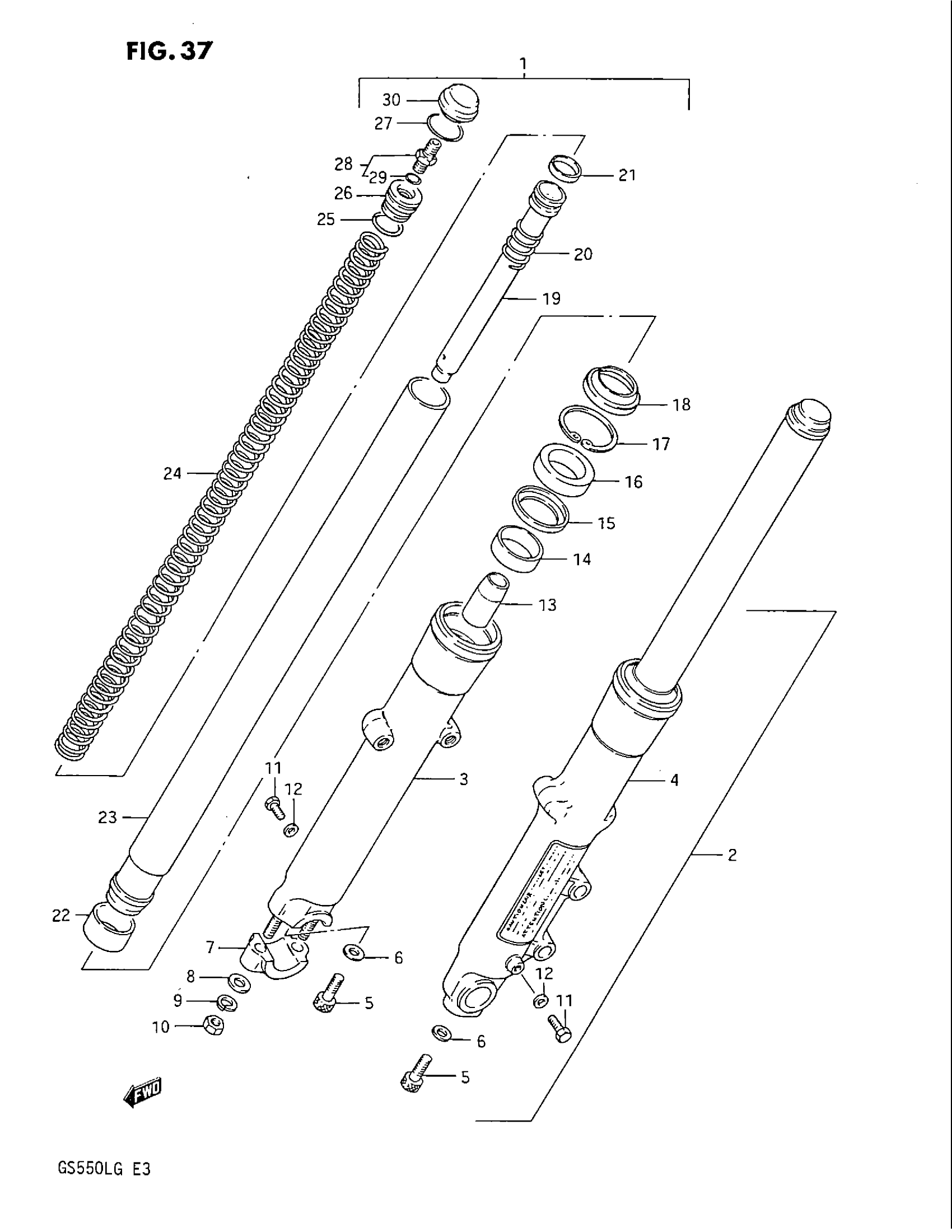

Find the part on the Front Fork diagram for your 1986 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS550L Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH

51103-43530

1
Out of stock

2

DAMPER ASSY, LH | Includes Item(s) 3 - 30

51104-43540

1
Out of stock

3

OUTER TUBE RH

51130-43530

1
Out of stock

4

OUTER TUBE LH

51140-43530

1
Out of stock

5

BOLT

51147-48130

2
Out of stock

6

O RING This part replaces 51148-31030.

51148-36011

2
Out of stock

7

HOLDER, AXLE RH

51132-43500

1
Out of stock

8

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

9

2

$2.28

In stock

10

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

2
Out of stock

11

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

2
Out of stock

12

GASKET

51183-31030

2
Out of stock

13

PIECE, OIL LOCK

51195-43530

2
Out of stock

14

BUSH, GUIDE

51152-31300

2
Out of stock

15

SPACER, SEAL This part replaces 51168-34210.

51168-38A00

2
Out of stock

16

SEAL, OIL This part replaces 51153-09310.

51153-03B30

2
Out of stock

17

RING, STOPPER

51556-34320

2
Out of stock

18

SEAL, DUST This part replaces 51571-43530.

51173-25D00

2
Out of stock

19

CYLINDER

51146-43530

2
Out of stock

20

SPRING

51177-38400

2
Out of stock

21

RING, PISTON

51196-45200

2
Out of stock

22

METAL, SLIDE

51121-34210

2
Out of stock

23

TUBE, INNER

51110-43530

2
Out of stock

24

SPRING

51171-43530

2
Out of stock

25

O RING

51117-43500

2
Out of stock

26

SEAT, SPRING

51172-43500

2
Out of stock

27

RING, STOPPER

51169-47400

2
Out of stock

28

VALVE, AIR

51293-45440

2
Out of stock

29

.O RING (D:1.9,ID:5.7) This part replaces 51117-45400.

09280-06005

2
Out of stock

30

CAP

51189-43500

2
Out of stock
