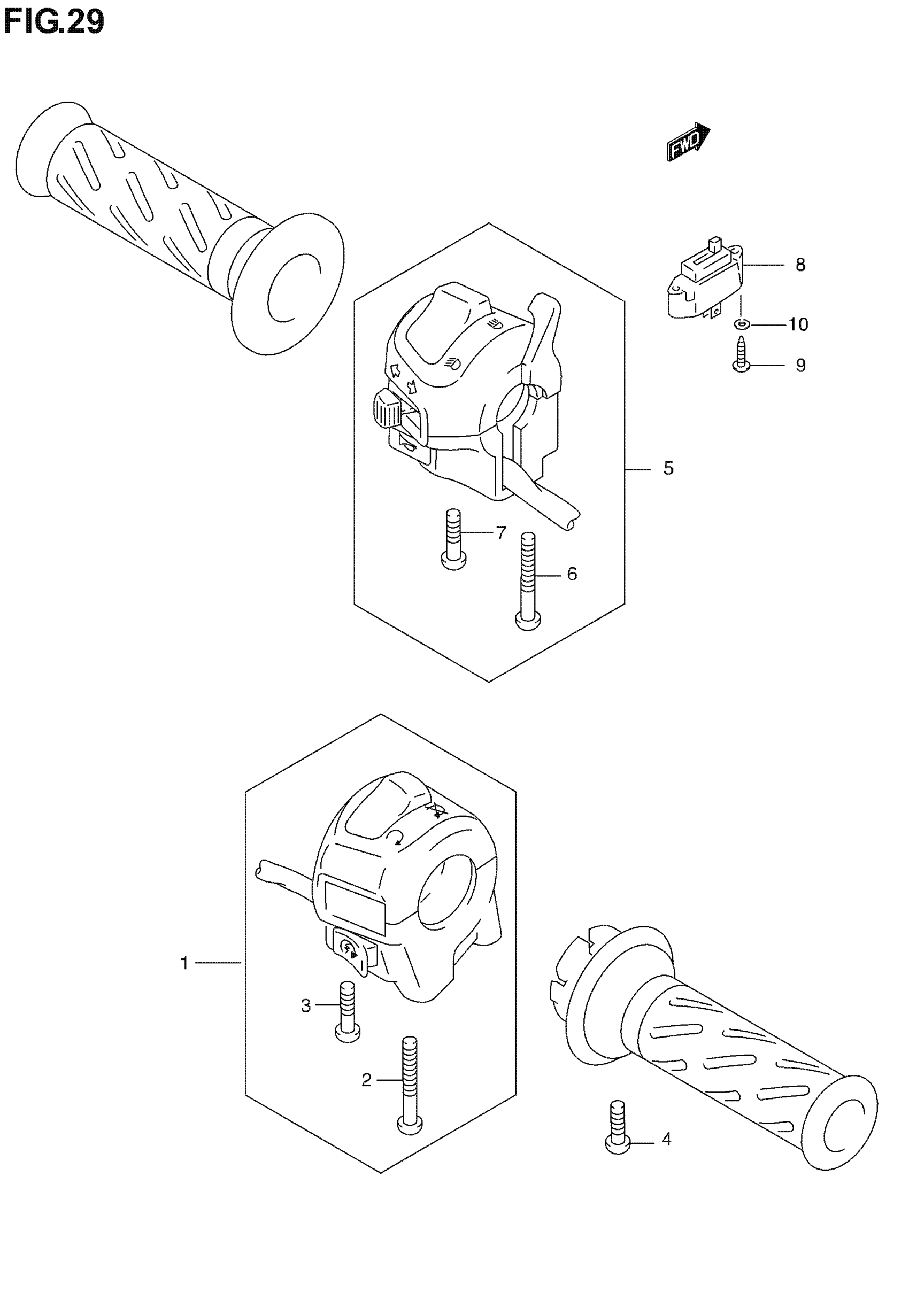

Suzuki GS500F (2006) HANDLE SWITCH (MODEL K4/K5) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3

37200-01DB0

Unavailable

2

SCREW

D2116-05505

Unavailable

3

SCREW

D2116-05305

Unavailable

4

SCREW, THROTTLE CABLE

D2116-05108

Unavailable

5

SWITCH ASSY, HANDLE LH | Includes Item(s) 6 - 7

37400-01DB0

$56.30

6

.SCREW This part replaces D2116-05455.

02112-0545B

$2.24

7

SCREW, PIVOT This part replaces D2116-05255.

02112-0525A

$1.45

8

SWITCH ASSY, CLUTCH

37560-38A00

$16.94

9

SCREW, CLUTCH SWITCH (3X4)

09132-03017

$2.27

10

WASHER This part replaces D8323-41036.

D8323-41036-LCP

Unavailable
