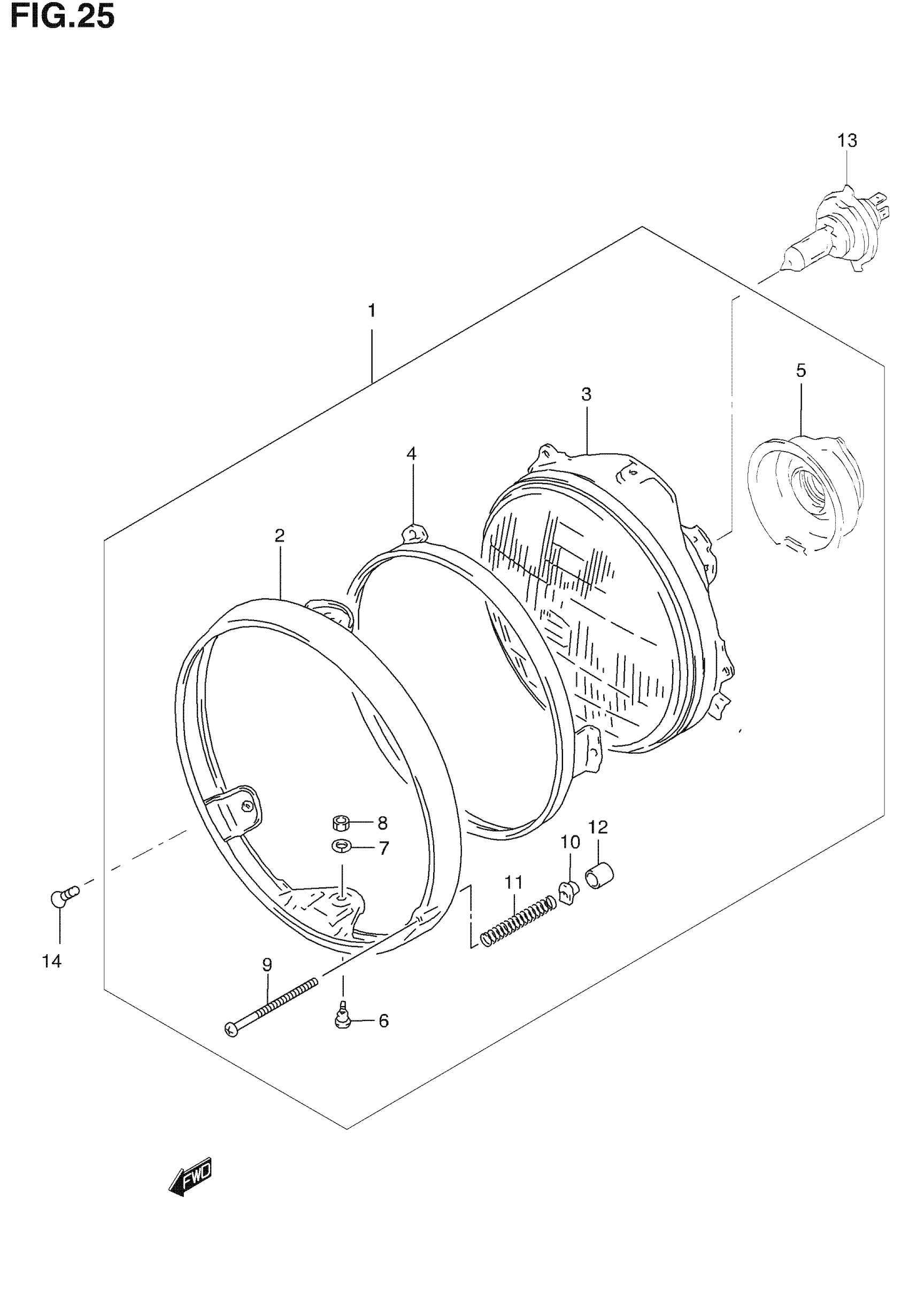

Suzuki GS500F (2006) HEADLAMP (NOT FOR U.S. MARKET) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11

35100-01D80-999

$180.77

2

RIM

35111-0BE00

Unavailable

3

LAMP UNIT

35121-0BE00

Unavailable

4

COVER, SOCKET

35173-0BE00

$10.65

5

SCREW

35181-0BE00

Unavailable

6

WASHER This part replaces D8321-01045.

08321-01047

Unavailable

7

NUT

D8310-00045

Unavailable

8

SCREW, ADJUSTING

35151-0BE00

Unavailable

9

NUT

35152-0BE00

Unavailable

10

SPRING

35154-0BE00

Unavailable

11

SPRING

35174-0BE00

Unavailable

12

BULB (12V60/55W)

09471-12060

$22.69

13

SCREW

D2116-05125

Unavailable

14

REFLEX REFLECTOR, FR SIDE

35950-14A00

$15.95

15

BOLT (5X10)

09119-05023

$13.80

16

WASHER

D8322-01055

Unavailable
