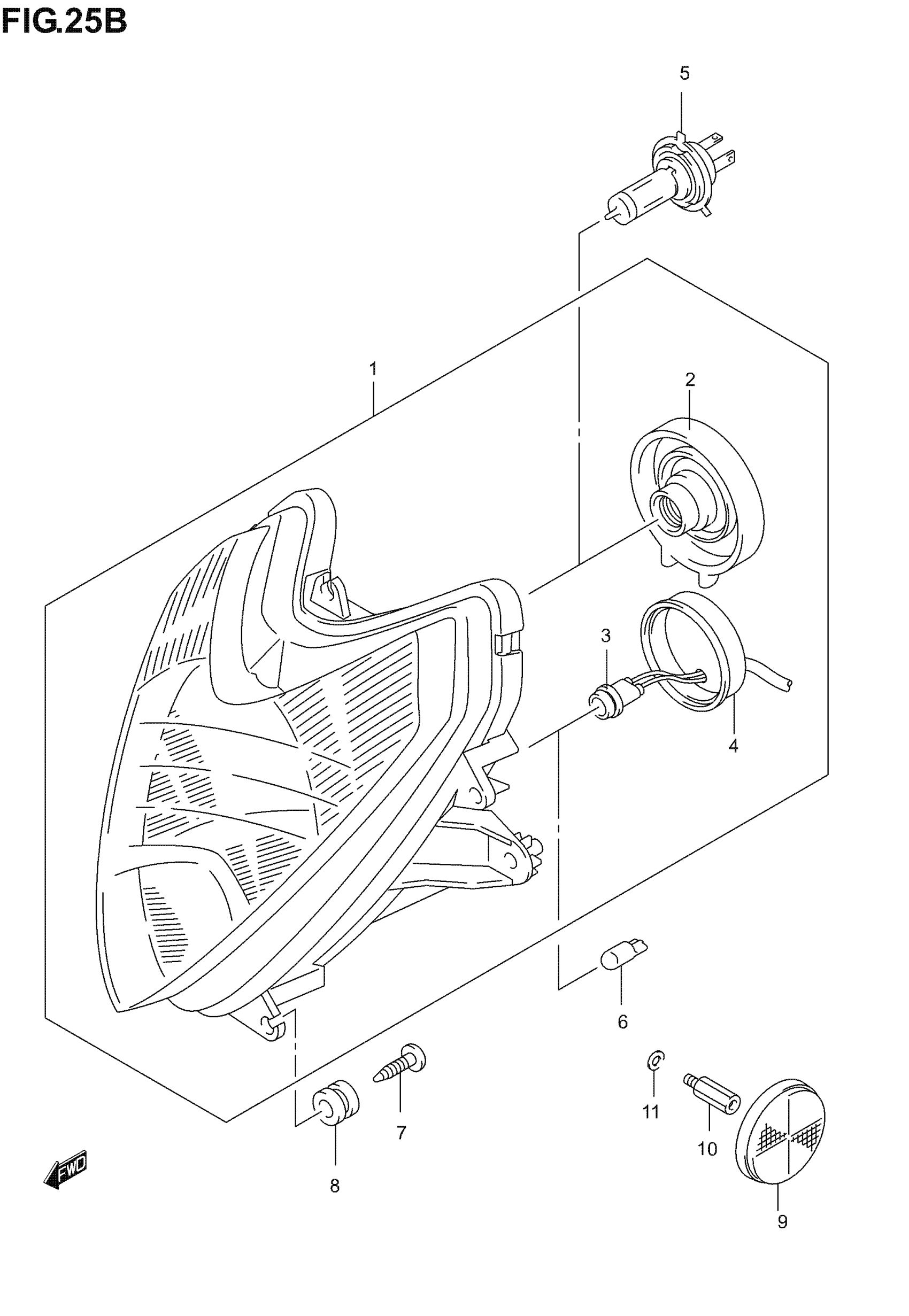

Suzuki GS500F (2006) HEADLAMP (GS500FK4/K5/K6) Diagram

#

Description
Price

1

HEADLAMP ASSY | E3, E28, E33; Includes Item(s) 2 - 3

35100-01DB0-999

Unavailable

2

COVER, SOCKET

35173-0BE10

$5.65

3

CORD ASSY This part replaces 36168-0BE00.

36118-0BE10

Unavailable

3

COVER, SOCKET

35173-0BE20

Unavailable

5

BULB (12V60/55W)

09471-12060

$22.69

6

.BULB (12V5W)

09471-12216

$4.84

7

SCREW

09136-05062

$2.19

8

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$2.95

9

REFLEX REFLECTOR ASSY, FR SIDE

35950-14A00

$15.95

10

BOLT (5X10)

09119-05023

$13.80

11

WASHER

D8322-01055

Unavailable
