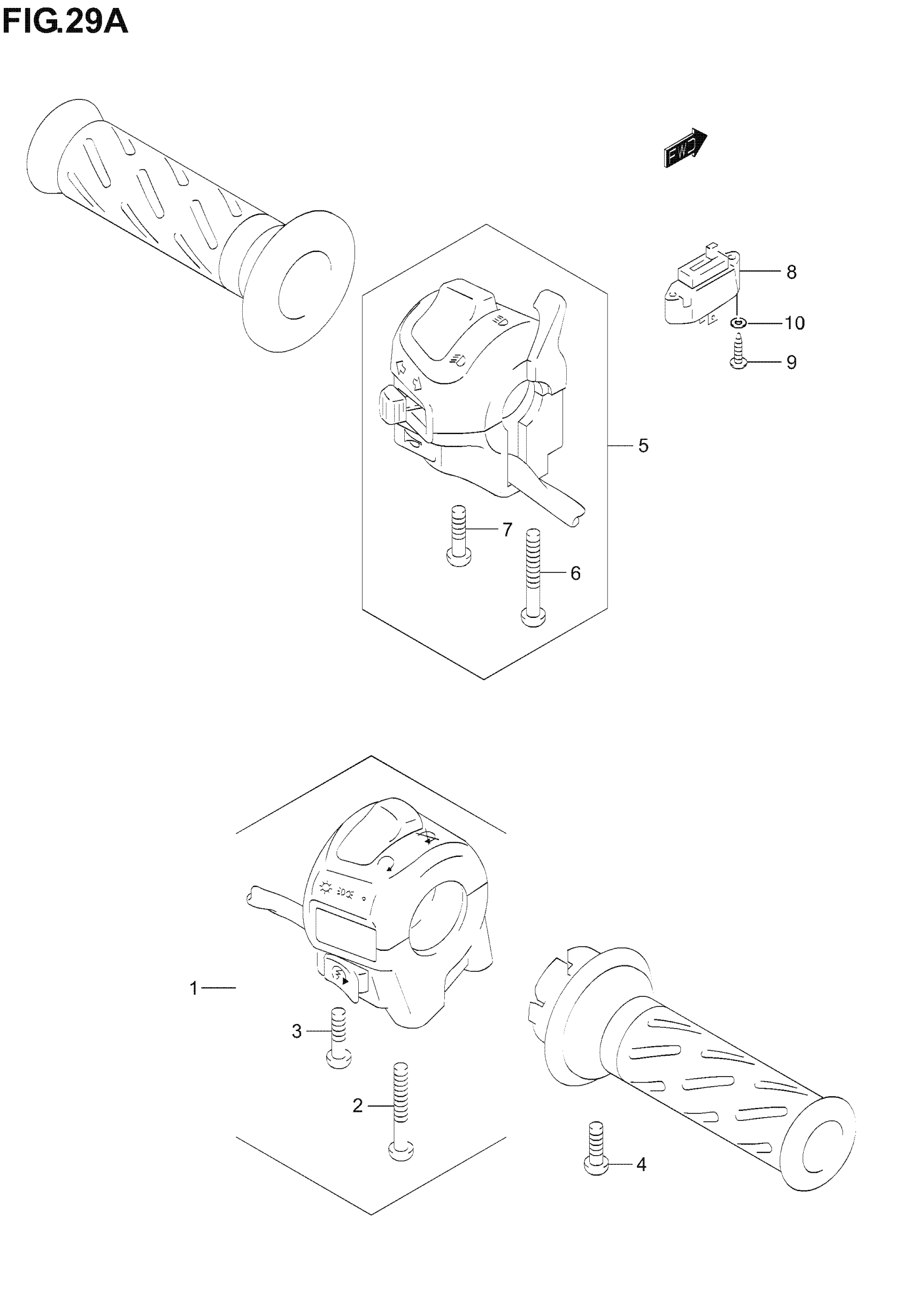

Suzuki GS500F (2006) HANDLE SWITCH (MODEL K6) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3 This part replaces 37200-25DA0.

37200-25DA1

$180.48

2

SCREW This part replaces 02112-05503.

02112-0550B

$2.40

3

SCREW This part replaces 02112-05303.

02112-0530A

$1.93

4

SCREW, THROTTLE CABLE

D2116-05108

Unavailable

5

SWITCH ASSY, HANDLE LH | Includes Item(s) 6 - 7

37400-23E30

$262.35

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24

7

SCREW (5X25)

09125-05066

$1.52

8

SWITCH ASSY, CLUTCH

37560-31F00

$16.94

9

SCREW, CLUTCH SWITCH (3X4)

09132-03017

$2.27

10

WASHER This part replaces D8323-41036.

D8323-41036-LCP

Unavailable
