1996 Suzuki GS500ET Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1996 Suzuki GS500ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

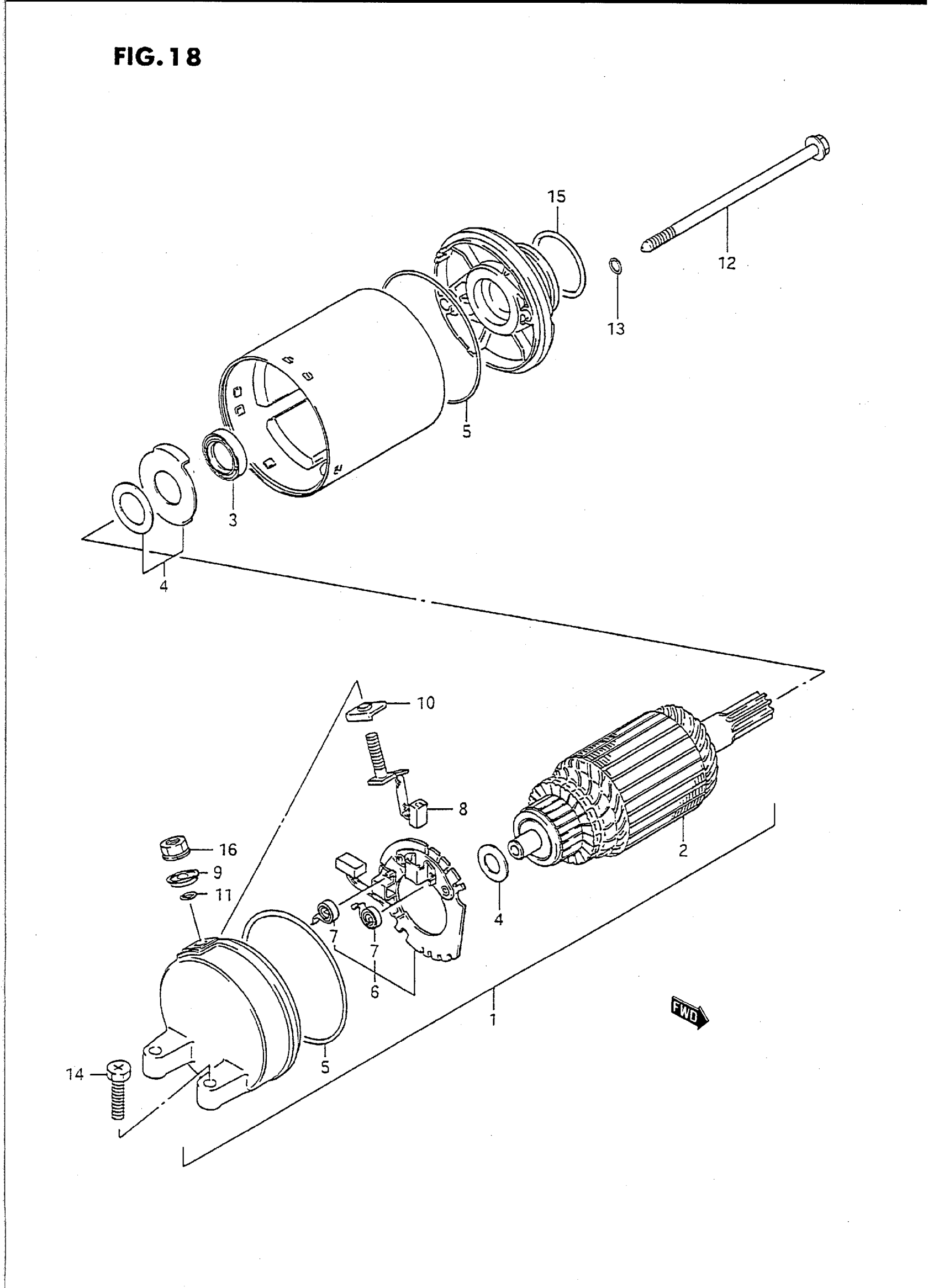

1996 Suzuki GS500ET Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING | MODEL K/L/M/N This part replaces 31100-27A01-H17.

31100-20C01

1
Out of stock

1

MOTOR ASSY, STARTING | MODEL P/R/S/T; Includes Item(s) 2 - 13 This part replaces 31100-20C00.

31100-20C01

1
Out of stock

2

ARMATURE

31310-27A01-H17

1
Out of stock

3

OIL SEAL

31153-43400

1
Out of stock

4

SHIM SET

31170-43400

1
Out of stock

5

O RING

31264-44110

2
Out of stock

6

BRUSH HOLDER ASSY

31132-27A01

1
Out of stock

7

SPRING

31135-65010

2
Out of stock

8

BRUSH

31130-38300

1
Out of stock

9

BUSHING (A)

31172-38300

1
Out of stock

10

BUSHING (B)

31171-38300

1
Out of stock

11

O RING

31143-38300

1
Out of stock

12

BOLT

31281-88C00

2
Out of stock

13

O RING

31156-38300

2
Out of stock

14

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

15

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

16

NUT This part replaces 08361-35066.

08361-3506A

1
Out of stock
