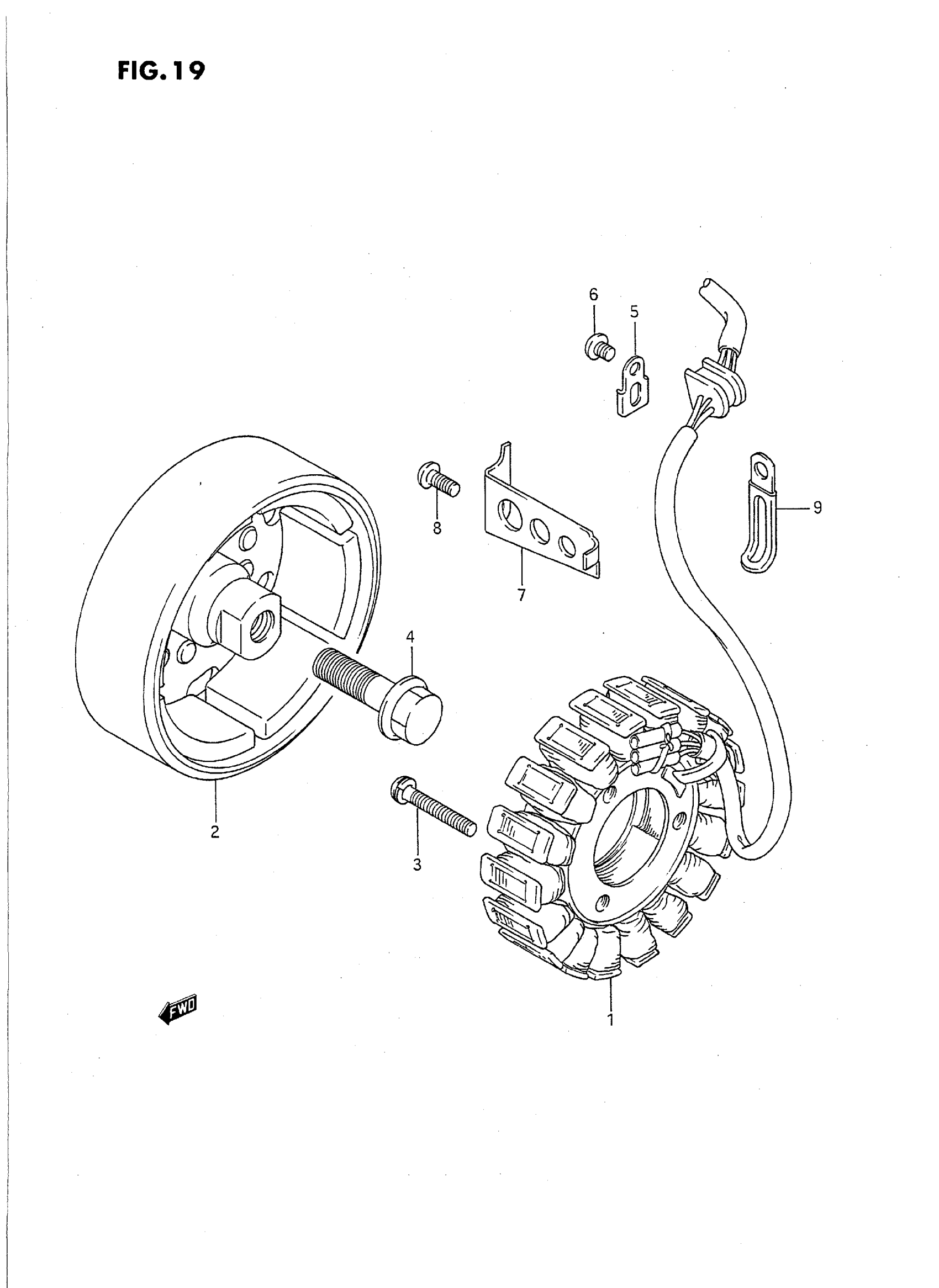

Suzuki GS500ET (1996) GENERATOR Diagram

#

Description
Price

1

STATOR

31401-47030

Unavailable

2

ROTOR | MODEL K/L/M/N/P/R This part replaces 31402-47031.

31402-45030

Unavailable

2

ROTOR | MODEL S/T

31402-45030

Unavailable

3

SCREW | MODEL K/L/M/N/P/R

02112-35307

$3.17

3

SCREW | MODEL S/T This part replaces 02112-35303.

02112-3530A

$2.80

4

BOLT (12X40)

09103-12004

$4.35

5

CLAMP

31497-45000

$2.17

6

SCREW | MODEL K/L/M/N/P/R

02112-05087

$1.45

6

SCREW | MODEL S/T This part replaces 02112-05083.

02112-0508A

$1.43

7

CLAMP

31498-45000

$2.06

8

SCREW | MODEL K/L/M/N/P/R

02112-06107

$1.45

8

SCREW | MODEL S/T This part replaces 02112-06103.

02112-0610B

$1.83

9

CLAMP | MODEL K/L/M/N/P/R This part replaces 09404-06402.

09404-06039

$1.73

9

CLAMP (L:60) | MODEL S/T

09404-06429

$1.82
