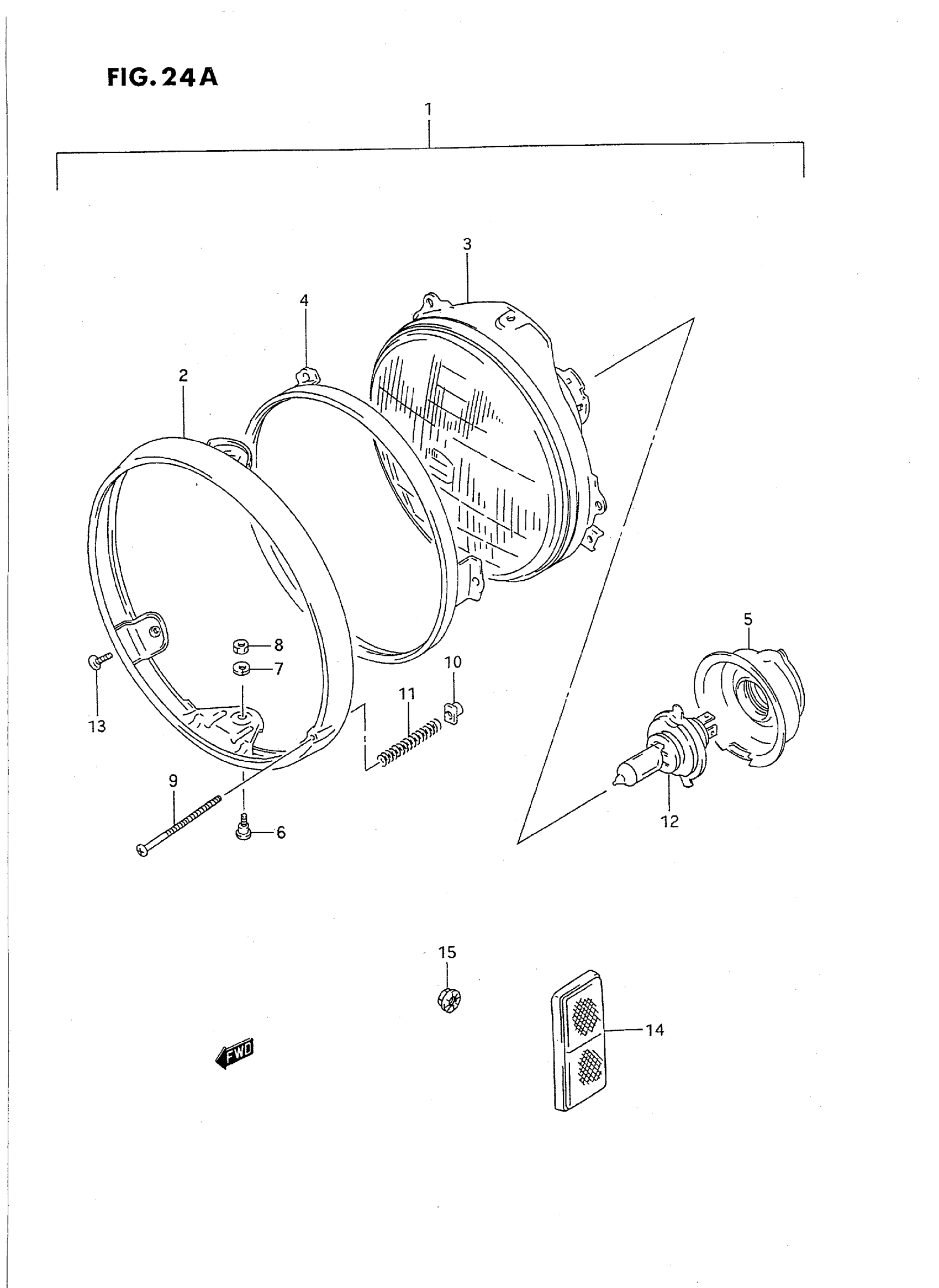

Suzuki GS500ET (1996) HEADLAMP (MODEL R/S/T) Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL R This part replaces 35100-10D30-999.

35100-10D70-999

Unavailable

1

HEADLAMP ASSY | MODEL S This part replaces 35100-10D31-999.

35100-10D70-999

Unavailable

1

HEADLAMP ASSY | MODEL T; Includes Item(s) 2 - 11

35100-10D70-999

Unavailable

2

RIM

35111-01D20

$81.93

3

LAMP UNIT

35121-10D30

Unavailable

4

RING | MODEL R/S

35127-45030

Unavailable

4

RING | MODEL T

35127-10D20

$29.07

5

COVER, SOCKET

35173-20A01

$20.33

6

SCREW

35181-15611

$3.80

7

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.83

8

NUT This part replaces 08310-00053.

08310-0005A

$1.83

9

SCREW, ADJUSTING

35151-45900

$3.44

10

NUT

35152-15611

$3.67

11

SPRING

35154-31900

$6.00

12

BULB (12V,60/55W,H4)

09471-12060

$22.69

13

SCREW

02122-05127

$1.68

14

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$20.13

15

NUT | MODEL R/S This part replaces 08316-26055.

08316-2005A

$2.21

15

NUT | MODEL T This part replaces 08316-20053.

08316-2005A

$2.21
