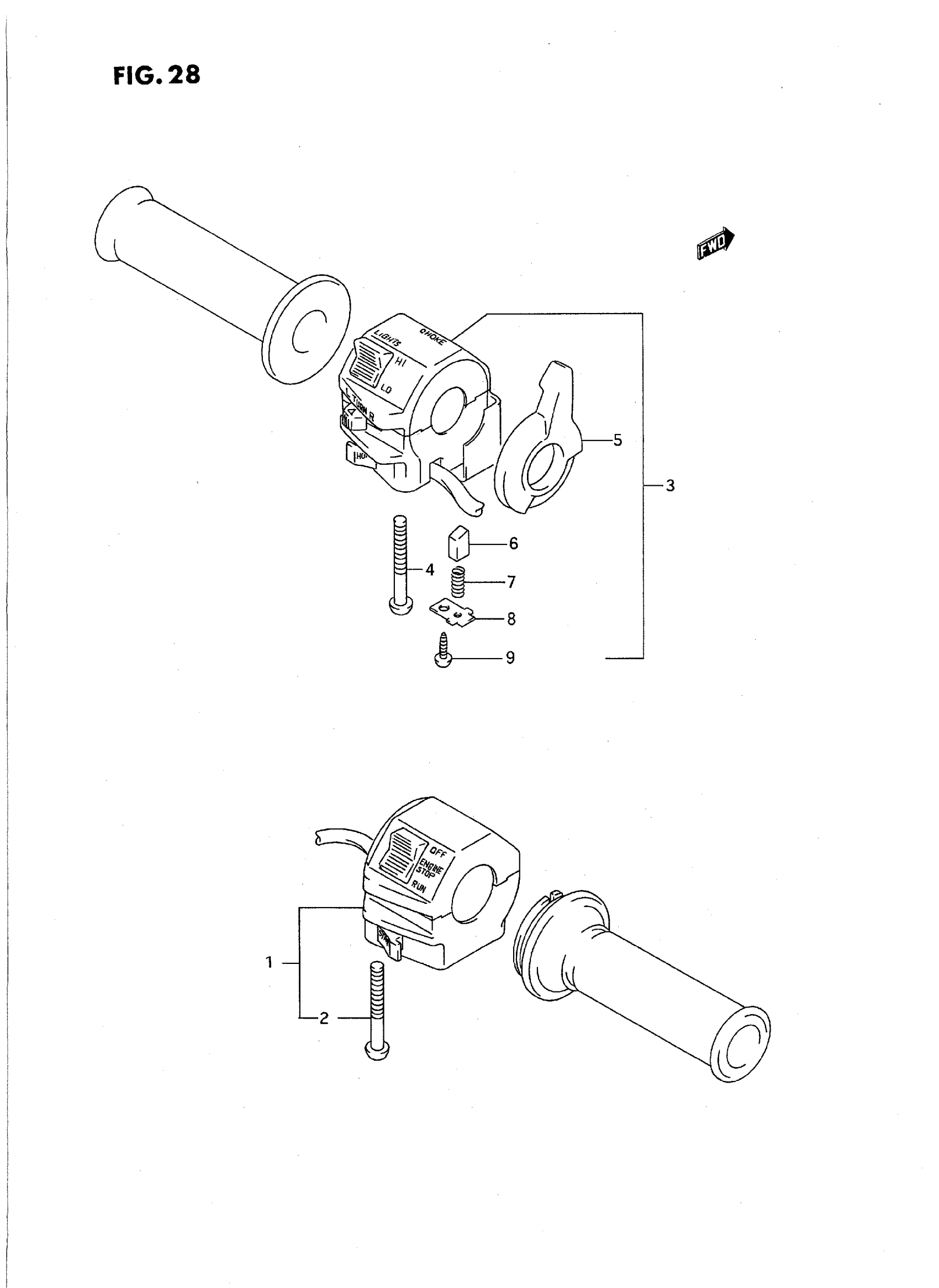

Suzuki GS500ET (1996) HANDLE SWITCH Diagram

#

Description
Price

1

SWITCH ASSY, HANDLE RH | MODEL K This part replaces 37200-01D10.

37200-01D30

Unavailable

1

SWITCH ASSY, HANDLE RH | MODEL L/M/N/P/R/S/T; Includes Item(s) 2 This part replaces 37200-01D11.

37200-01D30

Unavailable

2

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24

3

SWITCH ASSY, HANDLE LH | MODEL K This part replaces 37400-01D11.

37400-01D30

$198.65

3

SWITCH ASSY, HANDLE LH | MODEL L/M/N/P/R/S/T; Includes Item(s) 4 - 9 This part replaces 37400-01D12.

37400-01D30

$198.65

4

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24

5

LEVER, CHOCK This part replaces 37481-30B00.

37481-30B01

Unavailable

6

PIECE, SLIDE

37482-30B00

Unavailable

7

SPRING

37483-30B00

Unavailable

8

PLATE

37486-30B00

Unavailable

9

SCREW This part replaces 03511-04125.

03511-0412A

$0.49
