1996 Suzuki GS500ET Signal Generator Diagram

← All diagrams

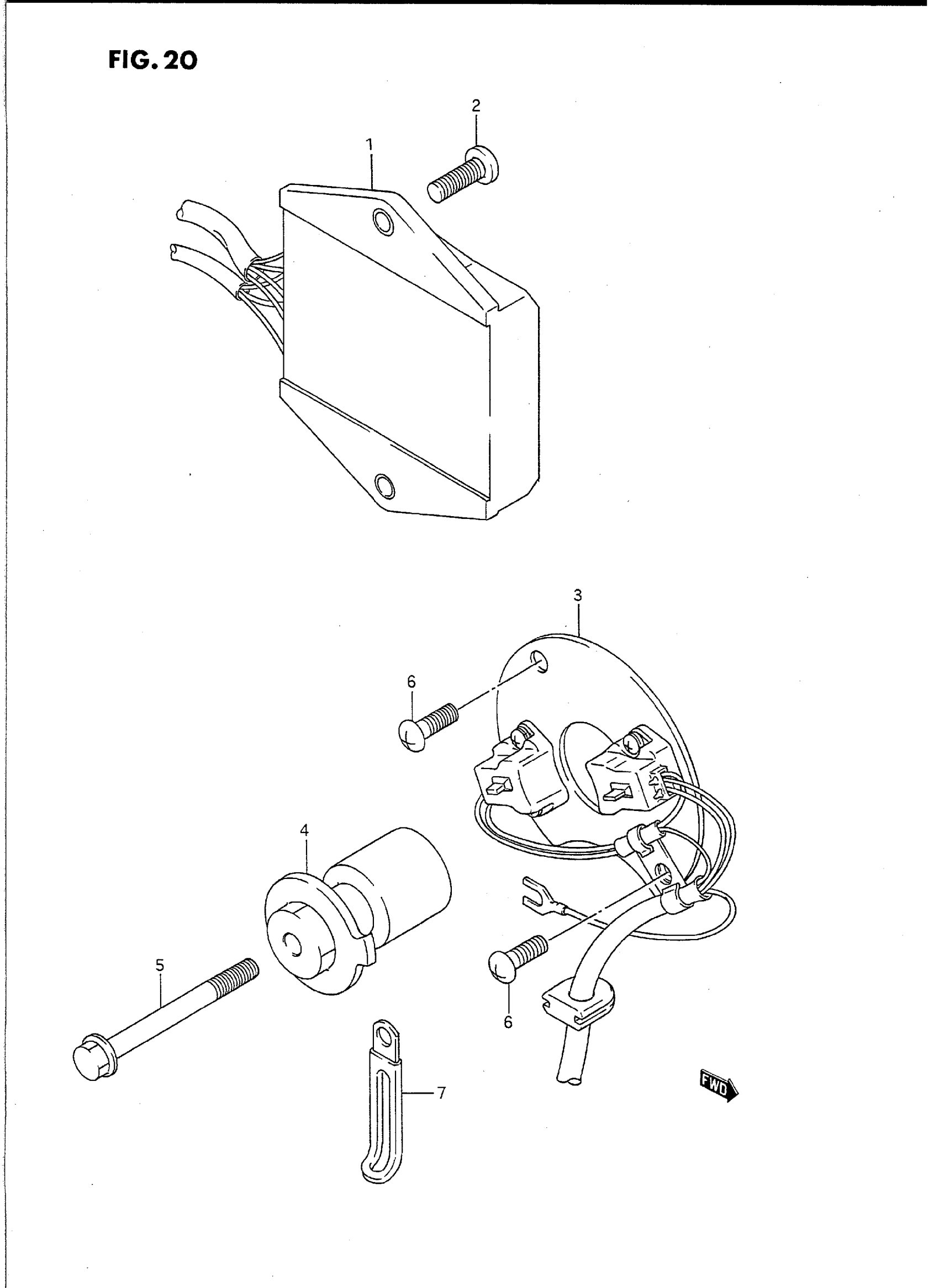

Find the part on the Signal Generator diagram for your 1996 Suzuki GS500ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GS500ET Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITER | MODEL K/L/M/N.P/R/S This part replaces 32900-01D00.

32900-01D20

1
Out of stock

1

IGNITER | MODEL T

32900-01D20

1
Out of stock

1

IGNITER | CALIFORNIA ONLY

32900-01D10

1
Out of stock

2

SCREW | MODEL K/L/M/N This part replaces 02152-06165.

02112-0616A

2
Out of stock

2

SCREW | MODEL P/R/S/T This part replaces 02142-16163.

02142-1616B

2
Out of stock

3

SIGNAL GENERATOR ASSY

33110-44420

1
Out of stock

4

ROTOR, SIGNAL

33120-01D00

1
Out of stock

4

ROTOR, SIGNAL | CALIFORNIA ONLY

33120-01D10

1
Out of stock

5

BOLT (6X60) | MODEL K/L/M/N/P This part replaces 09103-06121.

09103-06064

1
Out of stock

5

BOLT (6X60) | MODEL R/S/T

09103-06064

1
Out of stock

6

SCREW | MODEL K/L/M/N

09125-05024

2
Out of stock

6

SCREW, THROTTLE | MODEL P/R/S/T This part replaces 02112-05103.

02112-0510A

2
Out of stock

7

CLAMP (L:60) | MODEL K/L/M/N/P/R This part replaces 09404-06422.

09404-06429

2
Out of stock

7

CLAMP (L:45) | MODEL S/T

09404-06429

2
Out of stock
