1982 Suzuki GS450L Steering Stem Diagram

← All diagrams

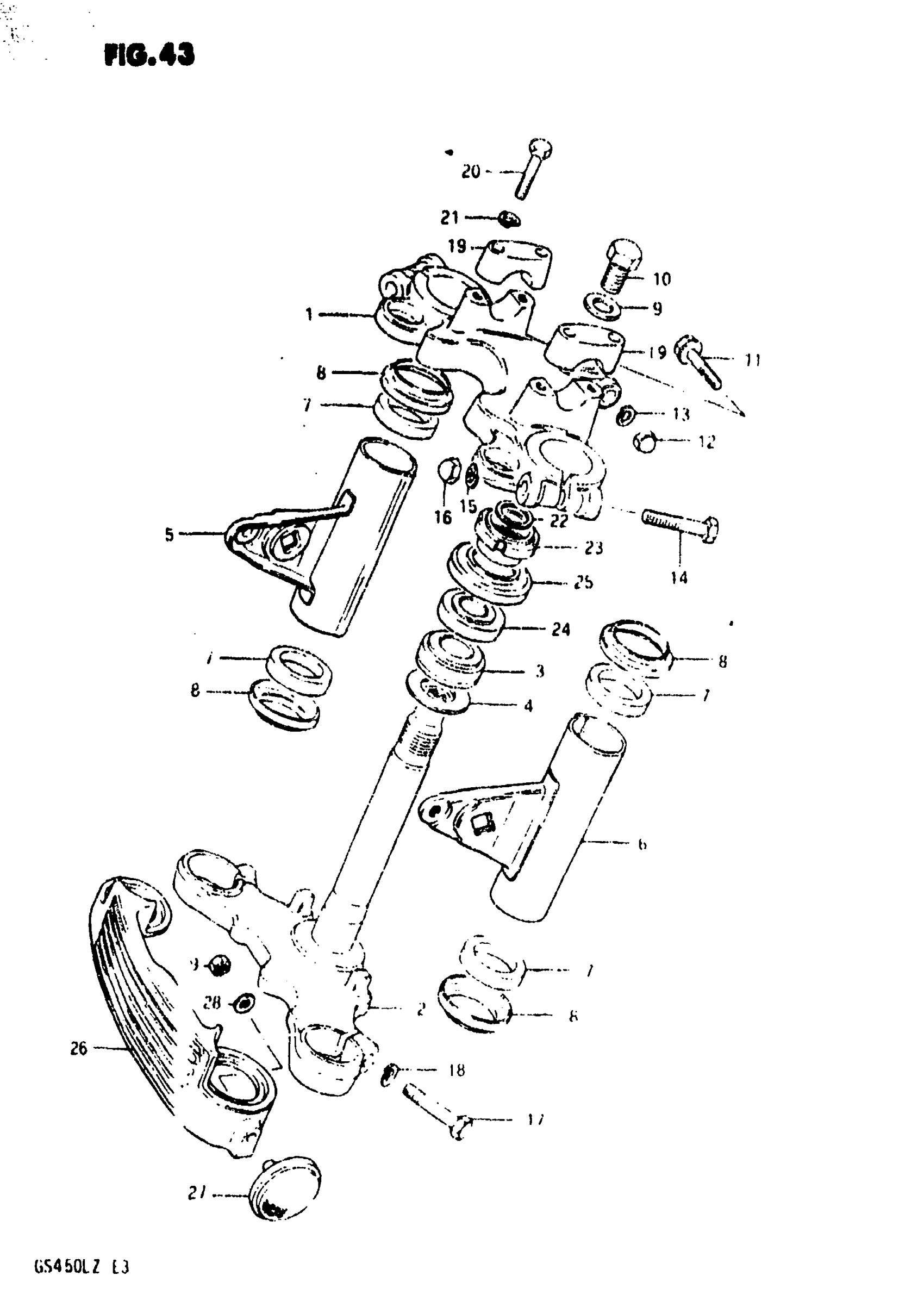

Find the part on the Steering Stem diagram for your 1982 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS450L Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING STEM HEAD

51311-44110-291

1
Out of stock

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-44840.

51400-44851

1
Out of stock

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 51530-44210.

51500-44830

1
Out of stock

6

BRACKET, HEADLAMP LH

51540-44210

1
Out of stock

7

CUSHION, HEADLAMP BRACKET

51556-44100

4
Out of stock

8

CAP

51555-44100

4
Out of stock

9

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

1
Out of stock

10

BOLT

09104-12013

1
Out of stock

11

BOLT, LH This part replaces 01527-08507.

01550-08507

1
Out of stock

12

NUT This part replaces 08313-11085.

08313-1008B

1
Out of stock

13

1

$1.99

In stock

14

BOLT This part replaces 01517-10558.

01550-10557

2
Out of stock

15

2

$2.02

In stock

16

NUT

09145-10002

2
Out of stock

17

BOLT This part replaces 01107-10408.

01500-10407

2
Out of stock

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

19

CLAMP, HANDLEBAR UPPER

56211-27200-291

2
Out of stock

20

BOLT

01204-08357

4
Out of stock

21

4

$2.28

In stock

22

WASHER

09160-18002

1
Out of stock

23

NUT, STEERING STEM

51631-34200

1
Out of stock

24

BEARING, UPPER

09265-25008

1
Out of stock

25

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

26

COVER, FRONT FORK

51871-44200

1
Out of stock

27

REFLEX REFLECTOR, FRONT

35950-49080

2
Out of stock

28

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

29

NUT This part replaces 08310-11058.

08310-00057

2
Out of stock
