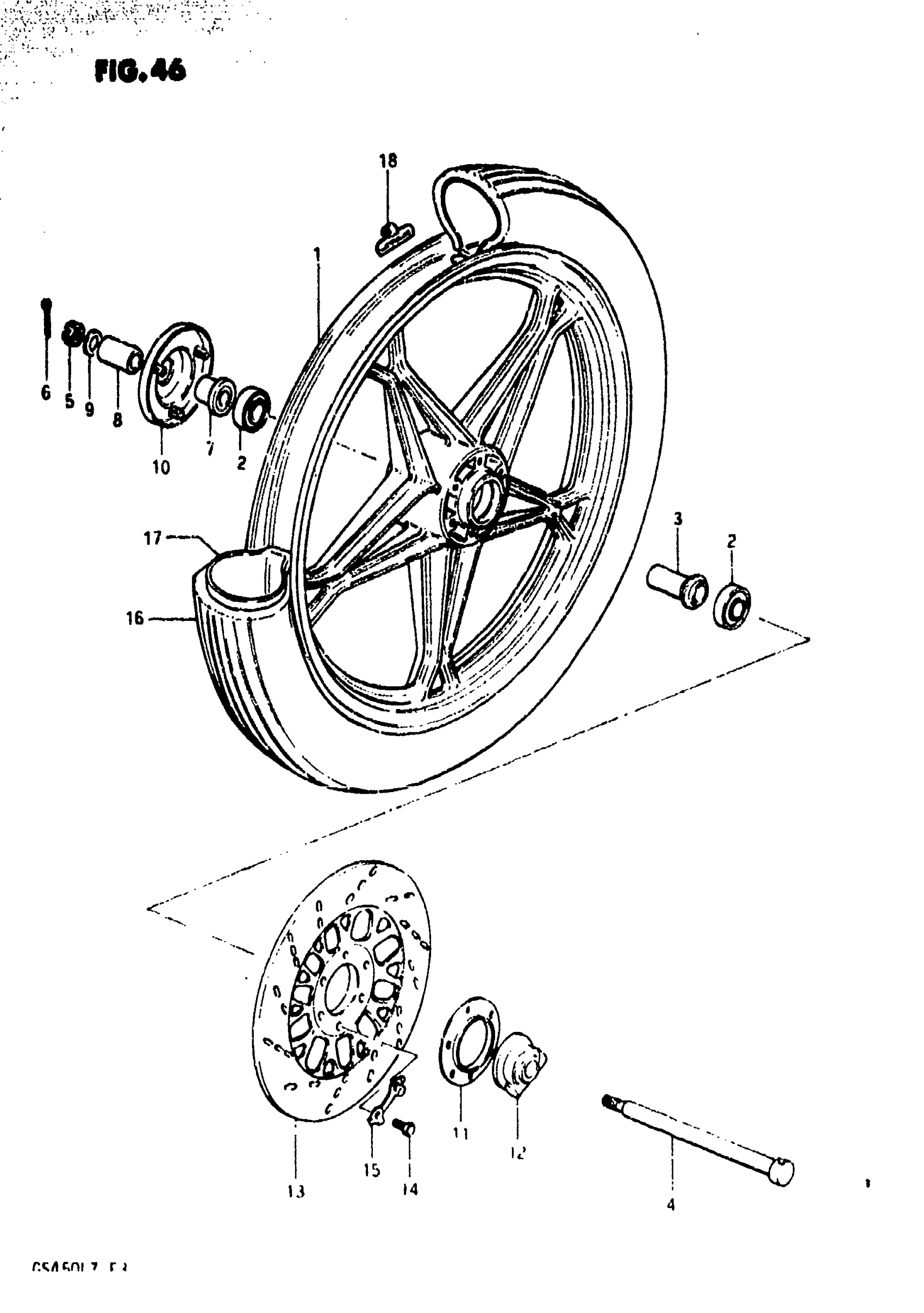

Suzuki GS450L (1982) FRONT WHEEL (MODEL Z) Diagram

#

Description
Price

1

WHEEL (BLACK)

54111-45300-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$21.14

3

SPACER

54730-18400

$23.08

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.50

6

PIN This part replaces 04111-30308.

04111-3030A

$1.41

7

SPACER, BEARING

54740-18410

$23.08

8

SPACER, AXLE (15X22X30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.94

10

COVER, RH

54871-45000

$10.15

11

DUST SEAL, GEAR BOX

54871-45010

Unavailable

12

BOX ASSY,SPEEDO This part replaces 54600-34001.

54600-08C01

Unavailable

13

DISK, FRONT BRAKE

59221-45250

Unavailable

14

BOLT

09100-08140

$2.08

15

WASHER

09169-08016

$2.38

16

TIRE, FRONT (3.60S19) | IRC

55100-44210

Unavailable

16

TIRE, FRONT (3.60S19) | BS

55100-44230

Unavailable

17

TUBE, INNER FRONT (3.00-18)

55200-44220

Unavailable

18

BALANCER, WHEEL NO.2 | (0~3) This part replaces 55411-45100.

55412-17G00

$5.14

18

BALANCER, NO.2 | (0~3)

55412-45100

Unavailable
