1982 Suzuki GS450L Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

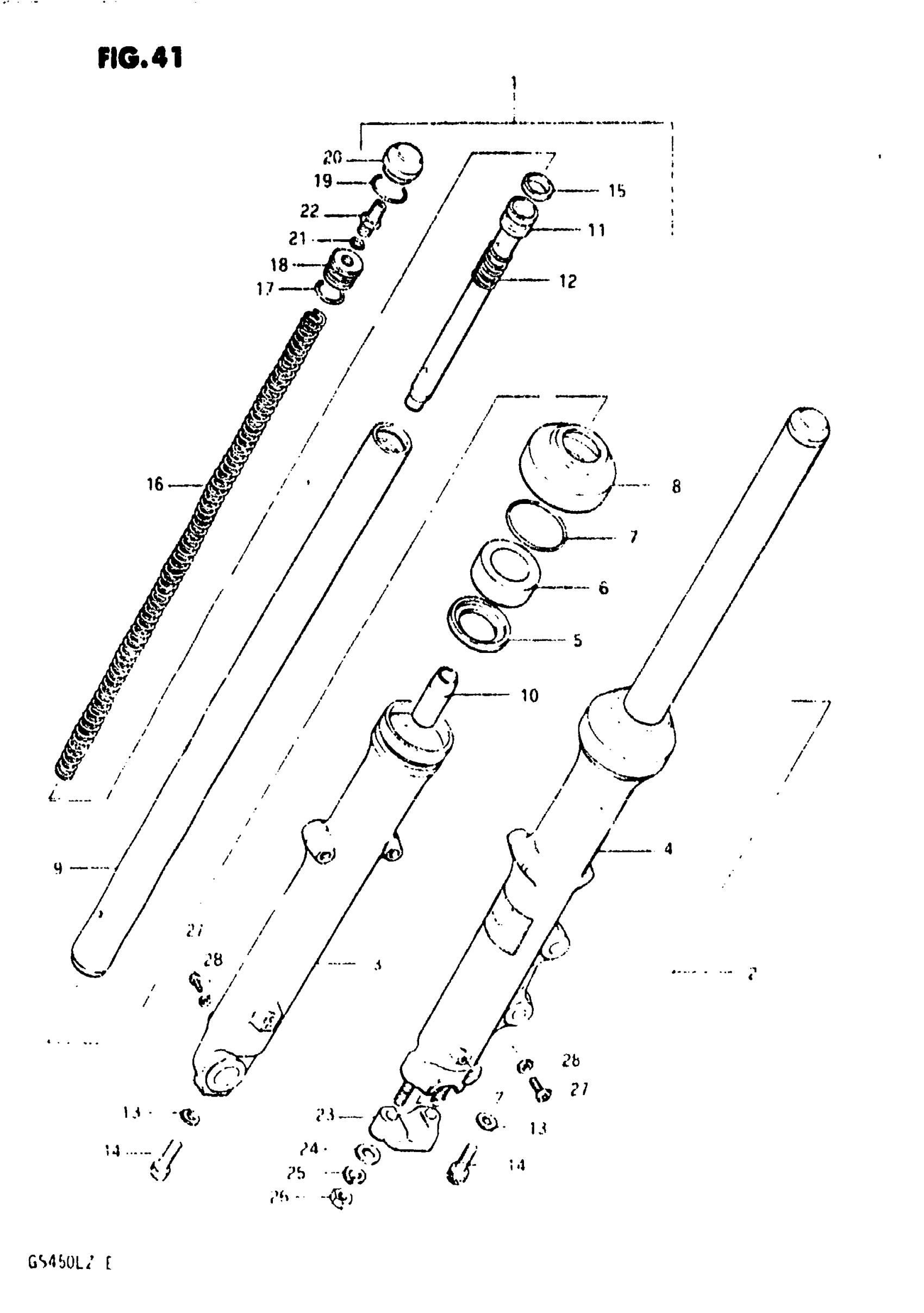

1982 Suzuki GS450L Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUMPER ASSY, RH

51103-44220

1
Out of stock

2

DUMPER ASSY, LH | Includes Item(s) 3 - 28

51104-44220

1
Out of stock

3

OUTER TUBE, RH

51130-44310

1
Out of stock

4

OUTER TUBE, LH

51140-44310

1
Out of stock

5

SPACER, SEAL

51168-44030

2
Out of stock

6

OIL SEAL This part replaces 51153-37310.

51153-02B00

2
Out of stock

7

RING, OIL SEAL STOPPER This part replaces 51156-11420.

51156-02B00

2
Out of stock

8

DUST SEAL

51571-37310

2
Out of stock

9

INNER TUBE

51110-44211

2
Out of stock

10

.PIECE, OIL LOCK

51195-48000

2
Out of stock

11

CYLINDER This part replaces 51146-44731.

51146-38300

2
Out of stock

12

SPRING, REBOUND

51177-36030

2
Out of stock

13

O RING This part replaces 51148-31030.

51148-36011

2
Out of stock

14

BOLT

51147-48130

2
Out of stock

15

RING, PISTON

51196-33130

2
Out of stock

16

SPRING

51171-44220

2
Out of stock

17

O RING

51181-33131

2
Out of stock

18

SEAT SPRING

51172-44170

2
Out of stock

19

RING STOPPER

51169-48500

2
Out of stock

20

CAP

51189-44170

2
Out of stock

21

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

2
Out of stock

22

VALVE, AIR

51293-45440

2
Out of stock

23

HOLDER, AXLE

51132-31030

1
Out of stock

24

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

25

2

$2.28

In stock

26

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

2
Out of stock

27

2

$1.67

In stock

28

GASKET

51183-33030

2
Out of stock
