1982 Suzuki GS450L Front Wheel (Model T Diagram

← All diagrams

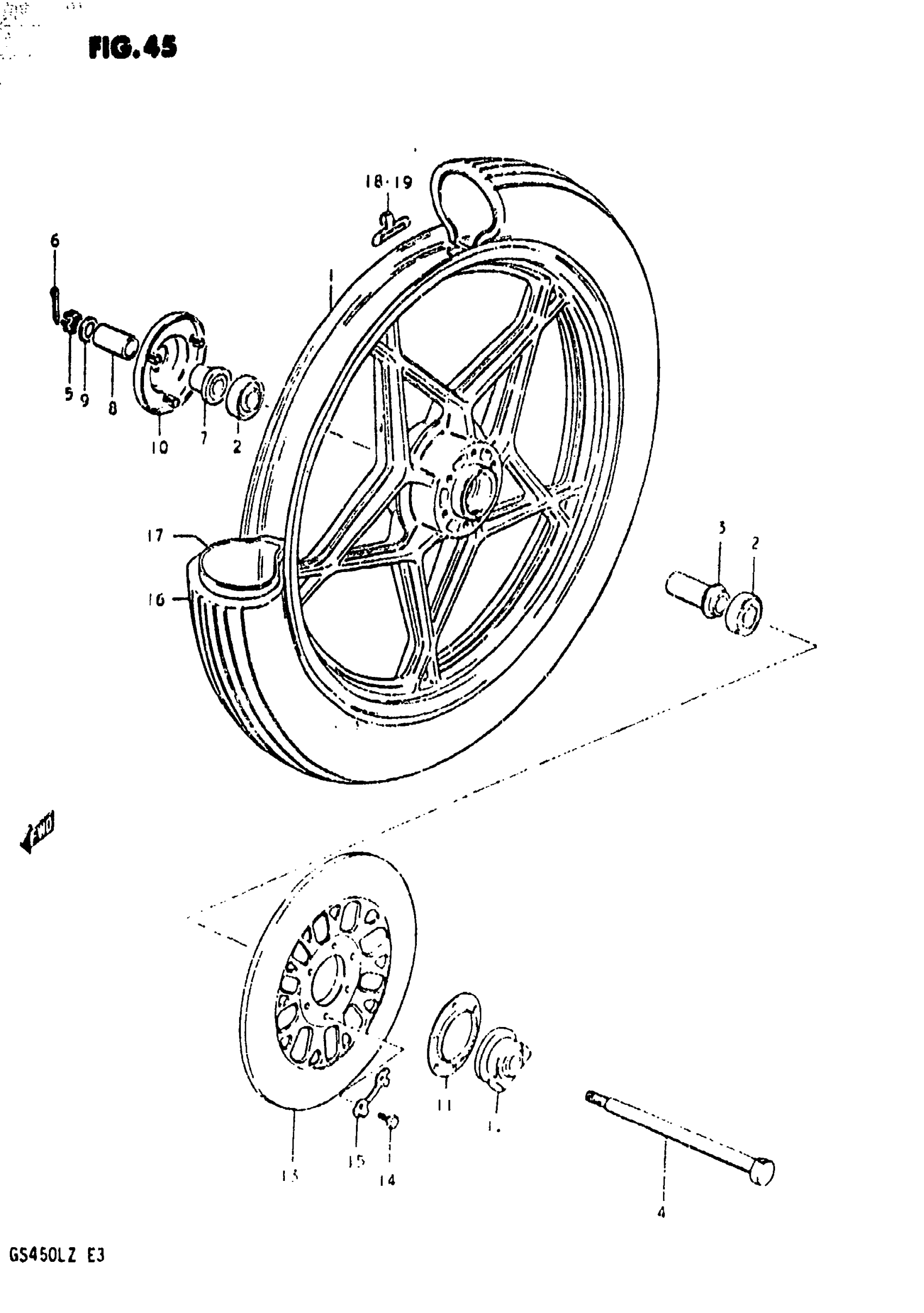

Find the part on the Front Wheel (Model T diagram for your 1982 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS450L Front Wheel (Model T Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 54111-47604-12U.

54111-49350-291

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 54111-47604-291.

54111-49301-291

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-18400

1
Out of stock

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

1
Out of stock

5

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

6

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

7

SPACER, BEARING

54740-18410

1
Out of stock

8

SPACER, AXLE (15X22X30)

09180-15034

1
Out of stock

9

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

10

COVER, RH

54871-45000

1
Out of stock

11

DUST SEAL, GEAR BOX

54871-45010

1
Out of stock

12

BOX ASSY,SPEEDO This part replaces 54600-34001.

54600-08C01

1
Out of stock

13

DISK, FRONT BRAKE

59211-45200

1
Out of stock

14

BOLT

09100-08140

6
Out of stock

15

WASHER

09169-08016

3
Out of stock

16

TIRE, FRONT (3.60S19) | IRC

55100-44210

1
Out of stock

16

TIRE, FRONT (3.60S19) | BS

55100-44230

1
Out of stock

17

TUBE, INNER FRONT (3.00-18)

55200-44220

1
Out of stock

18

BALANCER | (0~2)

55411-47001

1
Out of stock

19

BALANCER | (0~2)

55412-47001

1
Out of stock
