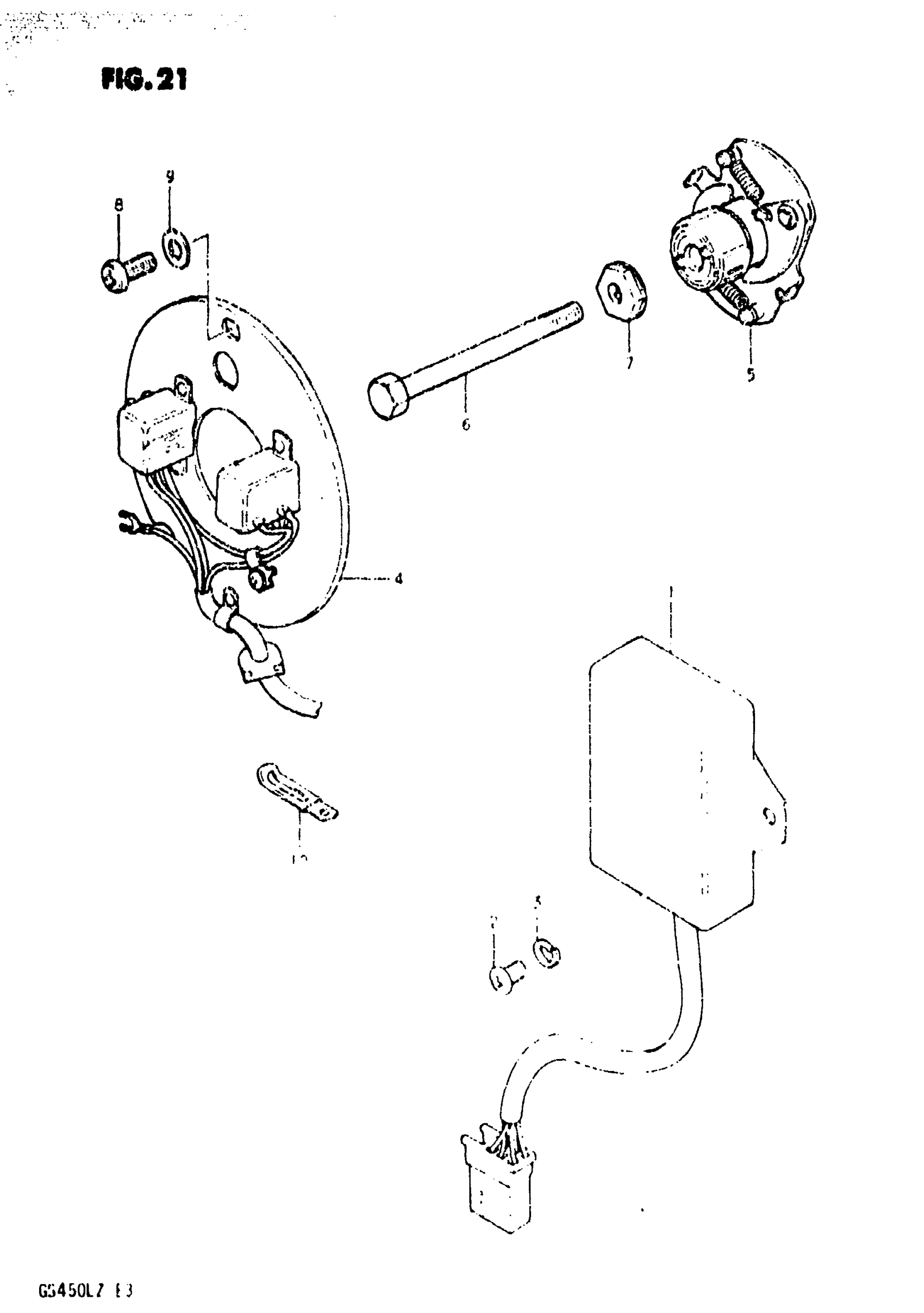

Suzuki GS450L (1982) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITION UNIT

32900-47020

Unavailable

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

4

GENERATOR ASSY, This part replaces 33110-44120.

33110-44X50

Unavailable

5

GOVERNOR ASSY, ADVANCE

33120-44120

Unavailable

6

BOLT (6X60) This part replaces 01107-06608.

09103-06064

$2.21

7

WASHER

33465-44100

Unavailable

8

SCREW

09125-05024

$1.87

9

WASHER This part replaces 09160-05027.

08322-01057

$1.93

10

CLAMP This part replaces 09404-06401.

09404-06039

$1.79
